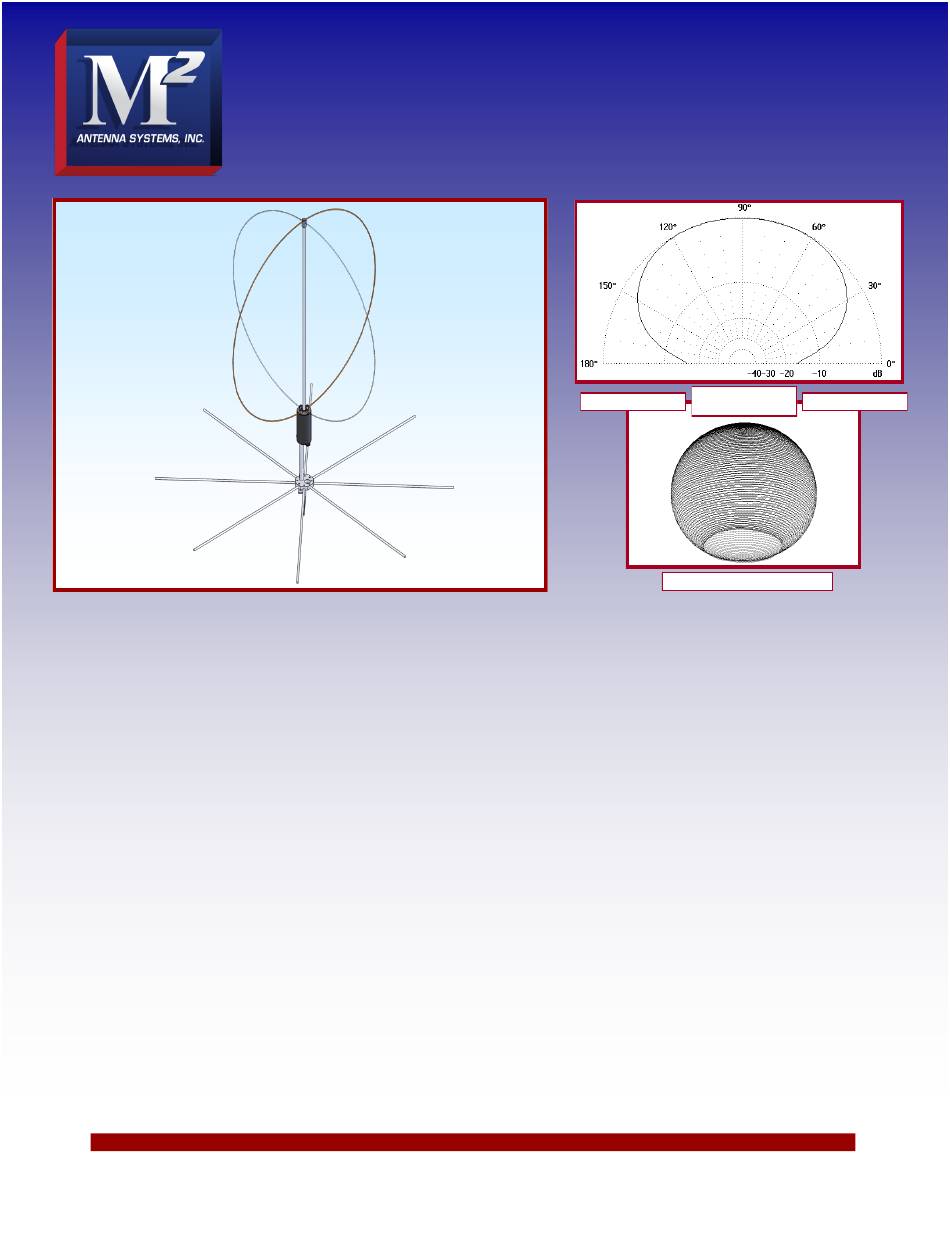

M2 Antenna Systems EB-144/RK2M Manual

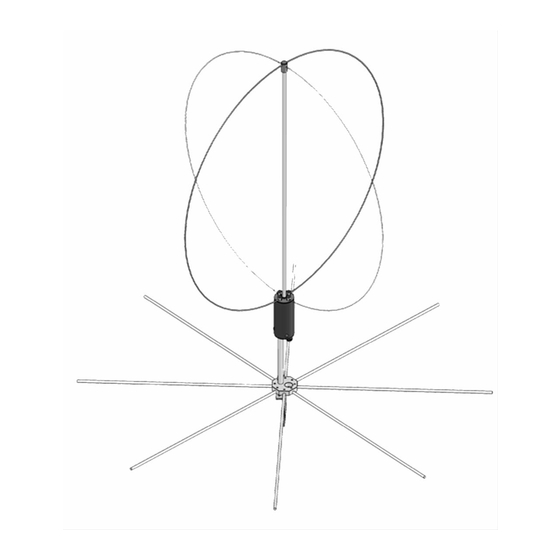

Shown with RK-2M
Reflector Kit

SPECIFICATIONS:

Model ........................................ EB-144/RK2M
Frequency Range ....................... 135 To 150 MHz
Gain, Overhead 90° ................... 5.5 dBic Typical
Impedance ................................. 50 OHMS
VSWR ........................................ < 2.0:1
VSWR ........................................ 1.2:1 @ 144 -148 MHz
Pattern. ....................................... Omni Directional
Polarity ....................................... RH Circular Overhead
Polarity ....................................... Horizontal @ Horizon

FEATURES:

The EB-144 EGGBEATER offers exciting new performance characteristics for both fixed and mobile operations.
The EGGBEATER produces smooth omnidirectional HORIZONTAL polarity at the horizon. Above the horizon, the pattern
transforms to RIGHT HAND CIRCULAR, making it a natural for OSCAR satellite use. By spacing the EGGBEATER 1/8
wave above a metal surface or adding the RK-2M Reflector kit, now standard, for base installations, the circular lobe in-
creases by 6 dB, producing a hemispherical pattern. No rotation or steering is required. For terrestrial mobile, base, net
control, contest or field day operation, increasing the distance above ground or over a metallic surface improves the hori-
zontal radiation by 6 dB. This produces instantaneous communications in all directions. Hams with little room or budget
for larger antennas will experience a new standard of performance with the EB-144/RK2M.
M2 Antenna Systems, Inc.
Model No: EB-144/RK2M
Eggbeater Satellite Antenna
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2018 M2 Antenna Systems Incoporated
Peak= 5.62 dBi
Power Handling .......................... 500W Max
Mounting .................................... 2" Nom.
Connector................................... SO-239
Size ............................................ 34" H x 28" W
Wind Survival ............................. 100 MPH
Weight / Ship Wt. ....................... 4 Lbs. / 5 Lbs.
Elevation
Total Field
Circular Omni Antenna
4/6/2018
REV 4
