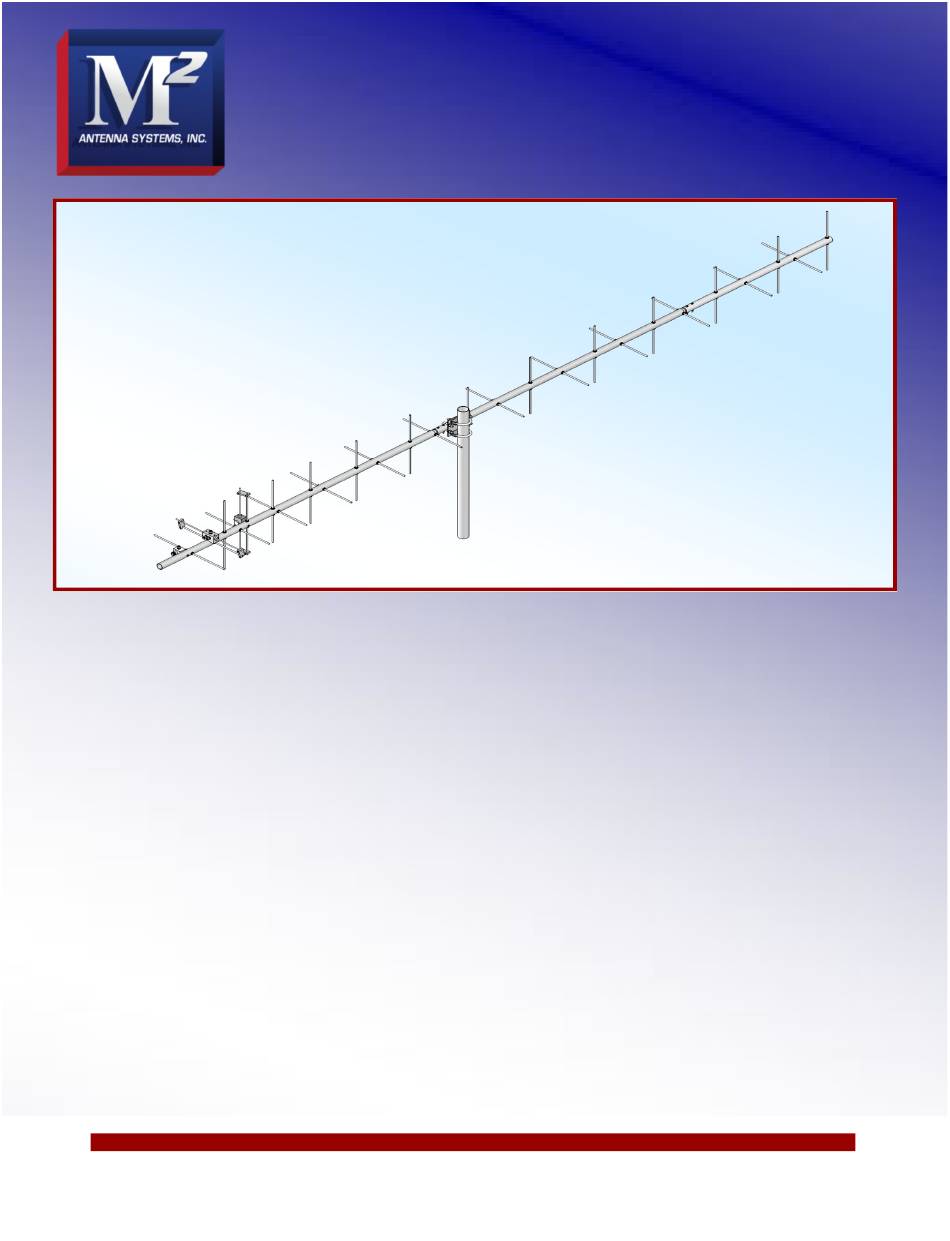

M2 Antenna Systems 303CP26 Quick Start Manual

SPECIFICATIONS:

Model ......................................... 303CP26
Frequency Range ....................... 298 To 308 MHz
*Gain .......................................... 15.14 dBic
Front to back .............................. 20 dB Typical
Beamwidth ............................... 30° Circular
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.5:1
Input Connector .......................... "N" Female

FEATURES:

The 303CP26 is a practical sized, yet high performance circular polarized antenna with a remarkably clean pattern. The
pattern is important in order to match the antenna's noise temperature with modern low noise preamps. This antenna is
ideal for satellite work but is also excellent for terrestrial uses.
The CNC machined driven element module is O-ring sealed and weather tight for low maintenance and long-term peak
performance. Internal connected are encapsulated in a space-age silicone gel that seals out moisture and improves
power handling. The 3/16" 6061-T6 rod elements are centered to minimize interaction and maintain good ellipticity.
Insulators are UV stabilized and locked in place with stainless keepers. Rugged construction, uncompromising
performance for the boom length.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 303CP26
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Power Handling .......................... 1.5 kW
Boom Length / Dia ...................... 140.625" / 1"
Maximum Element Length .......... 20"
Turning Radius: .......................... Call
Stacking Distance ....................... Call
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 0.6 Sq. Ft. / 100MPH
Weight / Ship Wt. ........................ 5 Lbs. / 7 Lbs.
08/24/22
Rev.03
