SPECIFICATIONS:
Model ........................................ EB-310
Frequency Range....................... 225 To 405 MHz
Gain, Overhead 90° ................... 5.5 dBic Typical
Impedance ................................. 50 Ohms
VSWR ........................................ < 2.0:1
Pattern. ....................................... Omni Directional
Polarity ....................................... RH Circular Overhead
Polarity ....................................... Horizontal @ Horizon
FEATURES:
2
The M
EB-310 EGGBEATER antenna offers performance characteristics for specialized fixed and mobile
operations within the 225-405 MHz frequency. The EGGBEATER produces a smooth, horizontally polarized
omnidirectional pattern at the horizon. Above the horizon, the hemispheric pattern transforms to RIGHT HAND
CIRCULAR polarization, making it a natural for aviation, ELINT, MILSATCOM, or other specialized use. No rotation or
steering is required, producing instantaneous communications in all directions. The EGGBEATER's rugged, weatherproof
construction suits mobile and marine applications as well as fixed, land based installations in hostile environments.
Operations with little room or budget for larger antennas will experience a new standard of performance with the EB-310.
M2 Antenna Systems, Inc.
Model No: EB-310

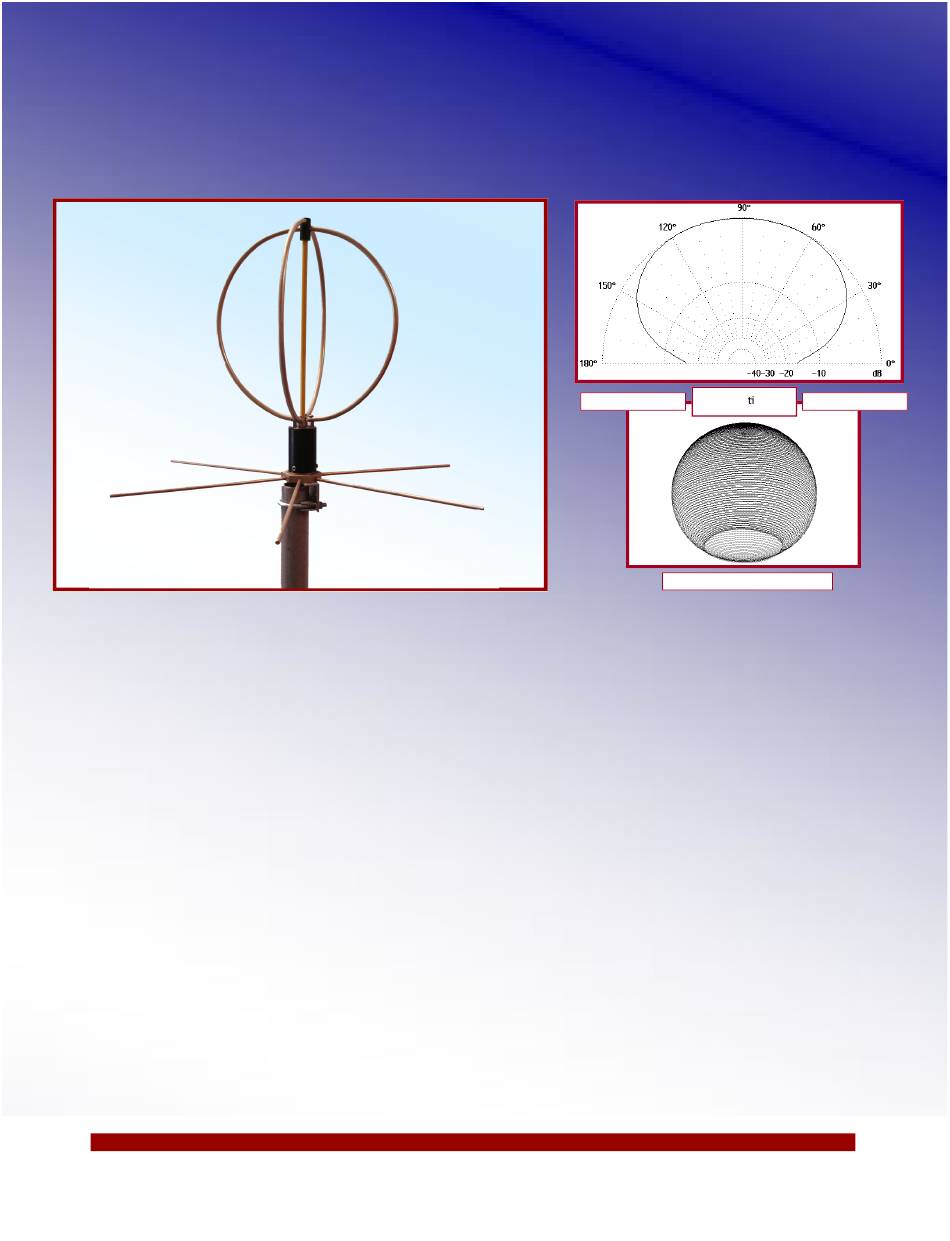

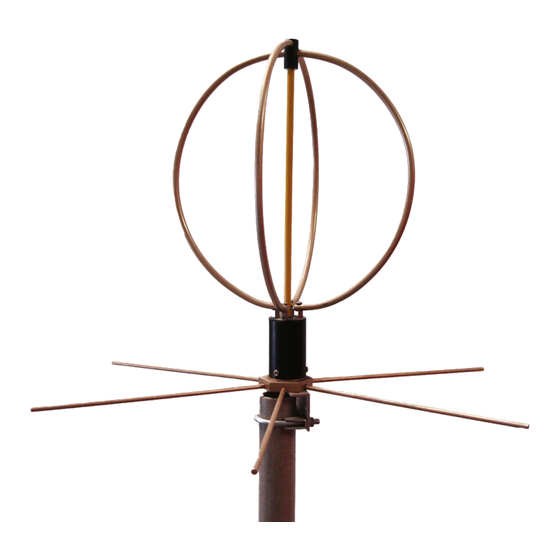

Eggbeater Satellite Antenna
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Peak= 5.62 dBi
Power Handling .......................... 1kW
Mounting .................................... To 3/8-24 Male Thread
Connector................................... "N" Female
Size ............................................ 20" H x 20" W
Wind Survival ............................. 100 MPH
Weight / Ship Wt. ....................... 4 Lbs. / 5 Lbs.
Eleva on
Total Field
Circular Omni Antenna
7/25/12
Rev.01
