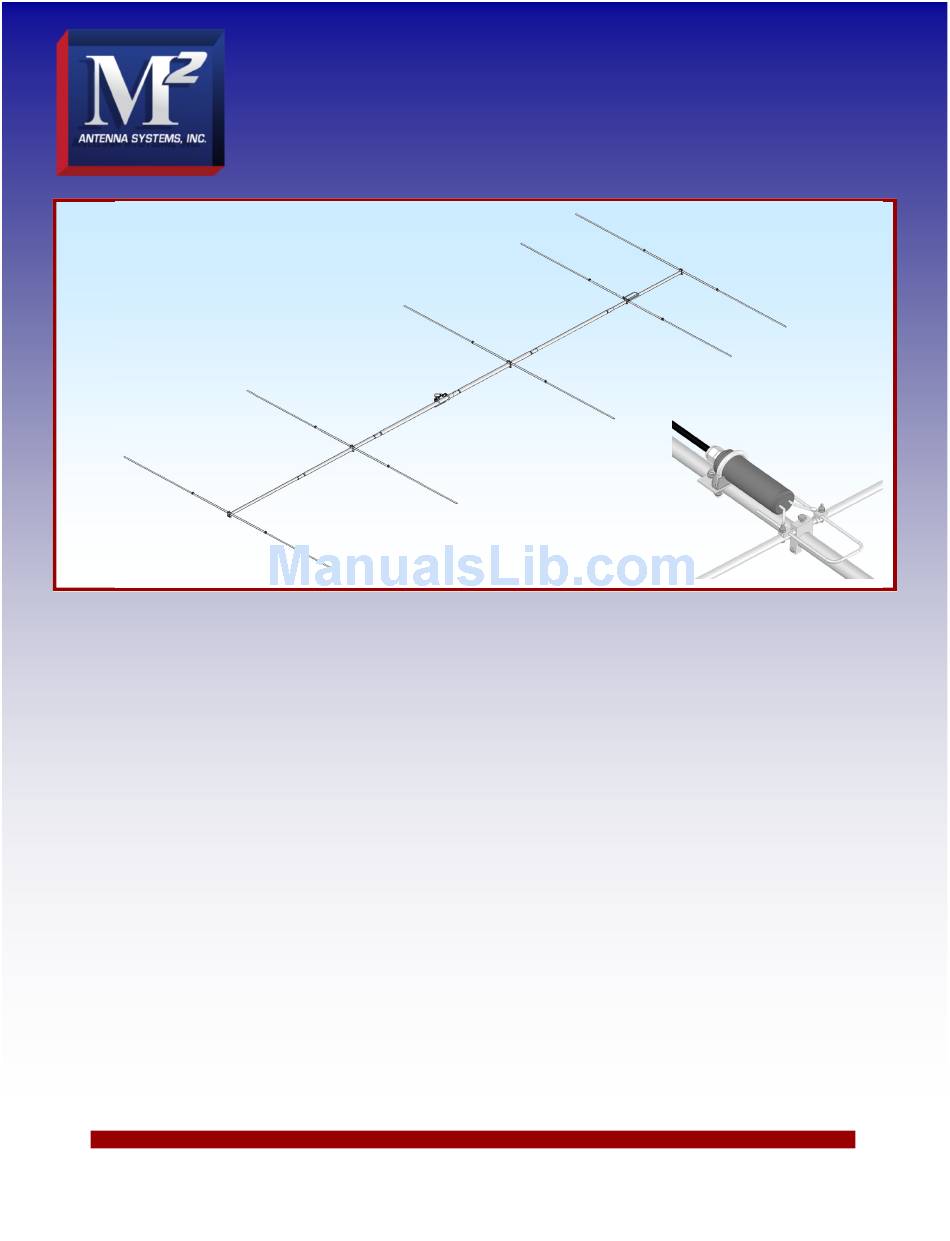

M2 Antenna Systems 6M5XHG Manual

SPECIFICATIONS:

Model ......................................... 6M5XHG
Frequency Range ....................... 50.0 To 50.3 MHz
*Gain, (FS) / Over gnd ............... 12.0 dBi
Front to back .............................. 21 dB Typical
Beamwidth ............................... E=44° H=50°
Feed type ................................... Direct feed
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.2:1 Typical
Input Connector .......................... "N" Female
*Subtract 2.14 from dBi for dBd / FS = Free Space / ** H = High / W = Wide

FEATURES:

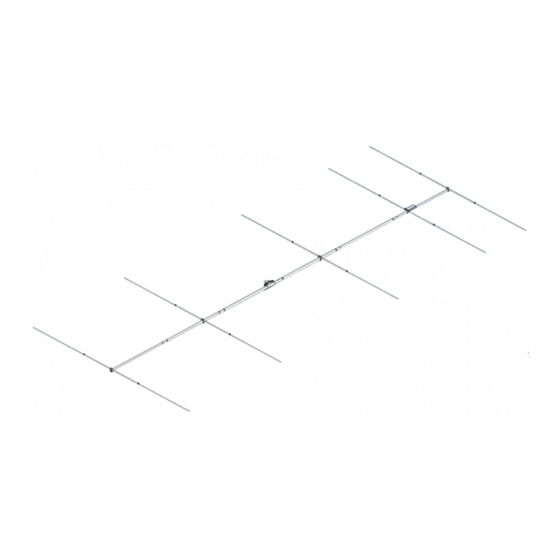

The 6M5XHG is the latest computer optimized version of our popular 6M5X. The 6M5XHG has been re-designed
to use a hairpin type direct feed. We just made a good thing better, maintaining a low wind load and great performance
for its size. The 6M5XHG will compliment the rest of your antenna system and not overload your tower. Quick and easy
to assemble, it is also great for mountain topping, grid expeditions and DXpeditions. The 6M5XHG features machined
aluminum "Slip on" element mounting blocks, guarantees this antenna to stay up for years to come. The 6M5XHG is per-
fect for the Ham trying 6 meters for the first time or the seasoned vet who may stack them for lower angle of radiation or
even some EME use.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 6M5XHG
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2014 M2 Antenna Systems Incorporated
Power Handling .......................... 3 kW, Higher avl.
Boom Length / Dia ...................... 243" / 1", 1-1/4" & 1-1/2"
Maximum Element Length .......... 113"
Turning Radius: .......................... 139"
**Stacking Distance .................... 23' H & 25' W
Mast Size .................................... 2" Nom.
Wind area / Survival ................... 2.2 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 11 Lbs. / 15 Lbs.
12/03/14
Rev.01
