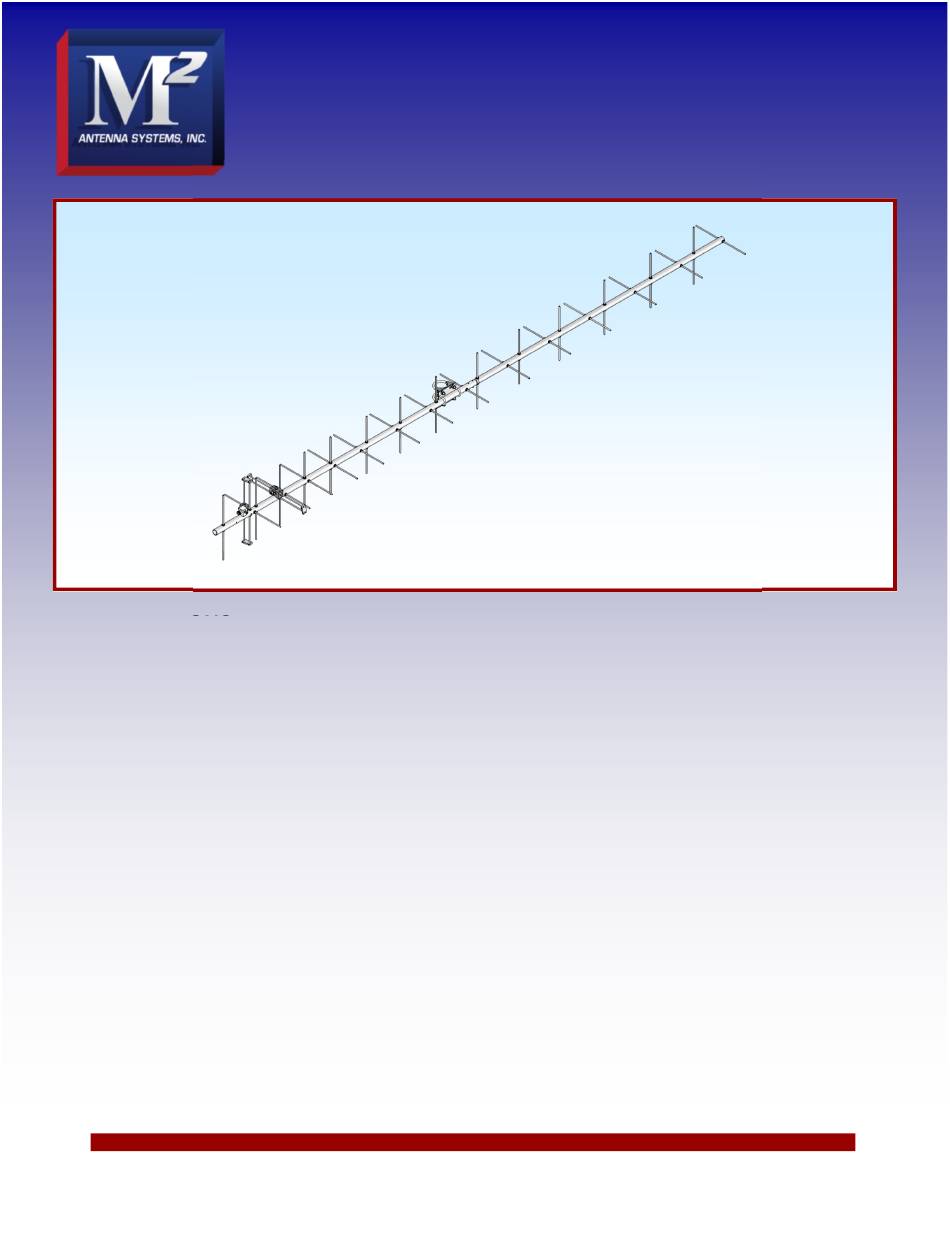

M2 Antenna Systems 436CP30 Assembly Manual

SPECIFICATIONS:
Model ......................................... 436CP30
Frequency Range ....................... 432 To 440 MHz
*Gain .......................................... 15.50 dBic
Front to back .............................. 18 dB Typical
Elipticity ...................................... 1.5 dB Typical
Beamwidth ............................... 30° Circular
Feed type ................................... Folded Dipole
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.6:1 Max
FEATURES:

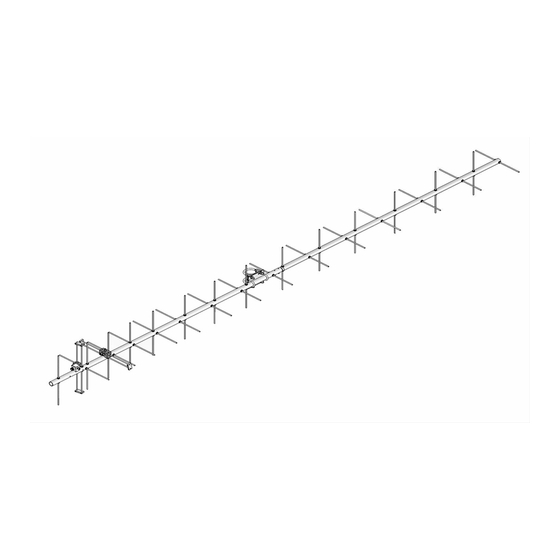

The 436CP30 is a practical sized, yet high performance circular polarized antenna with a remarkably clean pat-
tern. The pattern is important in order to match the antenna's noise temperature with modern low noise preamps. This
antenna is ideal for satellite work but is also excellent for terrestrial uses like ATV, repeater operation, and long haul tropo
DX.
The CNC machined driven element module is O-ring sealed and weather tight for low maintenance and long-term
peak performance. Internal connected are encapsulated in a space-age silicone gel that seals out moisture and improves
power handling. The 3/16" 6061-T6 rod elements are centered to minimize interaction and maintain good ellipticity. Insu-
lators are UV stabilized and locked in place with stainless keepers. Rugged construction, uncompromising performance
for the boom length: that's the M
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 436CP30
*Subtract 2.14 from dBi for dBd
2
436CP30!
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2017 M2 Antenna Systems Incorporated
Input Connector .......................... "N" Female others opt.
Power Handling .......................... 600 Watts
Boom Length / Dia ...................... 117" / 1"
Maximum Element Length .......... 12-7/8"
Turning Radius: .......................... 62-5/8"
Stacking Distance ....................... 51" High & 51" Wide
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 1 Sq. Ft. / 100MPH
Weight / Ship Wt. ........................ 5 Lbs. / 6 Lbs.
2/23/17
Rev.04
