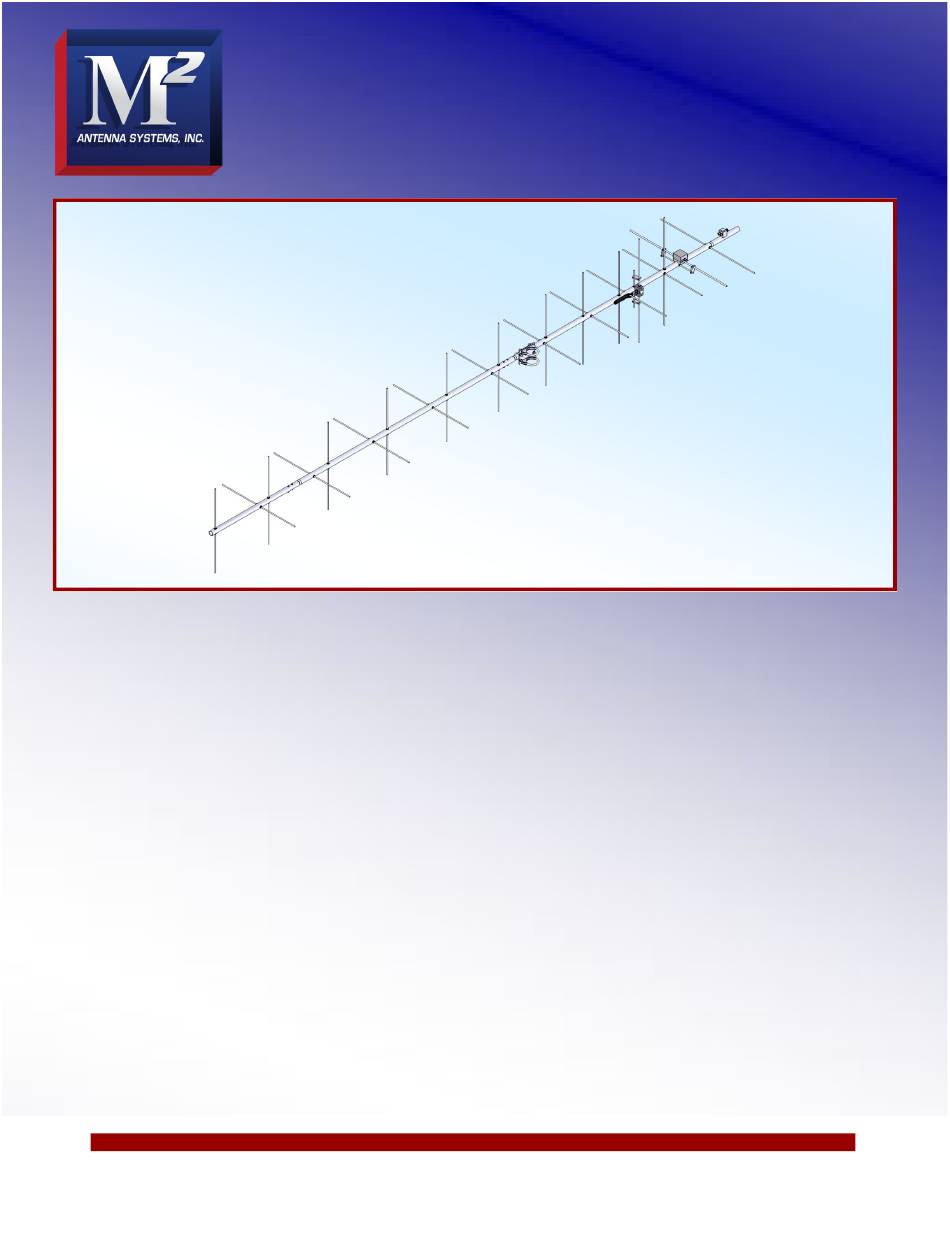

M2 Antenna Systems 393CP18 Quick Start Manual

SPECIFICATIONS:

Model ......................................... 393CP18
Frequency Range ....................... 389-396 MHz
*Gain .......................................... 14.39 dBi
Front to back .............................. 22 dB Typical
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.6:1 Typical
Input Connector .......................... "N" Female
Power Handling .......................... 1 kW

FEATURES:

The 393CP18 is high performance circular polarized antenna with a remarkably clean pattern. The pattern is important in
order to match the antenna's noise temperature with modern low noise preamps. This antenna is ideal for satellite work
but is also excellent for terrestrial uses like ATV, repeater operation, and long haul tropo DX.
The CNC machined driven element module is O-ring sealed and weather tight for low maintenance and long-term peak
performance. Internal connections are encapsulated in a space-age silicone gel that seals out moisture and improves
power handling. The 3/16" 6061-T6 rod elements are centered to minimize interaction and maintain good ellipticity.
Insulators are UV stabilized and locked in place with stainless keepers. Rugged construction, uncompromising
performance for the boom length: that's the M
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 393CP18
*Subtract 2.14 from dBi for dBd
2
393CP18 !
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Boom Length / Dia ...................... 80" / 1"
Maximum Element Length .......... 16"
Turning Radius: .......................... Call
Stacking Distance ....................... Call
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 1.0 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 7 Lbs. / 9 Lbs.
8/17/22
Rev.00
