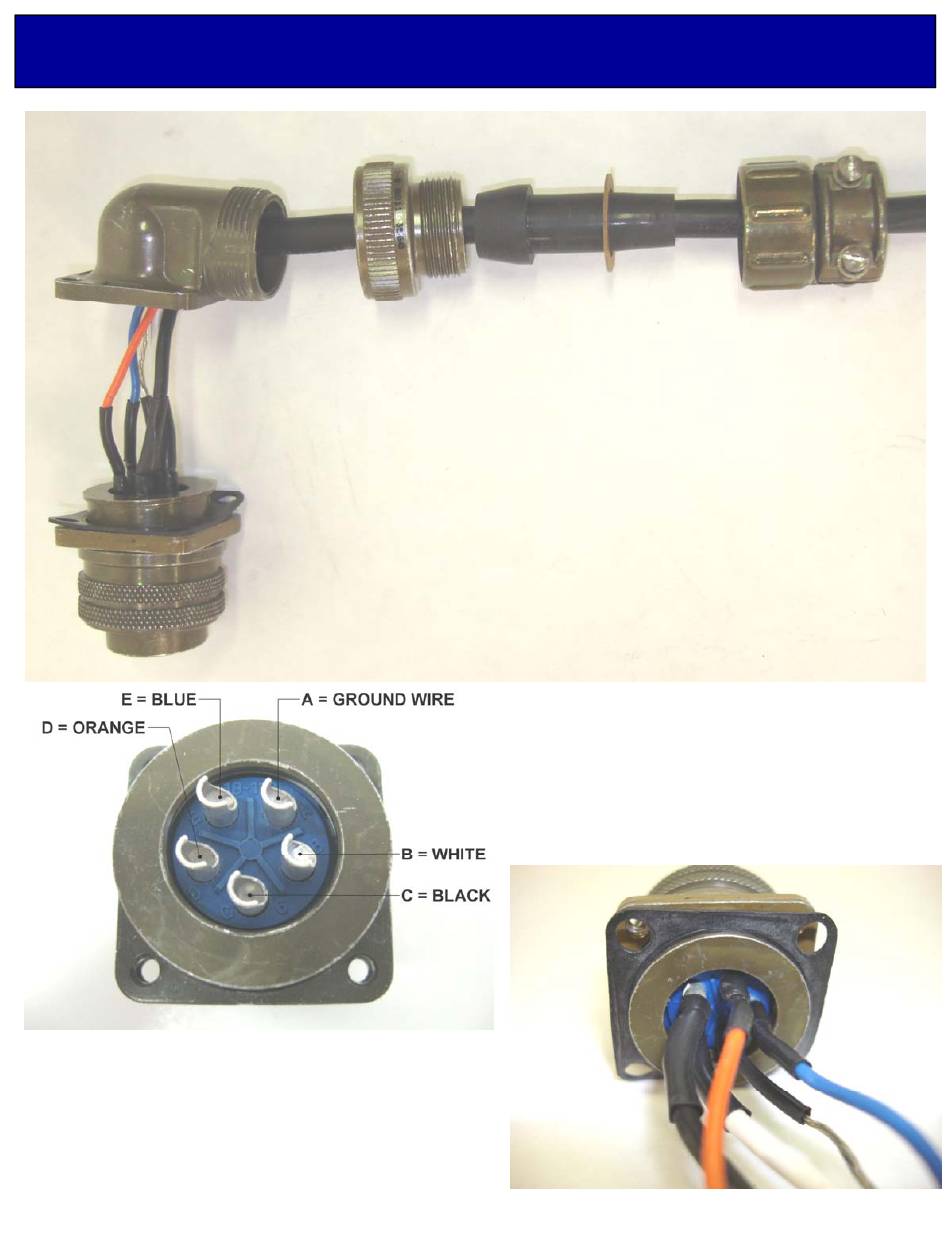

5 PIN CONNECTOR WIRE DETAIL
Note: Connector picture taken from back shell
of right angle connector.
2. Match colors and letters and solder wires to con-
nector pins as shown above. Use supplied shrink
tubing (3/4" per wire) to cover solder connections.
1. Route cable thru connector assembly as
shown above.
