M2 Antenna Systems SYSTEM SAMPLE 3 Assembly Manual page 4

ASSEMBLY MANUAL
3

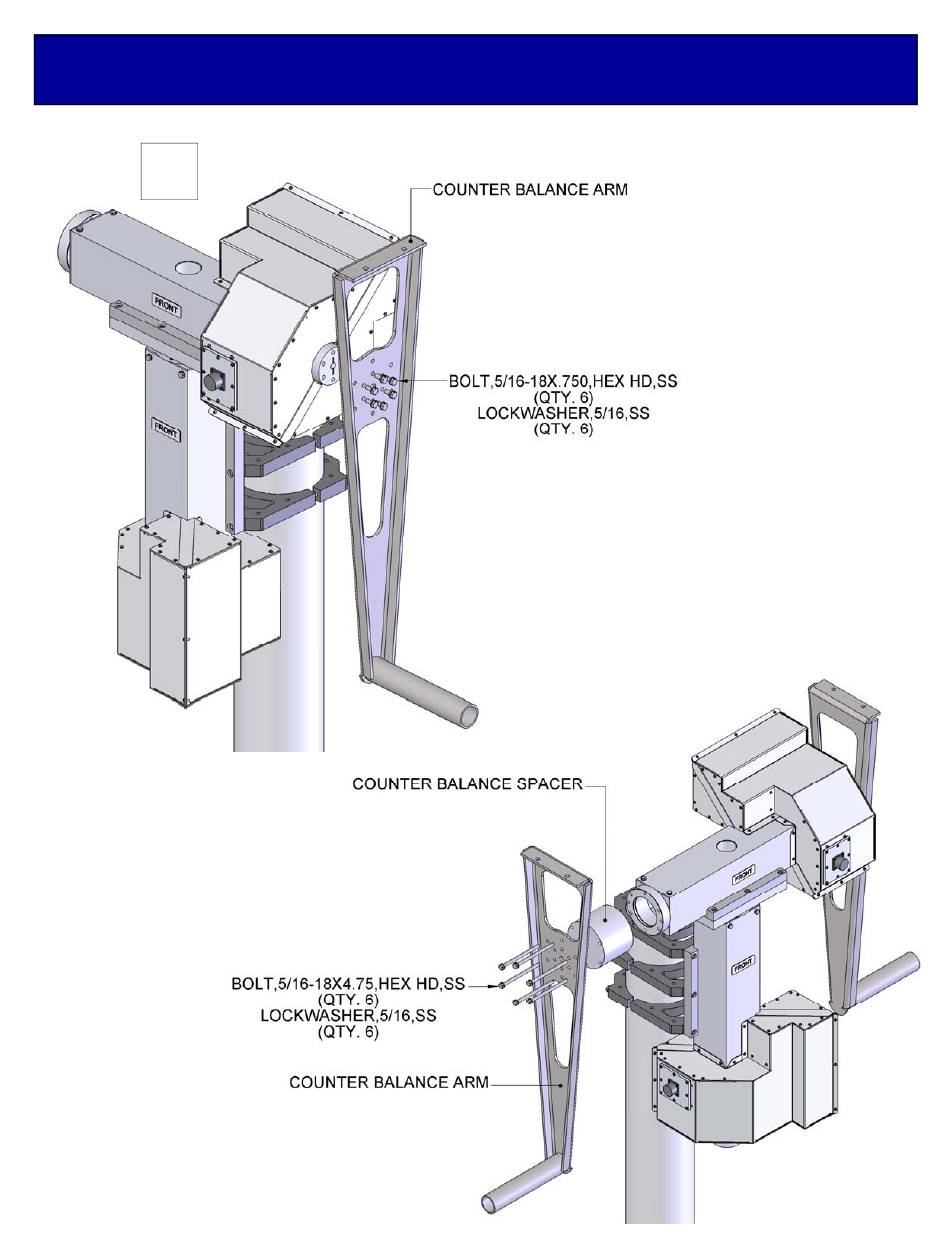

Note: With counter balance arm in
this position, the dish would be
mounted at 90 degrees, pointing
straight up.
1. Add C-Balance Arm, align with all six holes and
insert hardware as shown above.
2. Add C-Balance Spacer. Make sure all six bolt
holes line-up. Hold C-Balance Spacer in place.
3. Add C-Balance Arm, align with all six holes and
insert hardware as shown above. (Note: Both
arms must be parallel to each other).
4. Check all hardware for tightness and inspect
your work.
