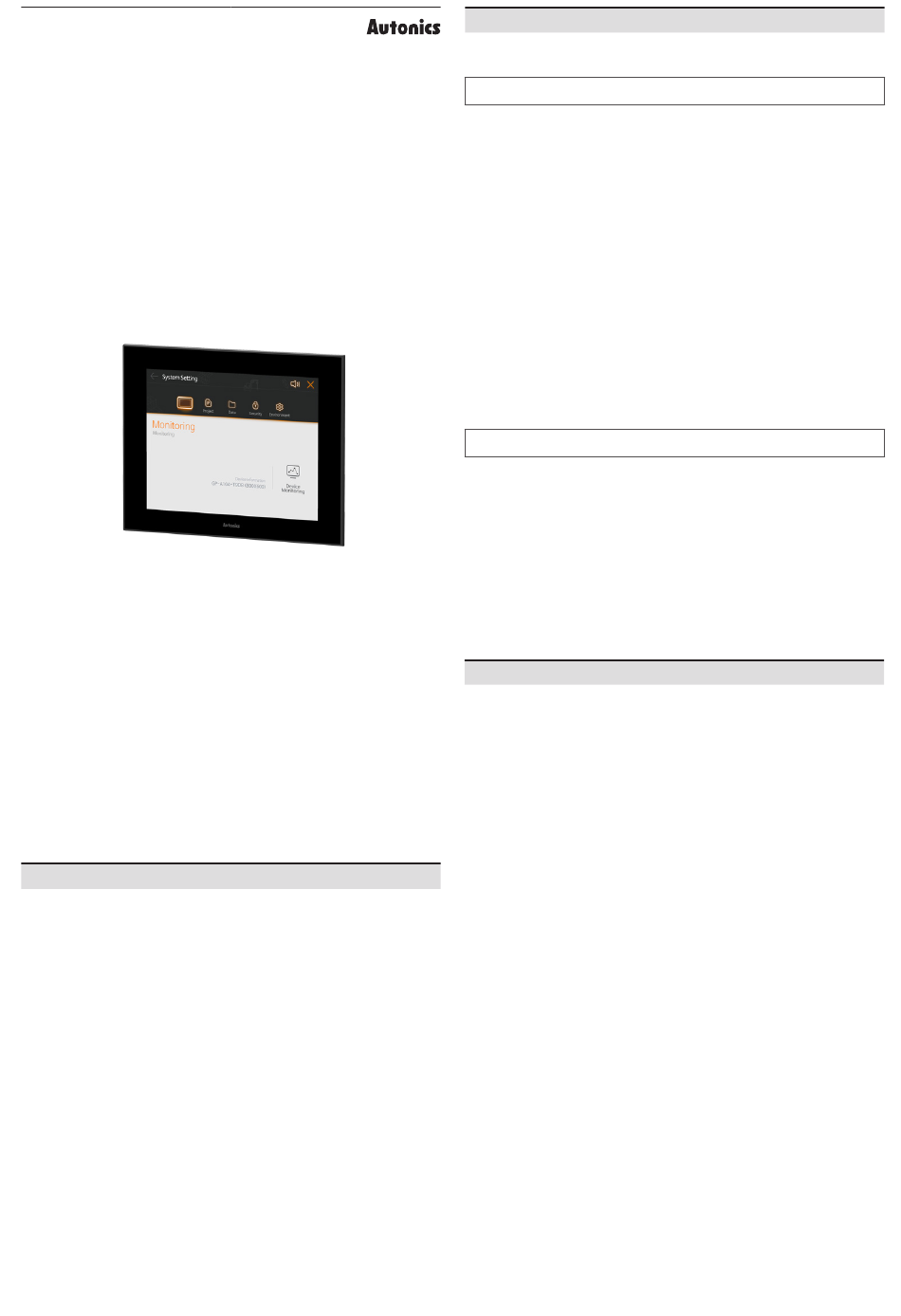

Autonics GP-A Series Product Manual

TCD210069AC

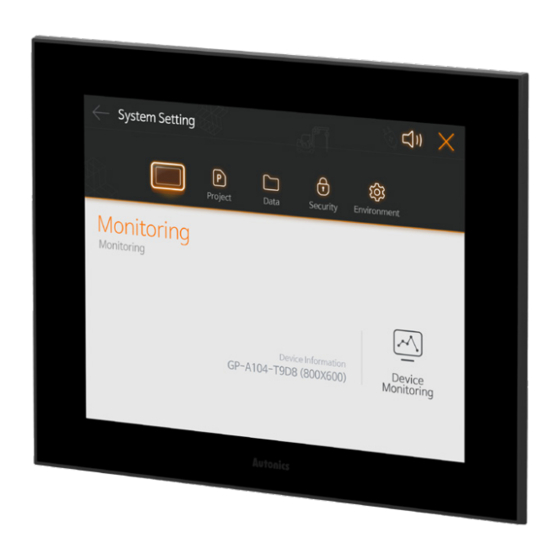

Color LCD Graphic Panel
GP-A Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Equipped with TFT LCD for realizing True color
• Horizontal/Vertical installation according to environment
• Available to monitor device of the connected controllers even without user screen data
• Using user screen drawing program 'atDesigner'
: More variety functions, objects and library image
: Intuitive user interface
: Multilingual table function: switching language of user screen by touching a button
• Various communication interface: RS232C, RS422, Ethernet, CAN
ᜢ ᜣ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus,
safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas, high
humidity, direct sunlight, radiant heat, vibration, impact, or salinity may be
present.
Failure to follow this instruction may result in explosion or fire.
03. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or shortening the life cycle of the product.
04. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire.
05. Check 'Power Wiring' and 'Serial Interface' before wiring.
Failure to follow this instruction may result in fire.
06. In preparation for product damage, communication error, or malfunction, install
external limit switch, emergency stop switch, or other protection circuit.
Failure to follow this instruction may result in personal injury, economic loss or fire.
07. Since Lithium battery is embedded in the product, do not disassemble or burn the
unit.
Failure to follow this instruction may result in fire.
08. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
09. Please contact to us for battery replacement.
Using an unauthentic battery may result in fire or product damage.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in electric shock or fire.
02. When connecting the power input, use AWG 23 cable or over and tighten the
terminal screw with a tightening torque of 0.5 to 0.8 N . m.
Failure to follow this instruction may result in fire or malfunction due to contact failure.
03. Keep the product away from metal chip, dust, and wire residue which flow into the
unit.
Failure to follow this instruction may result in fire or product damage.
04. Do not touch the front LCD screen over 2 points at the same time.
Failure to follow this instruction may result in malfunction.
05. Do not put any heavy object on the front screen.
Failure to follow this instruction may result in malfunction due to deformation of LCD and
touch panel.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected accidents.
• Power supply should be insulated and limited voltage/current or Class 2, SELV power supply
device.
• Install a power switch or circuit breaker in the easily accessible place for supplying or
disconnecting the power.
• Operate the product after supplying power to the product, input/output equipment, and
load. If operate product before supplying power, it may result in output error or malfunction.
• Use a USB cable within 2 m.
• Keep away from high voltage lines or power lines to prevent inductive noise. Do not use near
the equipment which generates strong magnetic force or high frequency noise.
• Make a required space around the unit for radiation of heat, and do not block ventilation
openings.
• Do not push the touch panel with a hard and sharp object or push the panel with excessive
force. It may result in fire or malfunction.
• When skin is smeared with liquid crystal from the broken LCD, rinse with running water for
over 15 minutes. If it gets into the eyes, rinse eyes with running water for over 15 minutes and
contact a doctor.
