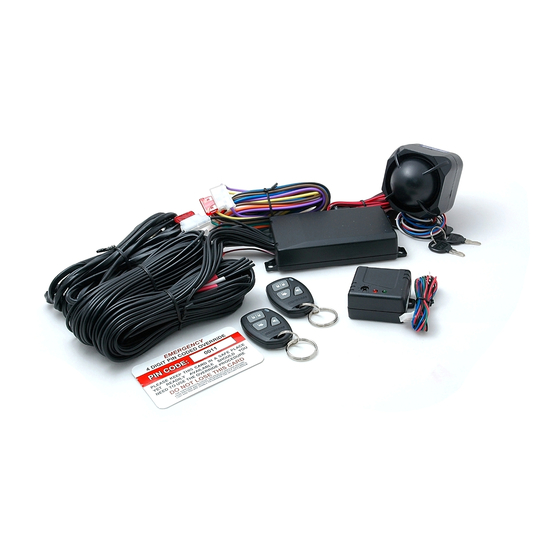

Mongoose M80II Upgrade Manual

2in1 vehicle security system
Hide thumbs
Table of Contents

Advertisement

Quick Links

'Upgrade'
M80
II
2
1
in
Vehicle Security System
When Used with Factory Remote Controls
3
YEAR PRODUCT WARRANTY
M80II - 4 Star Rated
M80GII - 5 Star Rated
These products should be installed according to the requirements of the
AS/NZS3749.2 Installation Standard.
Installation should only be carried out by suitably qualified persons.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M80II Upgrade and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mongoose M80II Upgrade

Summary of Contents for Mongoose M80II Upgrade

  • Page 1 ‘Upgrade’ Vehicle Security System When Used with Factory Remote Controls YEAR PRODUCT WARRANTY M80II - 4 Star Rated M80GII - 5 Star Rated These products should be installed according to the requirements of the AS/NZS3749.2 Installation Standard. Installation should only be carried out by suitably qualified persons.
  • Page 3 As your security system has been installed as an ‘upgrade’, the M80II is only operated from the vehicles factory remote controls. The Mongoose remotes are used for programming security features on or off. Please keep them in a safe place, Should you lose your factory remotes, this security system can be re-configured to operate from the Mongoose remotes –...
  • Page 4 ARMING Exit the vehicle and ensure all doors, bonnet & boot are closed. Press the lock button on your vehicles remote control or the ‘lock’ method if by touch. The siren will chirp once and the lights will flash once to indicate that the system is fully armed. The alarm’s dash board warning light (LED) will slow flash to indicate the system is armed.

  • Page 5: Security Protection

    OPEN CIRCUIT BYPASS If any door, the bonnet or boot is left open when you arm the system, the siren will chirp once to signify the system is armed and then chirp again to inform you that something is still open. The dash mounted LED will flash a code for 30 seconds informing you what is open.
  • Page 6 2 STAGE IMPACT SENSOR This sensor is designed to detect impact to the vehicle such as to the bodywork or glass. It is not triggered by normal wind or rocking motions. If the sensor detects a light impact, the siren will sound a few warning chirps (max’ 3 triggers –...

  • Page 7: Intrusion Alert

    MICROWAVE SENSOR (optional accessory) The microwave sensor is designed to trigger the alarm when a microwave field registers physical movement. Two fields are generated, one outside the vehicle to give perimeter protection and one inside to give interior protection. Intrusion into the outer perimeter area chirps the siren as a warning, whilst intrusion into the interior fully sounds the siren.

  • Page 8: Automatic Re-Set

    AUTOMATIC RE-SET Upon an intrusion (ie. door opened and closed), the siren will sound for 30 seconds, after which it will stop and reset to the armed position. It will then re-trigger on the next intrusion. If a door is left open, the siren will sound for 3 x 30 seconds and then that individual circuit will be bypassed to avoid unnecessary noise.

  • Page 9: Chirp Confirmation & Codes

    VEHICLE LIGHTS FLASHING (FUSE PROTECTED) When the siren sounds, the lights flash simultaneously. The lights may be indicators or parking lamps depending on the type of vehicle. The lights will also flash on arming and disarming the system. These may be programmed off if the vehicle flashes the lights as confirmation of locking and unlocking.
  • Page 10 EMERGENCY – 4 DIGIT PIN CODED EMERGENCY OVERRIDE 4 DIGIT PIN CODE OVERRIDE This security system can be disarmed by entering your PIN CODE: unique 4 digit PIN code issued with this product. PLEASE KEEP THIS CARD IN A SAFE PLACE BUT BE READILY AVAILABLE SHOULD YOU KEEP THE CARD IN A SAFE PLACE –...

  • Page 11: Programmable Features

    PROGRAMMABLE FEATURES This security system can be customised to suit almost any vehicle or enable/disable certain features. These should only be changed by the installer. SIREN CHIRPS (default = ON) The chirps can be permanently turned off. Only the lights (park or indicators) confirm the arming and disarming.
  • Page 12 The light flash can be programmed off if the vehicle already flashes lights as confirmation of locking and unlocking. With this feature off, the lights will flash during an alarm condition. For correct operation, only Mongoose installers should programme your security system.

  • Page 13: Testing Your Alarm

    TESTING YOUR ALARM We strongly recommend that you frequently test your alarm. 1) Without disarming the system, unlock and open a door with the ignition key - the alarm should sound and the lights flash. Check all other doors, bonnet and boot by the same procedure – you may have to leave the windows open in order to open the other doors from the inside.

  • Page 14: Control Inputs

    When installed as an ‘upgrade’ the M80II is configured differently so it operates only from the vehicles remote controls. The Mongoose remotes are used for programming – please leave them in the vehicle. Changes in configuration are; The Automatic Engine Disable (AED) is off. Most vehicles have a factory immobiliser.
  • Page 15 METHOD 1: LIGHT FLASH (Default) Where a vehicle flashes lights (park or indicators) when the vehicle is locked and unlocked by the factory means (remote or hand touch), but does not flash when locked/unlocked manually, the DISARM #2 wire may be connected to a positive light flash wire. Do not use this method if the hazard signals are also produced by the BCM (body control module).
  • Page 16 PROGRAMMING Programming is achieved with the ignition on in conjunction with LED flashes and Mongoose remote button pushes. Do not use the vehicles remote. Disarm – open driver’s door (Keep door open while programming) - LED starts fast flashing 2: Within 10sec’ turn IGN on - the LED will now light solid for 10 seconds 3: Within 10 sec press remote button 3 to confirm program mode.

  • Page 17: Light Flash

    * BOLD = default setting LED ON / ONE LED OFF / TWO FEATURE CHIRP CHIRPS (Button 1 of remote) (Button 2 of remote) ＊LIGHT FLASH DISARM #2 INPUT TYPE DISARM DEFEAT ＊(+) DISARM #2 POLARITY AED off + Boot bypass AUTO ENGINE DISABLE *AED +CH2 output (Only for use when configured...
  • Page 18 BOOT BYPASS This is a (+) input and allows for the boot alarm circuit to be bypassed if the vehicle’s remote has a separate boot release button. Pressing the factory remote button will open the boot, turn off the boot alarm circuit and bypass the sensor ports.

  • Page 19: Wiring Information

    WIRING INFORMATION: Installation to be carried out by suitably qualified persons.
  • Page 20 CENTRAL LOCKING CONNECTION OPTIONS POSITIVE OR NEGATIVE SWITCHING REVERSE POLARITY +12 VOLTS (insert fuses if none supplied) PURPLE - LOCK PURPLE - LOCK WHITE - LOCK TO CAR WHITE - LOCK CONNECTION GREEN - LOCK LOCK GREEN - LOCK TO DOOR COMMON ORANGE - UNLOCK COMMON...
  • Page 21 Hand the remotes to the vehicle owner and ask for them to be kept in a safe place. They are NOT used for arming and disarming. MONGOOSE M80II REMOTE CODE LEARNING 1: Disarm – open driver’s door - LED starts fast flashing...

  • Page 22: Year Product Warranty

    (a) the defect has been notified as soon as it is noticed to an authorised Mongoose installation centre, distributor or agent (in the first instance to the original installation centre).

  • Page 23: Proof Of Purchase

    Please complete the above details, detach from this manual and keep in a safe place. These details should be presented to your Mongoose dealer in the unlikely event that you require this product to be repaired under the terms of the ‘product warranty’. Refer ‘Warranty Conditions’. Failure to provide this ‘Proof of Purchase’...
  • Page 24 Whilst this security system provides a deterrent, it may not prevent theft or damage through wilful criminal intent. Mongoose does not by inference, intent or any other means guarantee that a vehicle fitted with one of its security systems will not be stolen, broken into, tampered with, or parts taken.

This manual is also suitable for:

M80gii upgrade
