IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

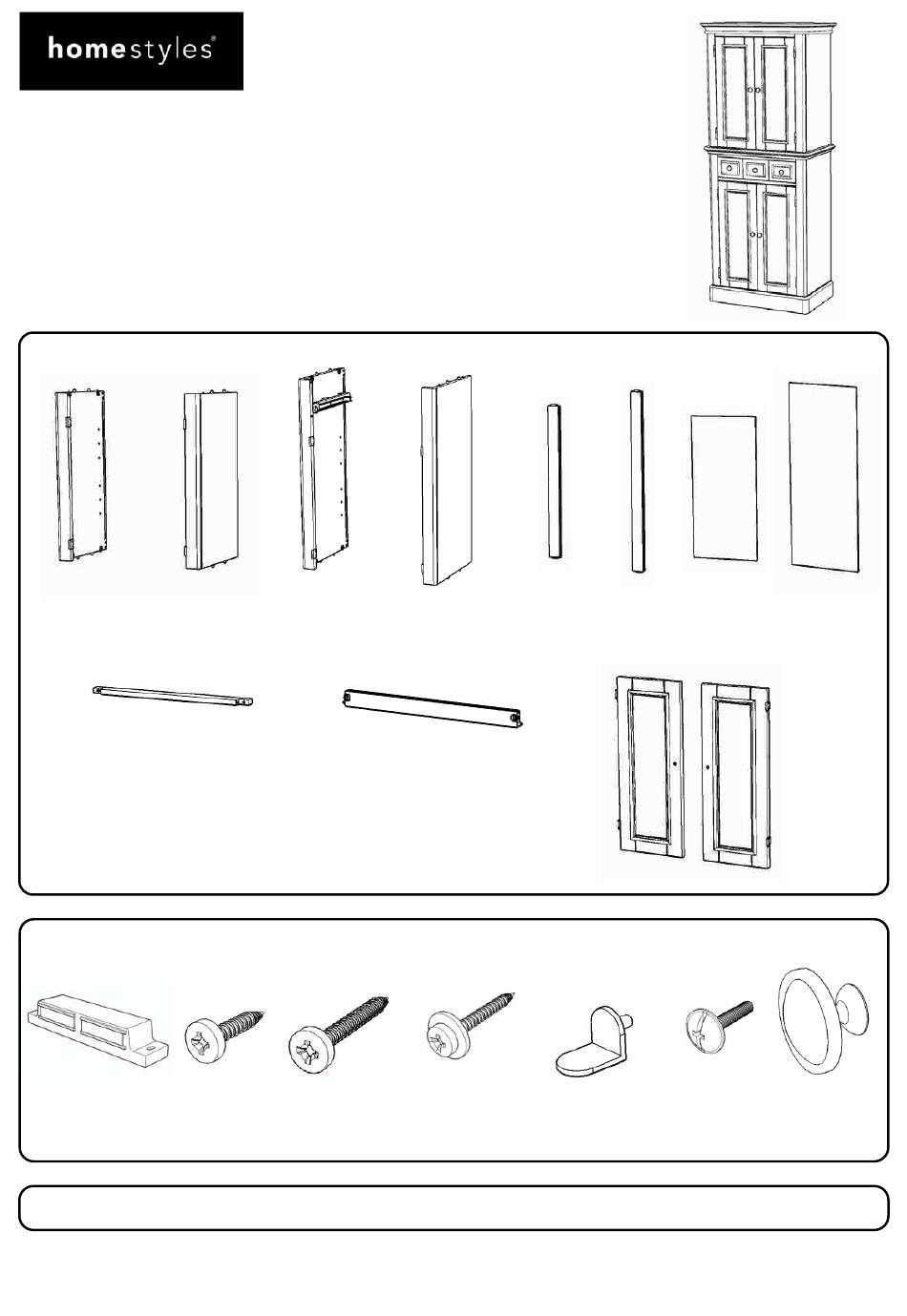

B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
J.
Front Rail
3 pcs.
M3x15
Magnet
Wood Screw
2 pcs.
4 pcs. (+1 extra)
Carton 88 5170 691 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5170 692
Pantry
D.
E.
Side Panel
Side Panel
1 pc.
1 pc.
K.
Stretcher
4 pcs.
M3x16
M3x30
Wood Screw
Wood Screw (long)
for stretcher
6 pcs. (+1 extra)
4 pcs. (+1 extra)
F.
G.
Upright
Upright
1 pc.
1 pc.
O.
Door
2 pcs.
Adjustable Pin
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
H.
I.
Back Panel
Back Panel
2 pcs.
2 pcs.
P.
Door
2 pcs.
M4x25
Machine Screw
Knob
7 pcs.
7 pcs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88 5170 692 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Homestyles 88 5170 692

  • Page 1 16 pcs. (+1 extra) 7 pcs. 7 pcs. Carton 88 5170 691 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. STEP 1 Attach Stretcher (K) to Side Panel (B), then flip the lock.
  • Page 3 Assembly Instructions 3/7 STEP 3 Turn unit to its’ upright position. Attach Top (A) to unit, then flip the locks. STEP 4 Attach Stretcher (K) to Magnet Side Panel (D), then flip the lock. Attach Back Panels (I), Upright (G) Wood Screw (long) and Stretcher (K) to unit, then flip the lock.
  • Page 4 Assembly Instructions 4/7 STEP 6 Attach unit to Base (M), then flip the locks. Attach Top (L) to unit, then flip the locks. Adjustable Pin STEP 7 Attach unit from Step 3 to unit from Step 6, then flip the locks. Insert Adjustable Pins into side panels at the desired level.
  • Page 5 Assembly Instructions 5/7 Drawer (Q) STEP 8 Attach Drawer Sides (Q3) and (Q4) to Drawer Back (Q2), then flip the locks. (See Figures 5 and 6) Lock Roller at back STEP 9 Figure 5 Figure 6 Slide Drawer Bottom (Q5) into the grooves in Drawer Sides (Q3) and (Q4).
  • Page 6 Assembly Instructions 6/7 STEP 11 Level unit by adjusting the adjustable levelers on the bottom of unit. (See Figure 7) Figure 7 Attach Knobs to Doors (O) and (P) with Machine Screws. (See Figure 8) Attach Doors (O) and (P) to unit by sliding the door lift hinges into the side panel lift hinges.
  • Page 7 Assembly Instructions 7/7 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 13 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...
  • Page 8 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
