UPDATE DEVICE:

By pressing the "Update Device" button, it is possible to load the created Configuration into the
device; and also the Firmware, if necessary.
If you don't know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip2 of 'Dip-Switch A' in ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP "192.168.2.205";
Press the "Ping" button, "Device Found!" must appear;
Press the "Next" button;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK" turn off the Device;
Put Dip2 of 'Dip-Switch A' at OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the "Ping" button, must appear "Device Found!";
Press the "Next" button;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK" the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly update.
ADFweb.com S.r.l.
firmware" button to start the upload;
firmware" button to start the upload;
User Manual PROFINET / SNMP Agent
Document code: MN67613_ENG Revision 1.100

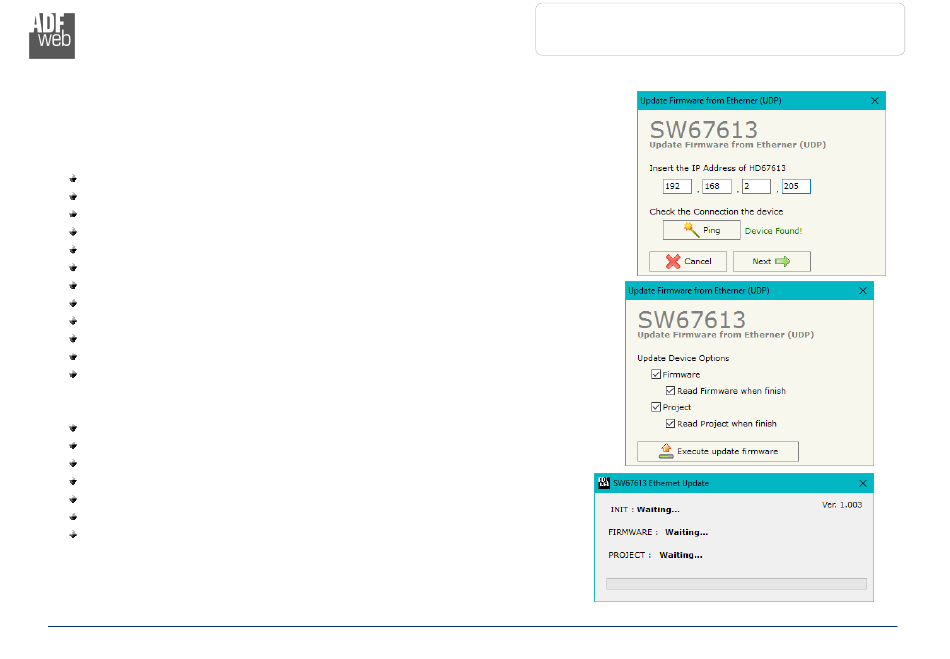

Figure 5: "Update device" windows
