User Manual PROFINET / SNMP Agent
Document code: MN67613_ENG
Revision 1.100
Page 10 of 28
Industrial Electronic Devices
ETHERNET:

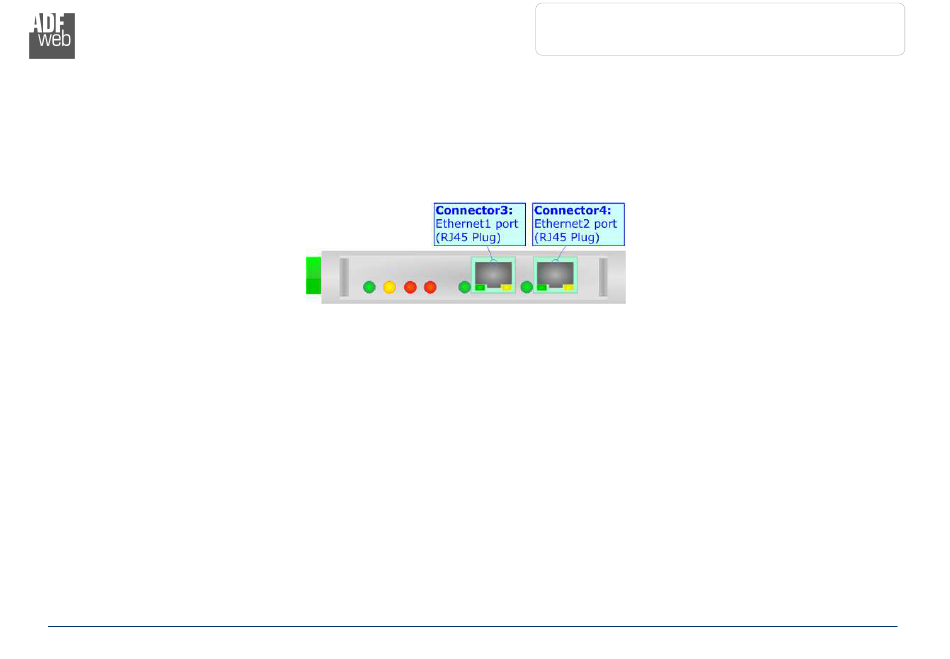

The PROFINET and SNMP connection and the updating of the converters must be made using Connector3 and/or Connector4 of HD67613-A1
with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms
relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to
connect the device to a PC/PLC/other is recommended the use of a cross cable.
ADFweb.com S.r.l.
