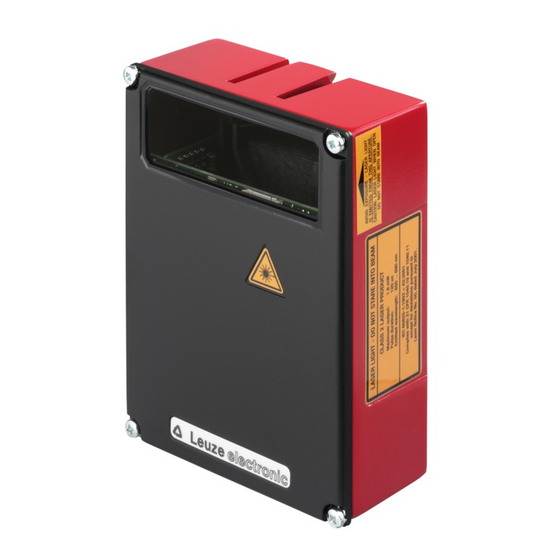

Barcode reader BCL 34
with integrated decoder
Technical Description
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCL 34 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leuze electronic BCL 34 Series

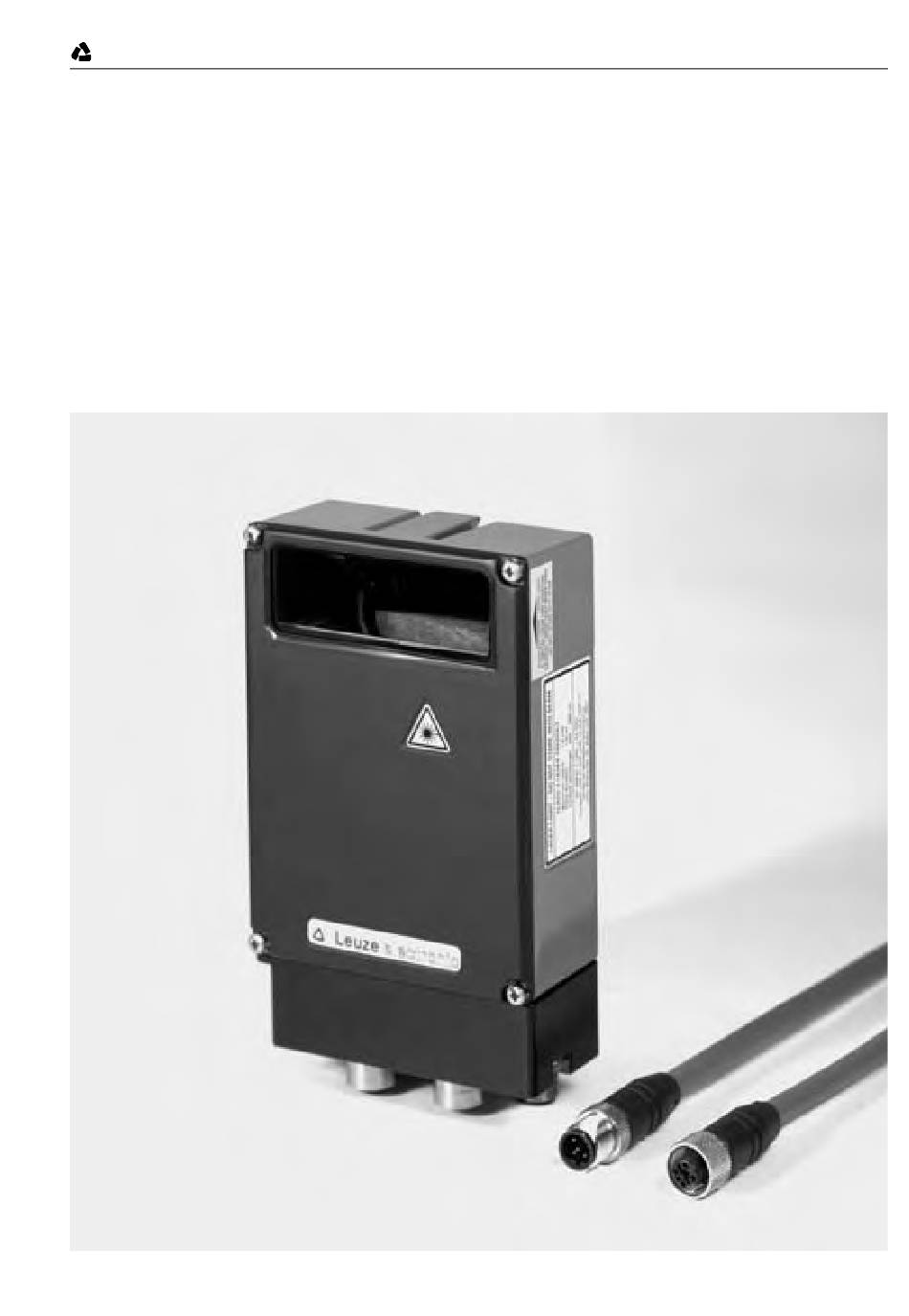

  • Page 1 Leuze electronic Barcode reader BCL 34 with integrated decoder Technical Description Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 2 © All rights reserved, especially the right of reproduction, distribution and translation. Copying or reproductions in any form require the written consent of the manufacturer. Changes reflecting technical improvements may be made. Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 3: Table Of Contents

    Connection ......................... 31 6.4.1 Connecting the BCL 34........................ 32 6.4.2 Mounting the Profibus Connector ....................35 6.4.3 Connection of switching inputs and outputs ................36 Disassembling, Packing, Disposing ................... 36 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 4 Code Direction: Module 43......................72 7.3.29 Number Of Digits: Module 44 .......................72 7.3.30 Code type: Module 45 ........................73 7.3.31 Alignment Mode: Module 46 ......................74 7.3.32 Service: Module 47 ........................75 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 5 Measures to be performed prior to the initial commissioning..........82 Function Test ........................82 9.2.1 Service Operating Mode ......................83 Maintenance ........................83 10.1 General Maintenance Information..................83 10.2 Repairs, Servicing ......................83 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 6 Table 7.11: Parameters for Module 10..................47 Table 7.12: Parameters for Module 10..................48 Table 7.13: Parameters for Module 11..................49 Table 7.14: Parameters for Module 12..................50 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 7 Table 8.1: Device parameters for example configuration 2............78 Table 8.2: Device parameters for example configuration 3............80 Table 8.3: Module parameters for example configuration 3 ............81 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 8: General Information

    (Underwriters Laboratory Inc.) for the USA and Canada. Notice! The corresponding declaration of conformity can be requested from the manufacturer. The manufacturer of the product, Leuze electronic GmbH & Co KG in D-73277 Owen/Teck, possesses a certified quality assurance system in accordance with ISO 9001. 9001...
  • Page 9: Safety Notices

    • labelling and packaging machines • space-critical barcode reading tasks • storage and conveying engineering, in particular for object identification on fast-mov- ing conveyor belts • pharmaceutical industry Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 10: Working Safely

    650 … 690nm. CAUTION - the use of operating and adjusting devices other than those specified here or carrying out of differing procedures may lead to dangerous exposure to radiation! BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 11: Figure 2.1: Attachment Of The Sticky Labels With Warning Notices At The Bcl 34

    Danger warning symbol Warning laser discharge Warning unlocked protective housing Warning and certification sign Name plate Figure 2.1: Attachment of the sticky labels with warning notices at the BCL 34 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 12: Description

    When the path from the scanner to the reflector has cleared, the read procedure has completed and the scanning beam is reduced and again directed onto the reflector. The reading gate is closed. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 13: Modular Hoods With Integrated Connectors Ms 34 103/Ms 34 105

    If these parameters were changed, they are stored in one of the available parameter mem- ories in the MS 34. They are, thus, safely stored even if a BCL 34 is replaced. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 14: Specifications

    Dimensions (W x H x D) without heating: 120 x 90 x 43mm 38 x 90 x 39mm with heating: 120 x 90 x 52mm Housing diecast aluminium diecast zinc BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 15: Led Indicators

    Note: The LED remains off until the BCL 34 is recognised by the Profibus. Only after the Profibus has addressed the BCL 34 for the first time do the following status descriptions apply. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 16: Device Construction And Components

    Figure 4.1: BCL 34 with MS 34 105 4.3.1 Dimensioned and Connection Drawings BCL 34 Rear view Plan view Plan view (without heating) (with heating) All dimensions in mm Figure 4.2: Dimensioned drawing BCL 34 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 17: Figure 4.3: Dimensioned Drawing Ms 34 103 / Ms 34 105

    1) The total length of the barcode reader + hood with inte- A = Barcode reader grated connectors + connection plug is approx. 210mm. All dimensions in mm Figure 4.3: Dimensioned drawing MS 34 103 / MS 34 105 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 18: Optical Data

    BCL 34 R1 L 100 H up to 550mm 0.5 … 0.8 1000 Raster 501 01902 BCL 34 R1 J 100 H Table 4.4: Type overview BCL 34 with integrated heating BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 19: Raster Aperture

    2/5 interleaved, ratio = 1:2.5, label class A. Reading curves BCL 34 without heating with M optics Reading distance [mm] m=0,2 m=0,3 m=0,5 Figure 4.4:BCL 34…100: Reading field, M optics (medium density, normal distance) Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 20: Figure 4.5:Bcl 34

    Reading curves BCL 34 without heating with L optics -100 -150 -200 Reading distance [mm] m=0,35 m=0,5 m=0,8 Figure 4.6:BCL 34…100: Reading field, L optics (low density, long distance) BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 21: Figure 4.7:Bcl 34

    The actual reading field for an ink-jet application must be checked for the respective appli- cation. -100 -150 m=0,5 Reading distance [mm] m=0,8 Figure 4.7:BCL 34…100: Reading field, J optics (for ink-jet applications) Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 22: Figure 4.8:Bcl 34

    20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 Reading distance [mm] m=0,3 m=0,5 m=0,8 Figure 4.9:BCL 34…100 H: Reading field, F optics (low density, normal distance) BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 23: Figure 4.10:Bcl 34

    Reading curves BCL 34 with heating with L optics -100 -150 -200 Reading distance [mm] m=0,35 m=0,5 m=0,8 Figure 4.10:BCL 34…100 H: Reading field, L optics (low density, long distance) Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 24: Automatic Reflector Activation "Autoreflact

    The reading gate is closed. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 25: Examples Of Reflectors Which May Be Used

    Table 4.5: Examples of reflectors which may be used *) Reflective tape no. 2 is included Application example: automatic reflector activation Reflector Figure 4.12: Reflector arrangement for autoReflAct Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 26: Accessories / Order Designation

    Accessories / Order Designation Accessories / Order Designation Accessories Notice! Products from Leuze electronic GmbH & Co KG can be ordered from any of the sales and service offices listed on the back page of this operating manual. Order No. Short Description...
  • Page 27: Figure 5.1: Modular Service Display Msd 1 101

    Leuze electronic Accessories / Order Designation A LED indicator B Device connector M12, 8-pin All dimensions in mm Figure 5.1: Modular Service Display MSD 1 101 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 28: Fastening Accessories

    Figure 5.2: Mounting device BT 56 5.1.3 Connection cable KB 034 2000 A special connection cable of 2m length is available for the connection between MS 34 105 and MSD 1 101. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 29: Installation

    Figure 6.1:Device name plate BCL 34 ! Save the original packaging for later storage or shipping. If you have any questions concerning your shipment, please contact your supplier or your local Leuze electronic sales office. ! Observe the local regulations regarding disposal and packaging. Cleaning ! Clean the glass window of the BCL 34 with a soft cloth before mounting.
  • Page 30: Mounting

    Mounting Accessories The mounting system BT 56 is available for installation. It may be ordered separately from Leuze electronic. For order numbers, see table 5.1 "Accessories / Order Designation" on page 24. Mounting the BCL 34 There are two basic types of mounting arrangements for the BCL 34: •...
  • Page 31: Device Arrangement

    BCL. 10˚ Minimum reading dis- tance, depending on the optical system used (see reading curves) All dimensions in mm Figure 6.3: Beam outlet on the BCL 34 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 32: Figure 6.4: Application Example "Conveyor Chain

    • mount in such a way that the device is protected from draughts; mount additional shields if necessary. • when using outdoors, we recommend mounting in an additional protective housing. Application example Figure 6.4: Application example "conveyor chain" BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 33: Address Setting

    Be sure that the earthing conductor is connected correctly. Error-free operation is only guar- anteed when the device is properly earthed. If faults cannot be corrected, the device should be removed from operation and protected against possible use. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 34: Connecting The Bcl 34

    Socket connector Plug connector Plug connector (B coded) (B coded) (A coded) Figure 6.6: Connection assignment of the BCL 34 with MS 34 103 / MS 34 105 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 35: Pin Assignment Pwr In

    2, as the switching output is not protected against feedback. For example, having the in- verted sensor output incident on pin 2 leads to erroneous behaviour of the switching output. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 36: Pin Assignment Dp In/Out

    Pin assignment DP IN/OUT Notice! If the device is the last participant on the Profibus, use the appropriate terminating resistor TS 02-4-SA. For further information, see also chapter 5.1. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 37: Mounting The Profibus Connector

    ( in figure 6.7). ➀ Connector KD 02-5-SA or KD 02-5-BA strip 35mm strip 4mm shorten shield 6 ➁ ➂ ➃ ➄ Figure 6.7: Mounting Profibus Connector Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 38: Connection Of Switching Inputs And Outputs

    Optimal protection is achieved when using the original packaging. Notice! Electrical scrap is a special waste product! Observe the locally applicable regulations re- garding disposal of the product. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 39: Profibus

    Here, the function block FB 192 must be integrated, which is used to transmit the consistent data. S5 with IM 308B With the IM 308B consistent data transmission must be programmed via load transfer commands. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 40: Gsd File

    The permanently defined parameters in the BCL 34 which are available independently of the modules, are listed below. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 41 EAN8,EAN13 Code128 (T1) (T2) (T3) (T4) Parameter Enumeration Range Enumeration Range Number-of-digits mode Digits 1 Digits 2 Digits 3 Table 7.2: Code type and code length, Tables 1-4 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 42: Structure Of The Project Modules

    Activation of reference code comparison and specifica- Comparison tion of the mode of operation Activations Control bits for standard reading operation Table 7.3: Overview of the project modules BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 43 Number of digits in the barcode Code type Barcode type Alignment Mode Function for device positioning Service All parameters are set to the factory settings Table 7.3: Overview of the project modules Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 44: Description Of The Individual Project Modules

    1 (range) an entry in "digits 3" is without effect Table 7.4: Parameters for Modules 1-4 Parameter length: 16 bytes (4 bytes per module) Input Data none Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 45: Multilabel: Module 5

    Number of decoding results UNSIGNED 8 0 … 255 ing results which have not been fetched. Table 7.6: Input data for Module 5 Input data length: 1 byte Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 46: Reading Gate Control: Module 6

    Scans after scans data was found during the subsequent without data number of scans defined in the parameter. Table 7.8: Parameters for Module 6 Parameter length: 8 bytes BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 47: Check Digit: Module 7

    The parameter controls the output of the Check digit output 0: No check digit in the barcode result for the code Pharmacode 1: Yes type Pharmacode Table 7.9: Parameters for Module 7 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 48: Ean Designator: Module 8

    0 … 10.000 10.000 designator only a result if the designator has been found. Table 7.10: Parameters for Module 8 Parameter length: 2 bytes Input Data none Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 49: Laser Control: Module 9

    The parameter specifies the switch-off posi- Laser stop position 0 … 100 tion of the laser. Table 7.11: Parameters for Module 10 Parameter length: 2 bytes Input Data none Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 50: Pharmacode Properties: Module 10

    The parameter specifies the reading direction for 0 : Normal tion the decoding 1 : Inverse Table 7.12: Parameters for Module 10 Parameter length: 5 bytes Input Data none Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 51: Code Type Properties: Module 11

    1: active between two labels. Table 7.13: Parameters for Module 11 Parameter length: 4 bytes Input Data none Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 52: Data Formatting: Module 12

    0 … 255 45 ("-") areas. Table 7.14: Parameters for Module 12 Parameter length: 23 bytes Input Data none Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 53: Switching Input: Module 13

    Range Value Unit State State of the signal of the switching input 0.0 Table 7.16: Input data for Module 13 Input data length: 1 byte Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 54: Switching Output: Module 14

    "positive reference code comparison 1" and switch-off function "negative reference code comparison 1". Parameter length: 8 bytes Input Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 55: Autoreflact (Automatic Reflector Activation): Module 15

    The parameter defines a de-bounc- De-bouncing ing time which is implemented in soft- 0 … 31 time ware. Table 7.19: Parameters for Module 15 Parameter length: 2 bytes Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 56: Autocontrol: Module 16

    The module defines the mode of operation of the function AutoControl. The function moni- tors the quality of the decoded barcodes and compares these with a limit value. If the limit is reached, a status signal is set. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 57 This value is the current average of Scan quality UNSIGNED8 0 … 100 the scan quality. Table 7.23: Input data for Module 16 Input data length: 2 byte Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 58: Reference Code Comparison: Module 17

    NED8 ison function ter "Barcode compari- between decoded bare code son type"" on page 61. and RBC occurs. Table 7.24: Parameters for Module 17 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 59 (see Modules 1-4) and the refer- ence code itself in the follow- ing bytes. Table 7.24: Parameters for Module 17 Parameter length: 74 bytes Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 60 This results in the following basic structure of comparison options: c1, c2 Logic LENGTH and TYPE and ASCII LENGTH and (TYPE or ASCII) (LENGTH or TYPE) and ASCII LENGTH or TYPE or ASCII BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 61 • Comparison in the sequence of the activated RBCs: The first decoded barcode is compared only with the first RBC, the second decoded barcode only with the second RBC and so on. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 62: Bcl 34 Leuze Electronic

    The comparison result is positive if each decoded barcode corresponds to the RBC it was compared with. (Number of the received barcodes must correspond to the number deposited in the parameter "number of barcodes per reading gate" (Module 5)). BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 63 Barcode != RBC Barcode == RBC Barcode > RBC Barcode >= RBC Barcode < RBC Barcode <= RBC RBCn <= barcode <= RBCn+1 Barcode < RBCn barcode > RBCn+1 Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 64: Activations: Module 18

    0 to 1. 0: Standby off Standby Signal, activates the standby function 1: Standby on Table 7.26: Output data for Module 18 Output data length: 1 byte BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 65: Activations With Ack: Module 19

    0 -> 1: Reset 0: Standby off Standby Signal, activates the standby function 1: Standby on Table 7.27: Output data for Module 19 Output data length: 1 byte Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 66: Decoding State: Module 20

    Accordingly, the modules are to be regarded as alterna- tives. The module defines the transfer of the actually decoded reading results. The data are trans- mitted consistently over the entire range. Parameter none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 67 Table 7.29: Input data modules 21 - 27 Input data length: 2 bytes consistently + 4 … 28 bytes of barcode information depending on the module Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 68: Fragmented Reading Result: Module 34

    1 -> 0 Data has been processed by the master processed by the master Table 7.32: Output data for Module 34 Output data length: 2 bytes consistently BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 69: Reading Gate Activations: Module 35

    65535, an overflow occurs and the coun- ter starts afresh from 0. Table 7.34: Input data for Module 36 Input data length: 2 bytes consistently Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 70: Number Of Scans Per Reading Gate: Module 37

    If the range is exceeded, the reading gate reading gate. value remains at 65535 Table 7.35: Input data for Module 37 Input data length: 2 bytes consistently Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 71: Code Position: Module 38

    18040 identifies the start of the barcode to be located at 71%. Table 7.36: Input data for Module 38 Input data length: 2 bytes consistently Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 72: Reading Security (Equal Scans): Module 39

    0 … 1 UNSIGNED16 0 … 65535 barcode and last detecting of the barcode Table 7.38: Input data for Module 40 Input data length: 2 bytes consistently Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 73: Scans With Information: Module 41

    The decoding quality of the Decoding quality UNSIGNED8 0 … 100 transmitted barcode Table 7.40: Input data for Module 42 Input data length: 1 byte Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 74: Code Direction: Module 43

    Number Of Number of digits of the transmitted UNSIGNED8 0 … 48 Digits barcode Table 7.42: Input data for Module 44 Input data length: 1 byte Output Data none BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 75: Code Type: Module 45

    8: Code128, EAN128 9: Pharmacode 10: EAN Addendum 11: Codabar 12: Code93 Table 7.43: Input data for Module 45 Input data length: 1 byte Output Data none Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 76: Alignment Mode: Module 46

    0 -> 1: On Alignment mode Signal, activates the alignment mode 0.0 1 -> 0: Off Table 7.45: Output data for Module 46 Output data length: 4 byte consistently BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 77: Service: Module 47

    Reset of parameters 0 -> 1: reset the parameters PC20_Over_Profibus to factory settings 1 -> 0: standard operation Table 7.47: Output data for Module 47 Output data length: 1 byte Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 78: Example Configurations

    Include the following modules into your project: • Activations (Module • Decoding Result 16 bytes (Module 24) Parameter Settings No parameters need to be set especially. The standard parameter set provides all required functions. BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 79 M 24 byte 2 = result The result Hex 3F ("?" = no read) is transmitted Internal processing of the data and sig- Internal processing nalling of the non-reading Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 80: Direct Activation Via The Switching Input

    Code 39 0 (no code) [T3] code type EAN8, EAN13 0 (no code) [T4] code type Code 128 0 (no code) Table 8.1: Device parameters for example configuration 2 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 81 The data length is entered into byte 1. M 23 byte 2 = result The result Hex 3F ("?" = no read) is transmitted. Internal processing Internal data processing Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 82: Direct Activation Via The Switching Input

    Code 39 0 (no code) [T3] code type EAN8, EAN13 0 (no code) [T4] code type Code 128 0 (no code) Table 8.2: Device parameters for example configuration 3 BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 83 M 23 byte 2 to 11 = result cessful, 1 if barcode could not be recog- nised) The decoding result is transmitted in the following 10 bytes. Internal processing Internal data processing Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 84: Commissioning

    Should a problem persist after checking all electrical connections and settings on the devices and host, please contact a Leuze service office near you (see the back page of this operating manual). BCL 34 Leuze electronic Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 85: Service Operating Mode

    Repairs to the device must only be carried out by the manufacturer. ! Contact your Leuze distributor or service organisation should repairs be required. For addresses, please refer to the back page of this operating manual. Leuze electronic BCL 34 Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
