Light Management

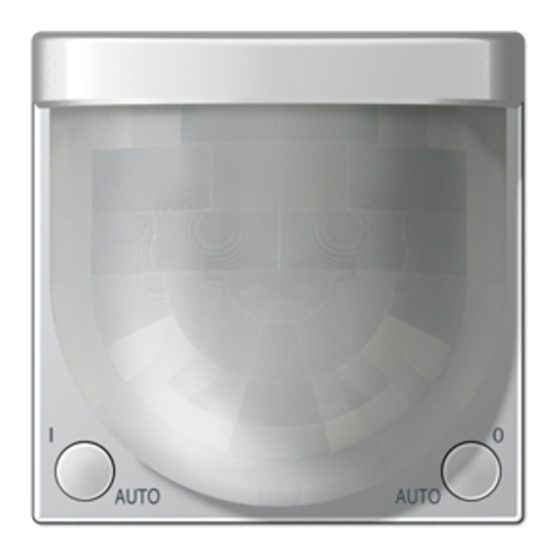

Universal automatic switch 180° 2.20 m
Universal automatic switch 180° 2.20 m
Art.-No.: AS..1280-1..
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Do not press on the sensor window. Device can be damaged.
Disconnect before mounting the cover, malfunction possible.
Keep button cells out of reach of children! If button cells are swallowed, get medical help
immediately.
Risk of explosion! Do not throw batteries into fire.
Risk of explosion! Do not recharge batteries.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.

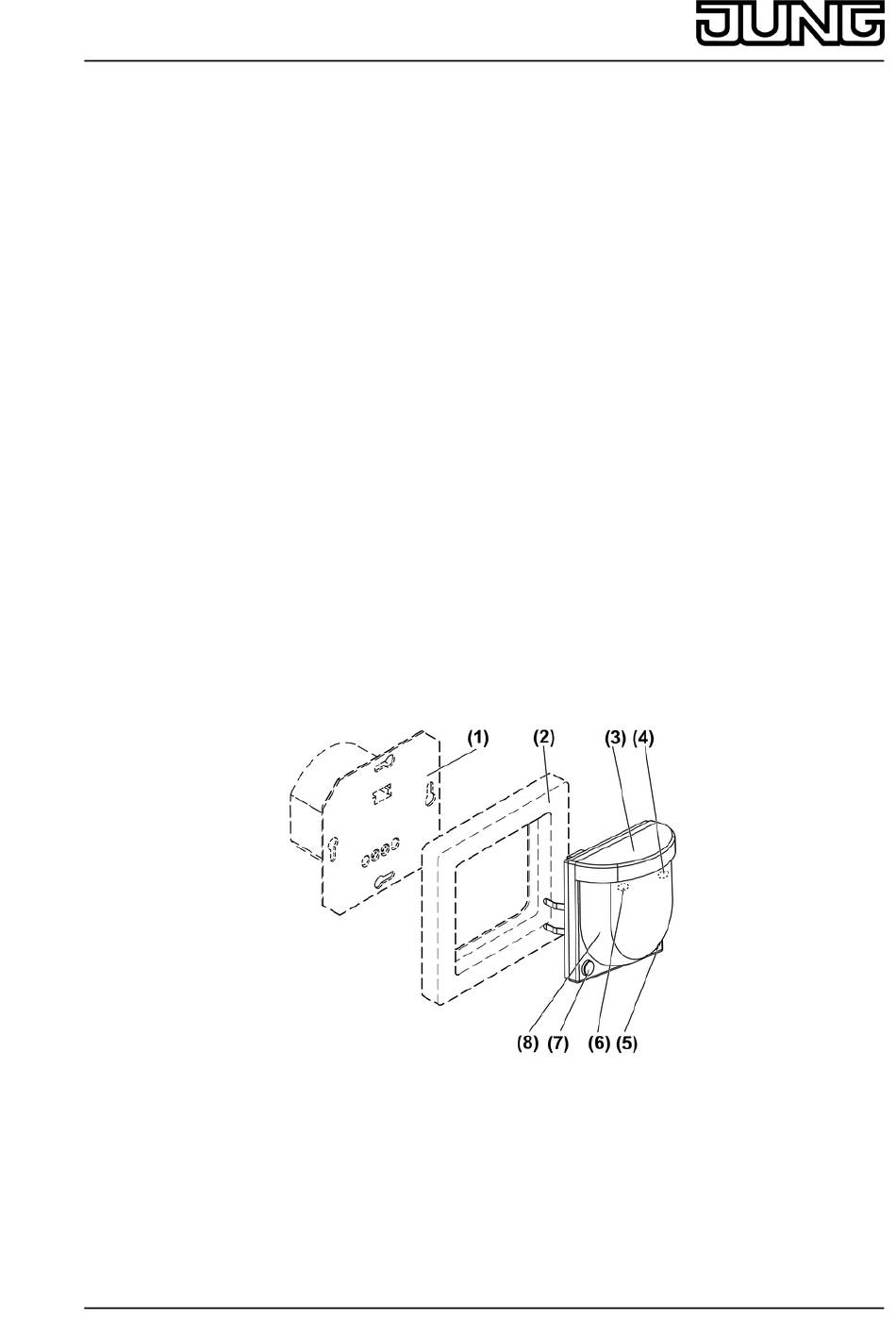

2 Device components
(1) Insert
(2) Frame
(3) Motion detector
(4) LED red
(5) Button Off/Auto
(6) LED yellow
32576803
J:0082576803
Figure 1
1/13
03.05.2011
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung AS 1280-1 Series
Summary of Contents for Jung AS 1280-1 Series
- Page 1 Light Management Universal automatic switch 180° 2.20 m Universal automatic switch 180° 2.20 m Art.-No.: AS..1280-1.. Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Light Management Universal automatic switch 180° 2.20 m (7) Button On/Auto (8) Lens 3 Function Intended use Automatic switching of light, depending on heat motion and ambient brightness Operation with concealed insert for dimming, switching or extension insert, 3-wire Mounting indoors or outdoors on concealed insert Product characteristics Adjustable functions with IR remote control Extension of the detection area in combination with the 3-wire extension insert...
- Page 3 Light Management Universal automatic switch 180° 2.20 m Presence simulation In automatic operation, the motion detector continuously saves times for which the lighting was switched on or off. A maximum of 120 switching operations are saved over a period of 7 days. If more switching operations take place, the oldest ones are overwritten respectively.
- Page 4 Light Management Universal automatic switch 180° 2.20 m Á Pressing for longer than Only dimming inserts: Dimming until minimum 0.4 seconds brightness  On for 2 hours à Off for 2 hours Ä Pressing for longer than 10 seconds Presence simulation Å...
- Page 5 Light Management Universal automatic switch 180° 2.20 m Switching on light for the duration of the run-on time A 2-wire extension or an installation button is connected. Press 2-wire extension or installation button, with dimming inserts alternative Å button, for less than 0.4 seconds. Light is switched on depending on brightness and motion.
- Page 6 Light Management Universal automatic switch 180° 2.20 m Adjust the brightness Motion detector is combined with a dimming insert. With the IR remote control, alternatively via the 2-wire extension, the light can be dimmed temporarily. The next time the light is switched on, it is switched on again to the switch-on brightness Light is switched on.
- Page 7 Light Management Universal automatic switch 180° 2.20 m Saving ambient brightness as brightness threshold The ambient brightness can be saved as brightness threshold with the aid of the teach function. i Do not shadow the motion detector during the measuring process. Motion detector is in automatic operation.
- Page 8 Light Management Universal automatic switch 180° 2.20 m Test operation is switched on for 5 minutes, afterwards the motion detector switches to automatic operation again. Function Value Sensitivity 100 % Detection area 180 ° Brightness threshold Day mode run-on time 1 second i By pressing the À...
- Page 9 Light Management Universal automatic switch 180° 2.20 m 6 Information for electrically skilled persons 6.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding circuit breakers.
- Page 10 Light Management Universal automatic switch 180° 2.20 m Figure 4 Installing the motion detector The concealed insert is connected and installed correctly (see Concealed insert instructions). i Further installation steps are necessary to ensure the protection rating IP 44 (see Seal set instructions) Mount the motion detector with the frame onto onto concealed insert.
-
Page 11: Technical Data
Light Management Universal automatic switch 180° 2.20 m Carry out optional adjustment for use outdoors. Switching on optional night light function Configure dimming phase optionally in combination with dimming inserts. Configure short time operation optionally in combination with switching inserts. Set brightness threshold. - Page 12 Light Management Universal automatic switch 180° 2.20 m Motion detector constantly switches on and off during motion. Cause 1: Test operation is switched on. Cause 2: Short time operation is switched on. Switch on automatic mode. Motion detector switches off despite motion Cause 1: The motion detector does not detect any motions.
-
Page 13: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
