4.

MOUNTING AND ASSEMBLY OF THE TIMKEN C-POWER LUBRICATION SYSTEM

4.1

Mounting the Drive Unit onto a Fixing Device for Wall Mounting

Attach the supplied mounting device to the drive unit using the two enclosed hex head bolts
(M6 x 16) and the two washers.
Screw the mounting device with the drive unit on to a support for your system. For the position of
the bores of the three fixing screws (141.5 x 45) refer to figure 3 below. You must use at least three
hexagon screws (M6 x 25).
Before connecting the outlet of the drive unit to the lubricant tube, make sure that the lubrication
points and the complete lubricant tube are pre-lubricated with the same lubricant that is contained
in the C-Power LV-unit. To do this, Timken offers a 400 g lubrication cartridge for manually operated
grease presses.
Connect the lubricant tube (connection G 3/8 outside or G 1/8 inside) to the outlet of the drive unit
and install the tube between the outlet and the lubrication point. The lubricant tube must not exceed
five meters.
Make sure the connections and lubricant tubes are assembled correctly and tightly to avoid
possible leakage.

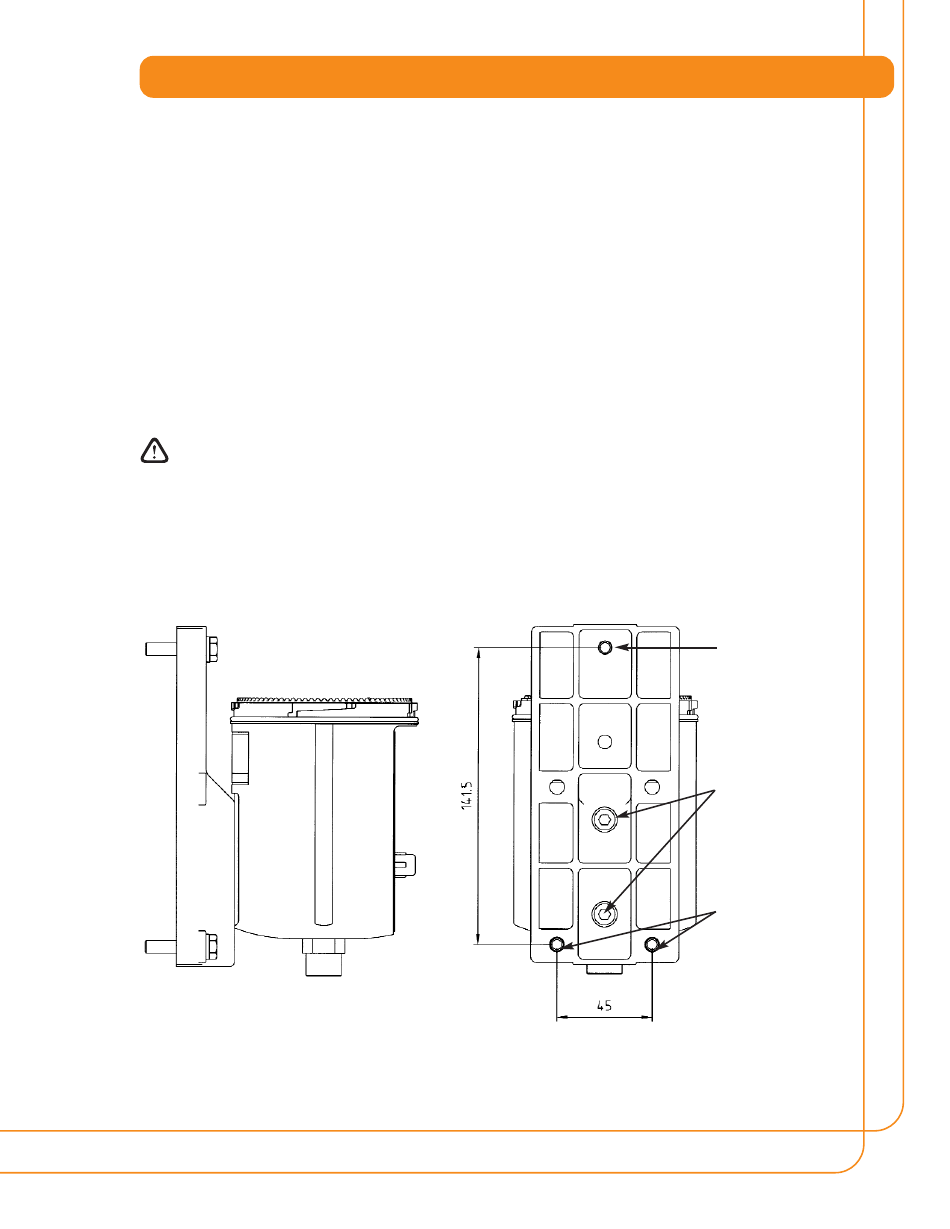

Figure 3
Hexagon screws
M6 x 25
(for wall mounting)
2 hex head bolts
M6 x 16, maximum
torque 3 Nm (supplied
for attaching the
Timken C-Power to the
mounting device)
2 hexagon screws
M6 x 25
(for wall mounting)
9
