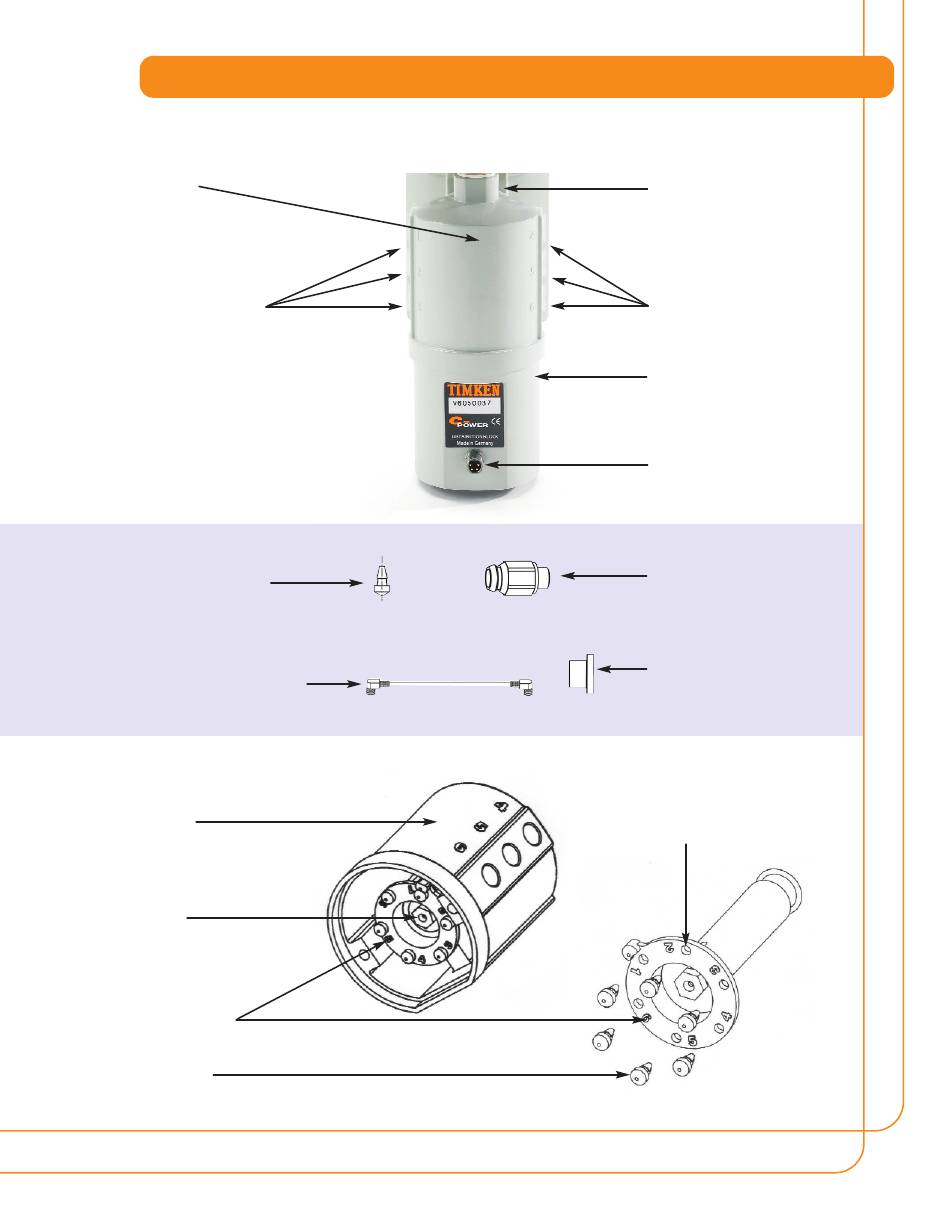

11. QUICK REFERENCE DISTRIBUTION GUIDE

Housing
Contains the
piston, bores and
coding disk.
Outlets 1 to 3 with
connecting pieces
Used to attach the
lubricant tubes.
ACCESSORIES
Coding pins (8 pcs.)
Inserted into the coding disk
to mark the open outlets.
Connecting cable (1 pcs.)
Used for power supply
and communication.
HOUSING WITH CODING DISK AND CODING PINS
Housing
With coding disk.
Piston
With bores for the
individual outlets.
Coding disk
Where coding
pins are inserted.
Coding pin
Marks an open outlet.
Connection thread
Used to attach a lubricator of
the Timken C-Power Line.
Outlets 4 to 6 with
connecting pieces
Used to attach the
lubricant tubes.
Drive unit
Contains the motor
and electronics.
Connector
Where the connecting cable
plugs in.
Connecting piece (6 pcs.)
Used to attach the
lubricant tubes.
Plug (4 pcs.)
Seals outlets that are
not used.
Bores 1 to 6
Where the coding pins are
inserted into the coding disk.
