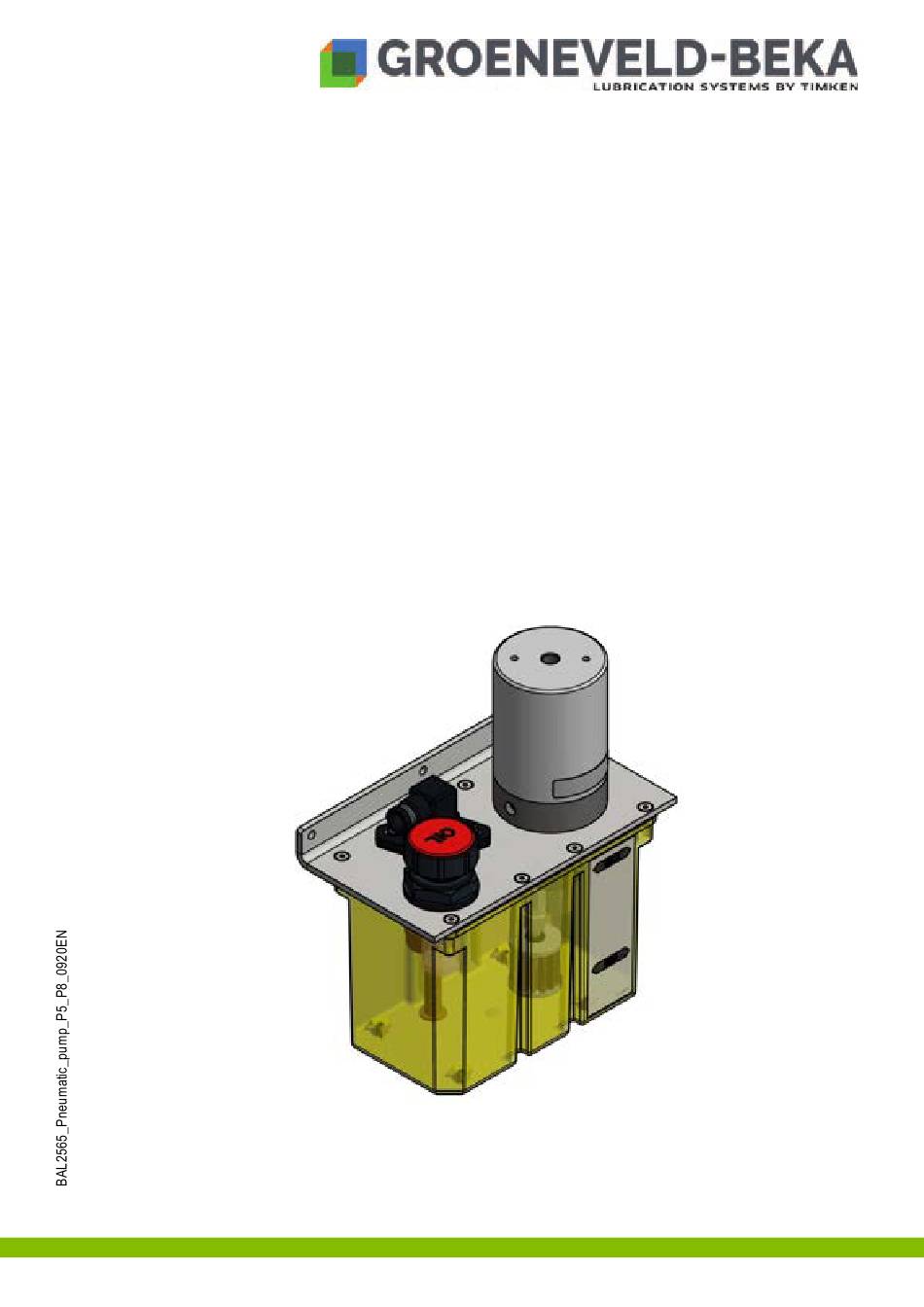

- Page 1 Pneumatic pump P5 / P8 Code 2565 … Issue 09-2020 Original operating assembly manual Page 1 © BEKA 2020 All rights reserved!
-
Page 2: Table Of Contents
Table of contents Technical data ....................................3 Applicable documents..................................3 General safety instructions ................................4 Safety instructions ..................................4 Qualification and training of staff .............................. 4 Hazards in case of non-observance of the safety instructions ....................5 Obligations of the operator / user ............................. 5 Safety instructions for maintenance, inspection and assembly .................... -
Page 3: Technical Data
Technical data Reservoir capacity: ................................... 6 liter Lubricant: ..................................oil, 20 – 700 mm²/s Delivery rate: ................................10 or 15 cm³/stroke Purity class of the lubricant to be filled in: ......................ISO 4406: ≤ 17/15/12 Operating pressure: ............................depending on flow pressure Flow pressure: ..................................... -
Page 4: General Safety Instructions
General safety instructions Everybody who is in charge of the assembly, start-up, maintenance and operation of the device must read these instructions carefully prior to assembly and start-up of the device at the machine! Furthermore, this manual must always be available at the site of operation! Basic instructions for setup, operation and maintenance can be found below. -
Page 5: Hazards In Case Of Non-Observance Of The Safety Instructions
Hazards in case of non-observance of the safety instructions Results of non-observance of the safety instructions can be hazards to persons, for the environment and the device. Non-observance of the safety instructions may result in the loss of any liability claims. The non-observance could more specifically result in the following hazards (for example): •... -
Page 6: Inadmissible Modes Of Operation
Inadmissible modes of operation Operational safety of the device is only guaranteed when it is appropriately applied as indicated in the operating and assembly manual. Never exceed or fall below the limit values, as stated in the technical data. Electrostatic discharge Avoid electrostatic discharge! There are electronic components integrated into the devices which might be destroyed by electrostatic discharge. -
Page 7: Intended Use
Intended use The device is only approved for the industrial use. Caution! Only operate the device if it is installed in/at another machine and operated together with it. Only lubricants which comply with the machine manufacturer’s specifications may be conveyed. The device must only be used according to the technical data (see chapter 1 „Technical data”). -
Page 8: Assembly Instructions
Assembly instructions Check the device for possible transport damage and for completeness before the assembly. Any installed equipment for transportation safety has to be removed. Comply with the following conditions when assembling a complete machine from this device and other components. Mind a proper and eco-friendly assembly without impairment of persons’... -
Page 9: Start Up
Start up Filling with lubricant • Fill the reservoir with clean lubricant at the filling and ventilation filter! • Observe the machine manufacturer’s lubricant details! Only use lubricants according to machine manufacturer’s specifications! • Collect leaking lubricant in a suitable reservoir and dispose it professionally! •... -
Page 10: Maintenance
10. Maintenance Disconnect the device from electrical energy supply before maintenance or repairs. Only carry out maintenance and repair in complete device standstill and pressureless condition. Check the surface temperature of the device to avoid the risk of burns by radiant heat. Wear heat-resistant gloves and safety goggles! Clean soiled or contaminated surfaces before maintenance, wearing protective equipment if necessary! Secure the device against recommissioning during maintenance and repair work! 10.1 General maintenance... -
Page 11: Troubleshooting
13. Troubleshooting Malfunction Possible cause Possible remedy Pump defective Exchange pump Pump does not work 3/2-way valve defective Exchange 3/2-way valve Pneumatic supply defective Renew pneumatic supply Lubricant cannot be conveyed Fill in lubricant with correct viscosity Pump operates but does not supply Suction line leaky Retighten fitting;... -
Page 12: Details Of The Manufacturer
16. Details of the manufacturer GROENEVELD-BEKA BAIER + KÖPPEL GmbH + Co. KG Beethovenstraße 14 91257 PEGNITZ / Bayern Germany Tel. +49 9241 729-0 +49 9241 729-50 POSTFACH 1320 91253 PEGNITZ / Bayern Germany http://www.beka-lube.de E-Mail: beka@beka-lube.de beka@beka-max.de Our range of supply: Gear pumps Multi-line oil pumps Multi-line grease pumps...
