Timken M-Power 400 Installation Instructions Manual

Single-point lubricators
Hide thumbs

Advertisement

Quick Links

Download this manual
Timken M-Power Single-Point Lubricators
Table of
Contents
M-Power 400
Product Specs . . . . . .1
Installation
Instructions . . . . . . . . 5
Several M-Power Units
Installed within One
System . . . . . . . . . . . . 6
Troubleshooting
Guide . . . . . . . . . . . . . . 7
Data Sheet of the
Power Supply Cable . . 8
Technical Data
Sheet for Motorized
Lubricator Control . . . 9
Safety Warnings . . . 10
THE TIMKEN COMPANY
M-POWER 400 INSTALLATION INSTRUCTIONS
French and Spanish versions of this instruction sheet are available online at www.timken.com/powerlubricators by clicking on
either the "G-Power Instruction Sheet" or "M-Power Instruction Sheet" links. To locate the MSDS sheet for this product, visit
www.timken.com/powerlubricators and click on the "MSDS" link.
La version en français et en espagnol de cette feuille d'instruction est disponible en ligne à www.timken.com/powerlubricators al
cliquant sur les liens "G-Power Instruction Sheet" ou "M-Power Instruction Sheet."
Pour trouver la Fiche signalétique sur ce produit visitez www.timken.com/powerlubricators et cliquez su le lien "MSDS."
Las versiones en francés y español de esta hoja de instrucciones están disponibles en línea en www.timken.com/powerlubricators
al hacer clic, bien sea en los enlaces "Hoja de Instrucciónes para G-Power" o en "Hoja de Instrucciónes para M-Power."
Para ubicar la Hoja de Datos de Seguridad sobre Materiales (MSDS) para este producto, vaya a www.timken.com/powerlubricators
y haga clic en el enlace "MSDS."
WARNING: Follow installation instructions. Prior to installation, ensure that the unit has a free path to discharge lubricant.
Never place near high heat sources or equipment that may produce sparks or flames. Lubricant harmful if swallowed. If
ingested, do not induce vomiting and contact a physician immediately. Avoid direct contact with skin. Contents are under
pressure. Do not remove or open the device when in operation. Do not take apart or attempt to modify the device except for
replacement as directed in installation instructions. Dispose of used devices properly.

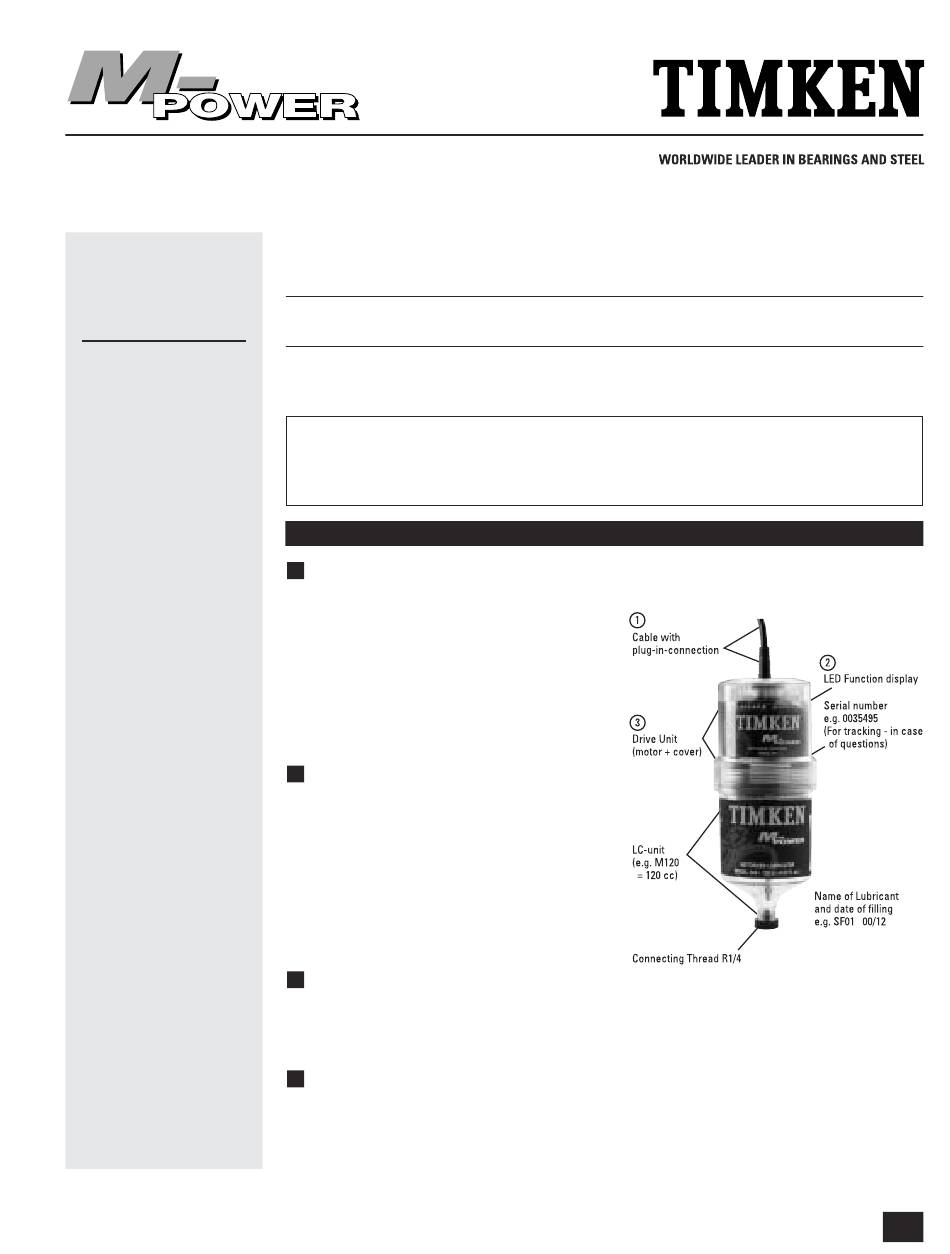

M-Power 400 Product Specifications
GENERAL NOTE FOR THE USER
Before installing and wiring Timken M-Power
lubricator, please ensure that there is no
transport damage.
Match delivered goods against the packing
slip and your order.
These operating instructions must be read
carefully and should be stored near where the
unit is installed.
MOUNTING ADVICE
Timken M-Power should only be used for the
recommended purposes.
Timken M-Power should only be mounted and
operated by qualified staff.
Installation must be in accordance with
national standards.
Please pay attention to the Material Safety
Data Sheets (MSDS) of the lubricants.
MAINTENANCE/CLEANING
Timken M-Power should not be cleaned with any aggressive media. Should cleaning become
necessary, we recommend carefully cleaning Timken M-Power with a moist cloth. Please
make sure that no moisture enters the lubricator.
TYPE/SYSTEM
Timken M-Power is a programmable, electronic, automatic lubricator with the capability of
discharging various types of grease and oils. The unit's ON/OFF function is directly tied to the
machine or equipment on which it is installed (when equipment is on, M-Power unit is on —
when equipment is off, M-Power unit is off). Each individual unit may be internally set for
1
