Technical Data
±1.5g - 6g Three Axis Low-g
Micromachined Accelerometer
The MMA7260QT low cost capacitive micromachined accelerometer
features signal conditioning, a 1-pole low pass filter, temperature
compensation and g-Select which allows for the selection among 4
sensitivities. Zero-g offset full scale span and filter cut-off are factory set and
require no external devices. Includes a Sleep Mode that makes it ideal for
handheld battery powered electronics.
Features
•
Selectable Sensitivity (1.5g/2g/4g/6g)
Low Current Consumption: 500 μA
•
Sleep Mode: 3 μA
•
•
Low Voltage Operation: 2.2 V – 3.6 V
•
6mm x 6mm x 1.45mm QFN
•
High Sensitivity (800 mV/g @ 1.5g)
•
Fast Turn On Time
•
Integral Signal Conditioning with Low Pass Filter
•
Robust Design, High Shocks Survivability
•
Pb-Free Terminations
•
Environmentally Preferred Package
•
Low Cost
Typical Applications
•
HDD MP3 Player: Freefall Detection
•
Laptop PC: Freefall Detection, Anti-Theft
•
Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass
•
Pedometer: Motion Sensing
•
PDA: Text Scroll
•
Navigation and Dead Reckoning: E-Compass Tilt Compensation
•
Gaming: Tilt and Motion Sensing, Event Recorder
•
Robotics: Motion Sensing
ORDERING INFORMATION
Temperature
Device Name
Range
MMA7260QT
–40 to +105°C
MMA7260QR2
–40 to +105°C
© Freescale Semiconductor, Inc., 2005-2008. All rights reserved.
Package
Package
Drawing
1622-02
QFN-16, Tray
1622-02
QFN-16,Tape & Reel
Document Number: MMA7260QT
Rev 5, 03/2008
MMA7260QT
MMA7260QT: XYZ AXIS
ACCELEROMETER
±1.5g/2g/4g/6g
Bottom View
16 LEAD
QFN
CASE 1622-02
Top View
16
15
14 13
g-Select1
1
g-Select2
2
V
3
DD
V
4
SS
5
6
7
8

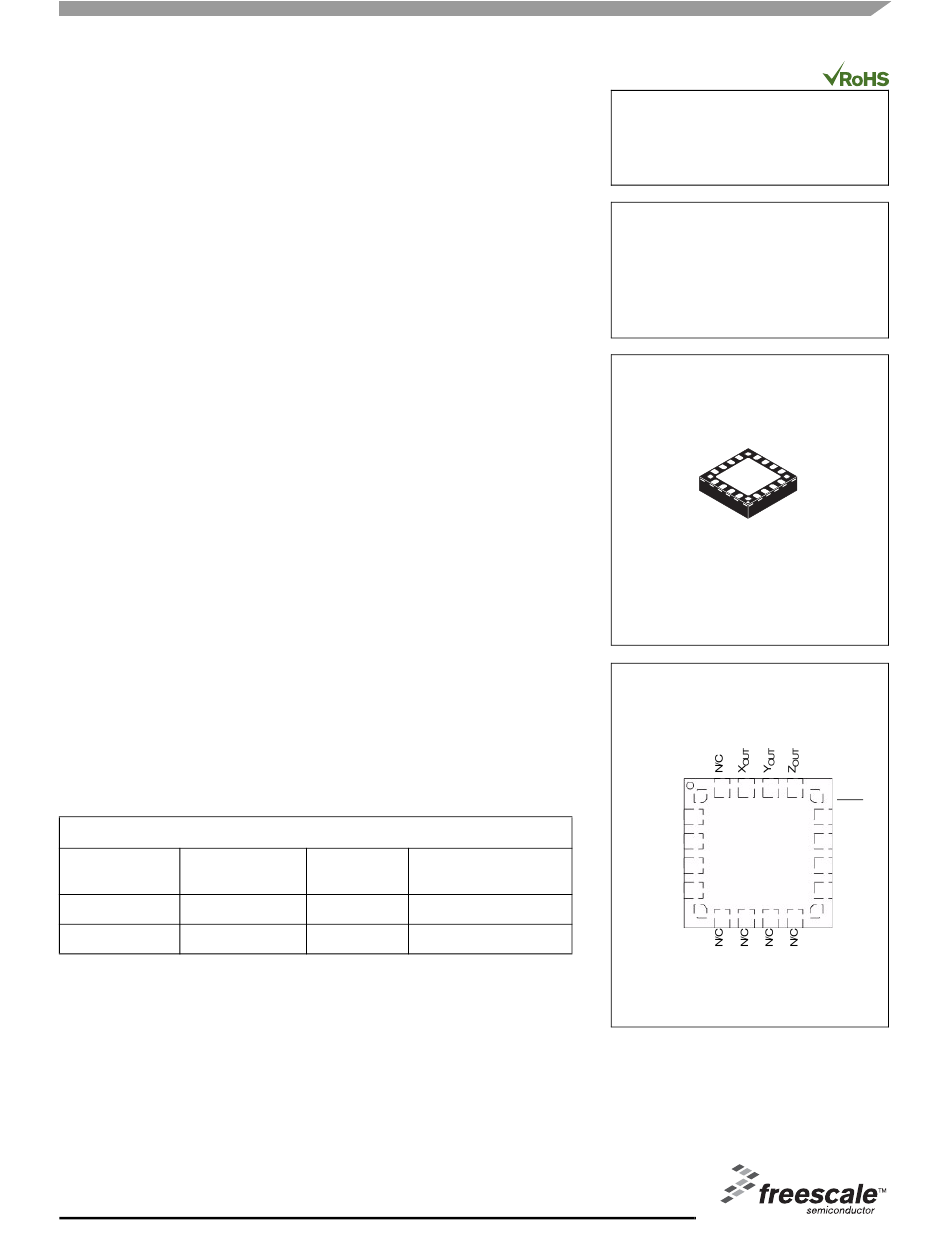

Figure 1. Pin Connections
Sleep
12
Mode
11
N/C
10
N/C
9
N/C
