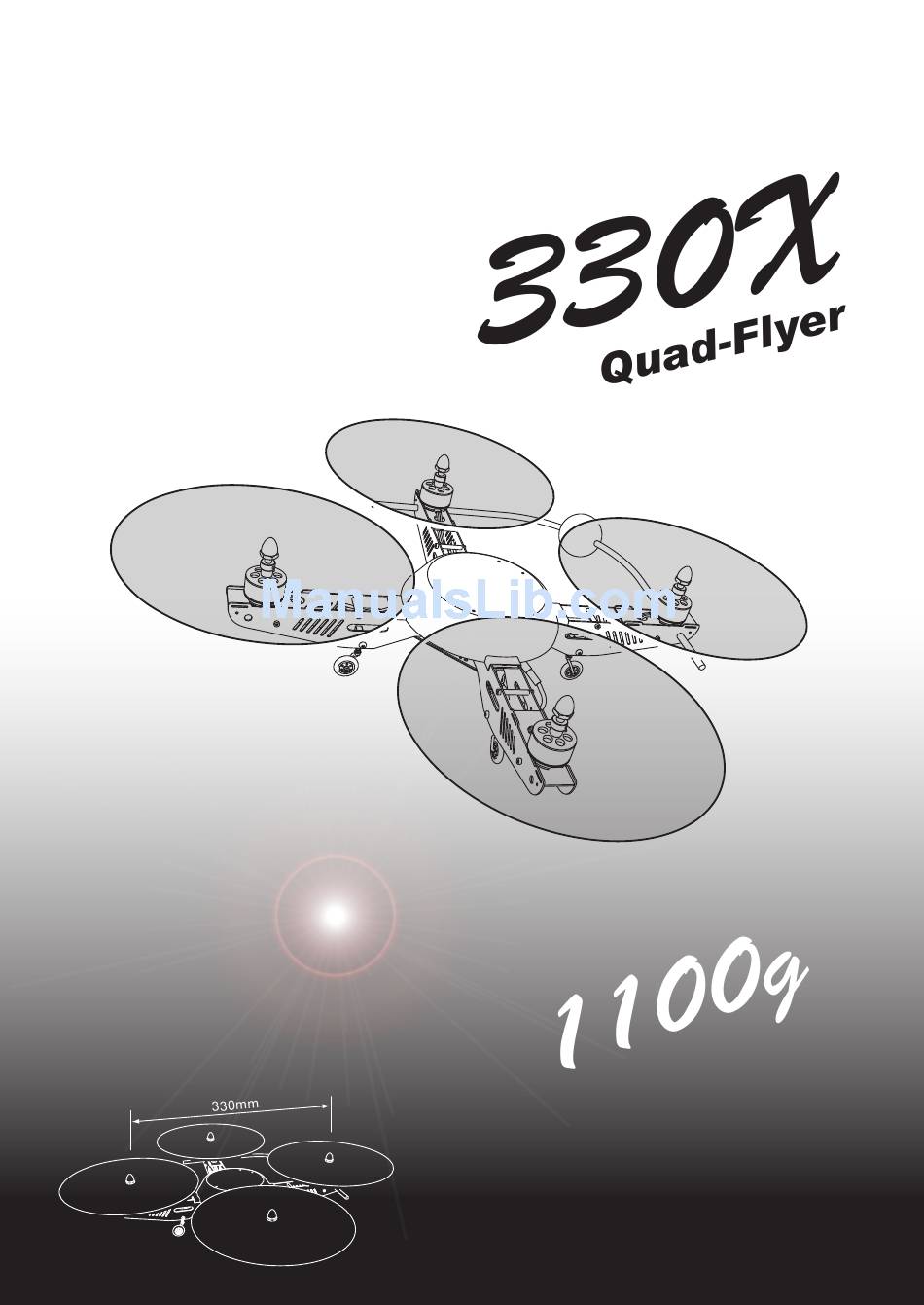

- Page 1 GAUI Max Flying Weight : 8 inch Prop Weight : 400g (without batt.) Battery :2S~3S Lipo 4~5CH radio control system...
- Page 2 GAUI Index 索引 TAI SHIH HOBBY CORPORATION Windshield Mount Assembly 扣件製作 Gear Set Assembly 輪架製作 Main Frame Assembly 機身製作 P2~4 ESC Installing 組裝ESC Motor Installing 組裝馬達 Motor and ESC Wiring P5~6 組裝電源線 GU-344 Installing 組裝GU-344 Receiver Installing 組裝接收機 Props Installing 組裝螺旋槳...
- Page 3 GAUI 內容物 TAI SHIH HOBBY CORPORATION ASSEMBLY INSTRUCTION 說明書 PM2X3.5X20.2...
- Page 4 GAUI Windshield Mount Assembly TAI SHIH HOBBY CORPORATION 扣件製作 Insert the magnet into the hole of each Windshield Mount. Use the CA to glue it at bottom side. 將磁鐵壓入纖維板內,並用瞬間膠塗抹底面(單面即可). GAUI Gear Set Assembly TAI SHIH HOBBY CORPORATION 輪架製作 Assemble the gear set as shown in figure.
- Page 5 GAUI Main Frame Assembly 機身製作 TAI SHIH HOBBY CORPORATION Assemble each Frame Extension as shown in figure. 如圖組合機架 IMPORTANT: Make sure to assemble the Motor Mount correctly and the PM2X3.5X20.2 hole position shoule be the same as shown in figure.
- Page 6 GAUI Main Frame Assembly 機身製作 TAI SHIH HOBBY CORPORATION Assemble the Alu Posts (8 pcs) onto Central Frame as shown in figure. 如圖鎖上八支鋁柱. PM2X3.5X20.2 X8PCS IMPORTANT: Make sure to assemble the Central Mount correctly and the hole position shoule be the same as shown in figure.
- Page 7 GAUI Main Frame Assembly TAI SHIH HOBBY CORPORATION 機身製作 After assembled the Central Frames and the Frame Extensions,use the CA to glue them as shown in figure. 完成機身製作後,需在機架與底板接合處上少許瞬間膠以填補間隙.(如下圖) GAUI ESC Installing TAI SHIH HOBBY CORPORATION 組裝ESC Install each ESC as shown in below, pull out the signal pulg from upper hole and the power plug from lower hole.
- Page 8 GAUI Motor Installing 組裝馬達 TAI SHIH HOBBY CORPORATION Install each Motor as shown in below, tighten each motor onto motor mount with screws M3x3. 將馬達線穿入馬達座之圓孔,並將馬達鎖至馬達座上. M3X3 GAUI Motor and ESC Wiring TAI SHIH HOBBY CORPORATION 組裝電源線 Wiring the Motors and ESCs as shown in below ( Note that the colors of motor wires...
- Page 9 GAUI Power Plug Wiring TAI SHIH HOBBY CORPORATION 組裝電源線 Connect the plugs of ESCs to the 4-in-1 Power Connector. 電源線穿出後,與四個ESC端子相接. GAUI Power Plug Wiring TAI SHIH HOBBY CORPORATION 組裝電源線 After connected the pulgs, put the connectors into the Central Frame Set and attach the Touch Fastener Tape onto the Bottom Fram as shown in figure.
- Page 10 GAUI GU-344 Installing 組裝GU-344 TAI SHIH HOBBY CORPORATION Attach the sponge tapes to the bottom side of GU-344 GYRO, make sure to use the sponge tapes which come with the gyro but not use different sponge tapes for instead. Put each ESC signal plug in GU-344 correctly as shown in figure below.
- Page 11 GAUI Receiver Installing TAI SHIH HOBBY CORPORATION 組裝接收機 Put each signal plug of the GU-344 in receiver correctly as shown in figure below. Bypass the plug with the Green Wire if using the 4CH transmitter, the GAIN Value is able to be adjusted in Step 2 of Page 12.
- Page 12 GAUI Props Installing TAI SHIH HOBBY CORPORATION 組合螺旋槳 Assemble the props / adaptors / spinners as shown in figure below, make sure the marked side of each prop should be upward. 用機鼻將螺旋槳固定在轉接頭上,並用螺絲將轉接頭鎖在馬達軸心的平面上. 8A-MARK M3X3 GAUI Props Installing TAI SHIH HOBBY CORPORATION 組合螺旋槳...
- Page 13 GAUI Windshield Assembly TAI SHIH HOBBY CORPORATION 艙罩製作 Cut the Windshield and use the CA to glue the washers to the positions as shown in figure below. 用剪刀沿記號(內側較清楚)將多餘的部分剪掉,並用瞬間膠將華司再黏至艙罩四側(如下圖). W3X8X1 GAUI Windshield Assembly 艙罩製作 TAI SHIH HOBBY CORPORATION The Windshield is able to be attached to the Body automatically by magnets.
- Page 14 GAUI Nose Ball Assembly 機頭製作 TAI SHIH HOBBY CORPORATION Assemble the Nose Ball and plastic tube then install them to the position between Motor #1 and #4. 用塑膠管將乒乓球固定在機架1及機架4中間. GAUI Battery Installing 組裝電池 TAI SHIH HOBBY CORPORATION Use the CA to glue the Nose Ball to the plastic tube, attach a Touch Fastener Tape to the Battery before flying test.
- Page 15 2.Set the “Reverse function” on your transmitter properly, refer to below diagram for the control direction of each channel for different transmitter brands or check each channel practically to switch each reverse function correctly. 飛行前請先了解你所使用遙控器廠牌,先設 Hitech GAUI Futaba 定命令值的正反向.(若不知道也沒關係,經 AILE 過實際測試後再設定也可以)
- Page 16 GAUI ESC Setting ESC設定 TAI SHIH HOBBY CORPORATION Adjust and unify the starting signal for each ESC before first flight to make sure each motor is run by its ESC with the same output signal. 初次飛行需校正四組ESC訊號的一制性(校正一次即可),否則會有低速啟動時,馬達有些轉有些不轉的現象. 1.Switch on the power of transmitter, set all trims at its neutral point.
- Page 17 GAUI Check Before First Flight 試飛 TAI SHIH HOBBY CORPORATION Move the throttle stick to the lowest position and switch on the power of transmitter, connect the the battery to the 330X and do not move it until the motor come up with 5 acknowledge tones, now it is ready for start.
- Page 18 GAUI Check Before First Flight TAI SHIH HOBBY CORPORATION 試飛 Move the “RUD” stick rightward to check and make sure the 330X rotates as shown in figure below. ( Below figure indicates the “RUD” control stick of the “MODE 1” transmitter ) *右轉指令...
- Page 19 GAUI Check Before First Flight 試飛 TAI SHIH HOBBY CORPORATION After checking all movements of the 330X are controlled correctly by control sticks, move the “THR” stick a little bit upward until the 330X hovers over the ground for 30 cm, if it shakes or wags in hovering,decrease the “GAIN VALUE”...
- Page 20 GAUI Payload Carrying 酬載 TAI SHIH HOBBY CORPORATION For payload carrying (Camera or auxiliary Instruments), it is recommended to use the below optional parts (210815) for M2X5 mounting the payload. X8pcs 21.5mm Plate * 1pc, Post M2 x 3.5mm x 20.2mm * 4pcs, 77.5mm...
- Page 21 GAUI Power Efficiency and Flying Time TAI SHIH HOBBY CORPORATION 效率與時間計算 It is able to use 2S/1400mah~2000mah Lipo for normal flight without payload, it is recommended to use the 3S Lipo for the 330X if the total flying weight is over 550g. Refer to the Power Efficiency Table to select the the battery which come with proper capacity.
- Page 22 GAUI Parts 零件表 TAI SHIH HOBBY CORPORATION 210701 210702 Central Frames Alu Fram Posts PM2x3.5x20.2 Frame Extension Set 210505 PM2X3.5X20.2 鋁柱 玻纖機架 玻纖機身 210510 Alu Gear Post 210905 210405 M2 Screw pack Wheel Set 方型鋁柱 輪架組 M2螺絲組 210400 (GUEC GM-400)
- Page 24 ITEM NO.210000 GAUI TAI SHIH HOBBY CORPORATION TEL:+886-2-86305567 FAX: +886-2-26105567 Website: www.gaui.com.tw E-mail: gaui@gaui.com.tw MADE IN TAIWAM...
