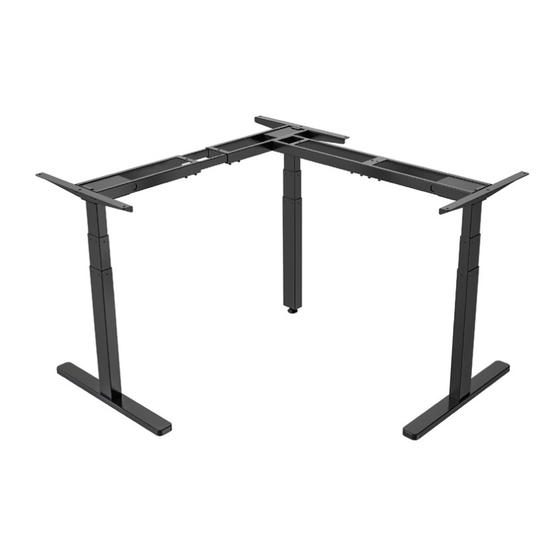

Black Electric Multi Motor Corner Desk Frame
Instruction Manual
SKU: DESK-V130EB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v130eb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V130EB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-V130EB

Summary of Contents for Vivo DESK-V130EB

  • Page 1 Black Electric Multi Motor Corner Desk Frame Instruction Manual SKU: DESK-V130EB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v130eb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Electrical Safety Instructions

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.

  • Page 3: Tools Needed

    TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 264lbs Failure to do so may result in serious injury. (120kg) Drill ASSEMBLY STEPS STEP 1 Loosen, but do not remove, screws in legs (4, 5). Tilt legs up and into frames. Tighten screws with the 4mm Allen wrench (F). STEP 2 Attach feet (2) to side legs using four M6x12 screws (B) for each, then tighten with the 4mm Allen wrench.
  • Page 4 STEP 3 Turn legs right side up. Secure frame on each leg with two M6x16 screws (D) using the 4mm Allen wrench (F). Attach the side brackets (1) to the frames using two M6x16 screws for each and tighten with the 4mm Allen wrench (F). STEP 4 Attach extension frame (6) to leg with frame (corner) using M8x12 screws (E) and tighten with the 5mm Allen...
  • Page 5 STEP 5 Attach your desktop to the assembled desk frame using fourteen M5x16 screws (A). If needed, use desktop connecting plates (H) with eight M5x16 screws to join desktop sections.
  • Page 6 STEP 6 Remove the protective film from the control panel (9). Mount the control panel and control unit (7) to the underside of the desktop using four M5x16 screws (A). Use the extension cords (10, 11) to connect the motors to the control unit, then connect the control panel and power cord (8). Attach cable clips (I) where desired.
  • Page 7 STEP 7 Plug the power cable into an AC wall outlet, then use the control panel to adjust the height. CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit. motion free of balanced for correct cables to allow for full obstacles.
