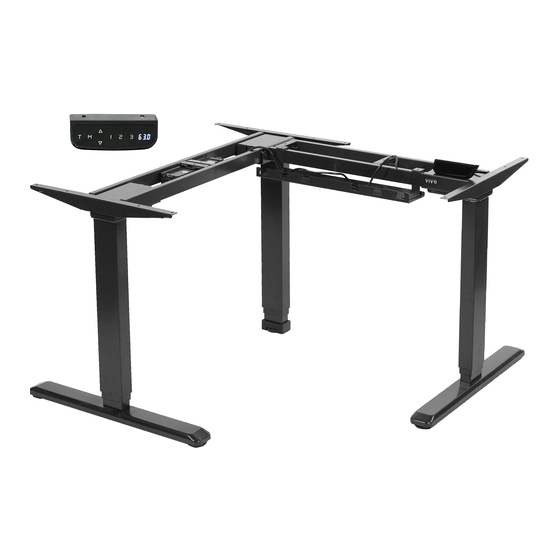

- Page 1 Black Electric Multi Motor Corner Desk Frame Instruction Manual SKU: DESK-V133E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v133e help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 STEP 6 STEP 3 Place the feet (D) on the columns as shown. Place tabletop upside down on the floor. Insert M6x12 bolts (S-A) into the four Place frame assembly upside down on mounting holes on each foot and tighten tabletop, and adjust the crossbars to the with Allen wrench (S-G).
- Page 4 STEP 9 STEP 12 Slide the control unit (H) onto the fixing plate (G). Attach the control panel (L) to the frame using the 3/4” screws (S-C). Add the cable clips (S-E) to organize cables if needed. STEP 10 Fix the hooks (I) to the shelf (E) with M4x6 bolts (S-D). Tighten all bolts.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
