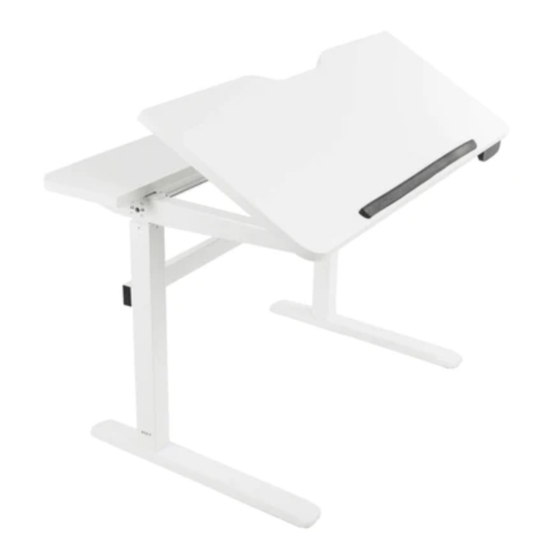

White 48" Electric Drafting Desk
Instruction Manual
SKU: DESK-V101ED
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v101ed
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V101ED
Summary of Contents for Vivo DESK-V101ED
- Page 1 White 48" Electric Drafting Desk Instruction Manual SKU: DESK-V101ED Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v101ed GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 120lbs Failure to do so may result in serious injury. (54.43kg) ASSEMBLY STEPS STEP 1 Assemble lifting columns (G, H) to the desktop (A) using 8 M6x12mm bolts (S-A) and Allen key (S-E). Leave the screws loose with 3mm of thread exposed.
- Page 4 STEP 3 Assemble the feet (E) to the columns using 8 M6x12mm bolts (S-A) and tighten with the Allen key (S-E). Make sure the longer ends of the feet (E) are facing towards the front of the desk. STEP 4 Loosen the knobs on each end of the sync rod (D).
- Page 5 STEP 5 (continued) Mount the shelf to the underside of the desktop using two 5/8" screws (S-D) with a Phillips screwdriver. Rest control unit (F) on shelf. Connect cables for motor, power (K) and control panel (L). STEP 6 Mount the control panel (L) to the desktop using two 5/8"screws (S-D) and tighten with a Phillips screwdriver.
- Page 6 STEP 6 (continued) Remove the backing from the wrist rest (C) and place near the front edge of the desktop. If needed, adjust foot pads to level desk on uneven floor. Lift handle to raise or lower front desktop surface. Lift handle to raise or lower front desktop surface.
- Page 7 CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S AVG. RESOLUTION TIME 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
