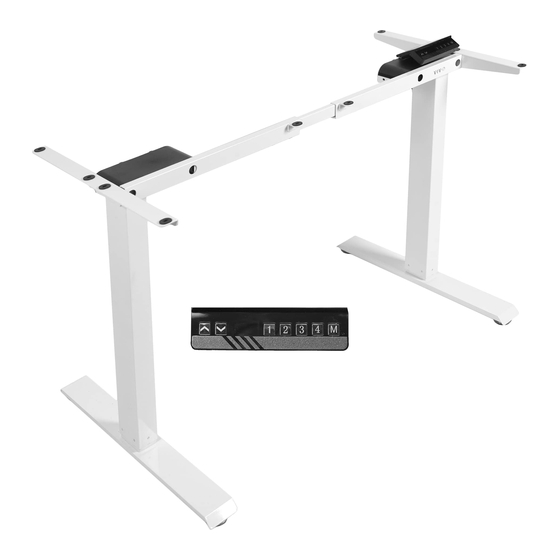

White Electric Dual Motor Desk Frame
Instruction Manual
SKU: DESK-V122EW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v122ew
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo DESK-V122EW
Summary of Contents for Vivo DESK-V122EW
- Page 1 White Electric Dual Motor Desk Frame Instruction Manual SKU: DESK-V122EW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v122ew GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Screwdriver Drill ASSEMBLY STEPS STEP 1 STEP 2 Attach a side bracket (4) to the short end of each Assemble an outer crossbar (2) and inner leg (5) using x2 M6x12 flat head bolts (C) for crossbar (3) to each leg (5) using x2 M6x12 flat each. - Page 4 STEP 3 Mount the feet (6) to the legs (5) using x4 M6x12 bolts (B) for each and tighten with the Allen wrench (E). Screw the foot pads (G) into the feet, then slide the inner crossbars (3) into the outer crossbars (2) to connect the assemblies.
- Page 5 STEP 5 Tighten x4 M6x12 bolts (B) into the outer crossbars (2) to secure the frame width. STEP 6 Place the control unit (8) between the crossbars, making sure the cable from at least one leg (5) is able to reach and connect. Mark screw locations, drill 10mm deep pilot holes using a 3/32” (2.5mm) drill bit, and mount the control unit using x2 M4x15 screws (D).
- Page 6 STEP 7 Connect the AC adapter (9), controller (7) and legs (5) to the control unit (8). If needed, use the extension cable (11) to connect one of the legs. Connect the power cable (10) to the AC adapter. STEP 8 Turn the desk right side up and plug the power cable (10) into an AC power outlet.
- Page 7 CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit. motion free of balanced for correct cables to allow for full obstacles. operation and longer range of vertical motion. life of components. Failure to follow these instructions may result in property damage and/or personal injury.
