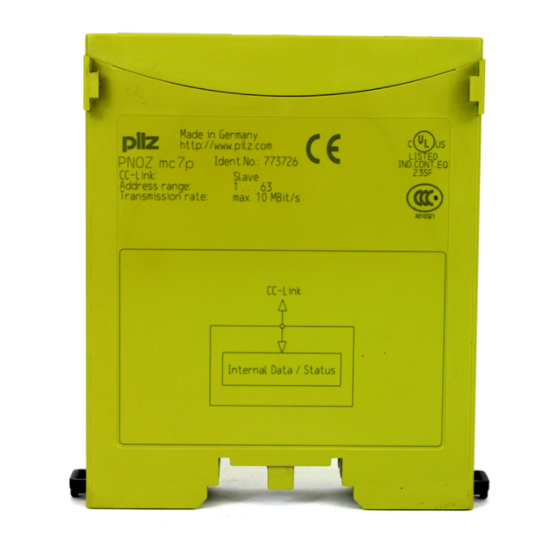

Pilz PNOZ mc7p Manual
For configurable, safe small controllers pnozmulti classic.
Hide thumbs
Also See for PNOZ mc7p:
- Operating manual (18 pages) ,
- Operating instructions manual (9 pages) ,
- Configuration manual (359 pages)
Related Manuals for Pilz PNOZ mc7p
Summary of Contents for Pilz PNOZ mc7p
- Page 1 PNOZ mc7p Configurable, safe small controllers PNOZmulti Classic Operating Manual-1003050-EN-04...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
..............Commissioning ........................General wiring guidelines ......................Interface assignment ........................ Download modified project to the PNOZmulti safety system............ Connection example ......................... Operation ..........................Messages ..........................Technical Details ........................Order reference ........................Product ............................. Accessories ..........................Operating Manual PNOZ mc7p 1003050-EN-04... -
Page 4: Introduction
Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mc7p. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 5 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mc7p 1003050-EN-04...
-
Page 6: Overview
24 - 127 are used they have different properties (see document entitled "Commu- nication Interfaces"). Max. 1 PNOZ mc7p can be connected to the base unit Please refer to the document "PNOZmulti System Expansion" for the PNOZmulti base units that can be connected. -
Page 7: Front View
Overview Front view Legend: LED: – Run – SD – RD – L Err Operating Manual PNOZ mc7p 1003050-EN-04... -
Page 8: Safety
Safety Safety Intended use The fieldbus module PNOZ mc7p is an expansion module of the configurable control sys- tem PNOZmulti. It is used for communication between the configurable control system PNOZmulti and the CC-Link . CC-Link is designed for fast data exchange at field level. The expansion module CC-Link is a passive subscriber (Slave) in CC-Link. -
Page 9: Safety Regulations
PNOZmulti Configurator's online help. Only use these functions once you have read and understood the documentations. Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mc7p 1003050-EN-04... -
Page 10: Function Description
PNOZmulti Configurator. The base unit and the fieldbus module PNOZ mc7p are connected via a jumper. The fieldbus module is also supplied with voltage via this jumper. After the supply voltage is switched on or the control system PNOZmulti is reset, the fieldbus module PNOZ mc7p is configured and started automatically. -
Page 11: Block Diagram
Function description Block diagram FG/PE Operating Manual PNOZ mc7p | 11 1003050-EN-04... -
Page 12: Installation
Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm 22,5 94 (3.70") (0.88") Operating Manual PNOZ mc7p | 12 1003050-EN-04... -
Page 13: Connecting The Base Unit And Expansion Modules
Installation Connecting the base unit and expansion modules You can install a maximum of 1 PNOZ mc7p to the left of the base unit. Connect the base unit and the expansion module as described in the operating instructions for the base units. -
Page 14: Commissioning
The connection to CC-Link is made via a 5-pin screw connector. FG/PE DB DG SLD 1: DA (Channel A) 2: DB (Channel B) 3: DG (Earth) 4: SLD (Cable shield) 5: FG/PE (Functional earth) Operating Manual PNOZ mc7p | 14 1003050-EN-04... -
Page 15: Download Modified Project To The Pnozmulti Safety System
For the commissioning and after every user program change, you must check whether the safety devices are functioning correctly. Connection example CC-Link CC-Link Slave n CC-Link Slave 1 Slave 3 CC-Link Master PNOZ mc7p CC-Link BAUD RATE CC-Link PNOZ mc7p Slave 2 ERR. Operating Manual PNOZ mc7p | 15 1003050-EN-04... -
Page 16: Operation
Operation Operation When the supply voltage is switched on, the PNOZmulti copies the configuration from the chip card. The expansion module PNOZ mc7p is configured and started automatically. Messages Legend LED on LED off Meaning Green Bus connection available Bus connection is not available... -
Page 17: Technical Details
In accordance with the standard EN 60068-2-6 Frequency 10 - 150 Hz Acceleration Shock stress In accordance with the standard EN 60068-2-27 Acceleration Duration 11 ms Max. operating height above sea level 2000 m Operating Manual PNOZ mc7p | 17 1003050-EN-04... - Page 18 Bottom PPO UL 94 V0 Front ABS UL 94 V0 Dimensions Height 94 mm Width 22,5 mm Depth 122 mm Weight 110 g Where standards are undated, the 2020-07 latest editions shall apply. Operating Manual PNOZ mc7p | 18 1003050-EN-04...
-
Page 19: Order Reference
Order reference Order reference Product Product type Features Order no. PNOZ mc7p Fieldbus module, CC-Link 773 716 Accessories Jumper Product type Features Order No. KOP-XE Jumper 774 639 Operating Manual PNOZ mc7p | 19 1003050-EN-04... - Page 20 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
