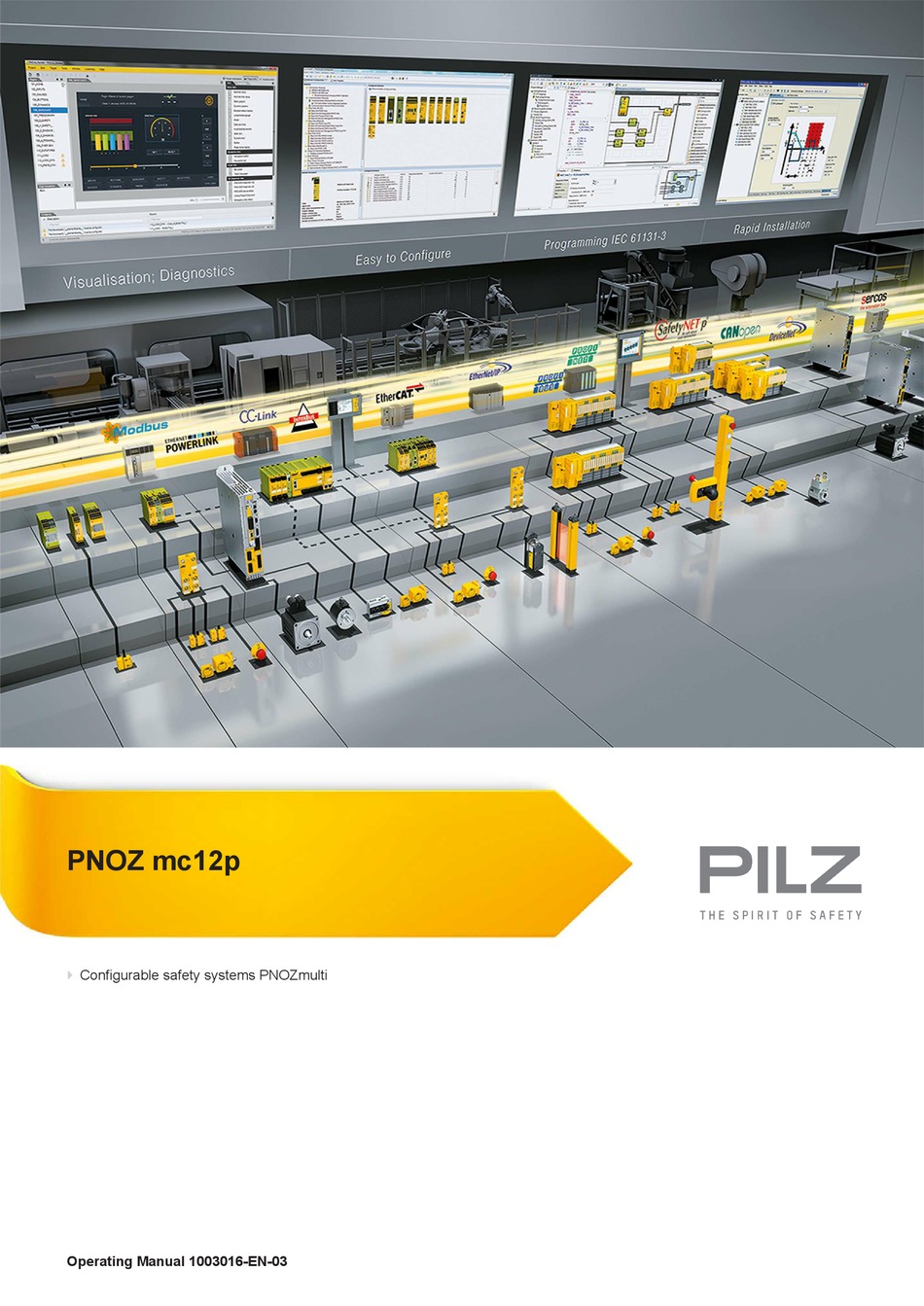

- Page 1 PNOZ mc12p Configurable safety systems PNOZmulti Operating Manual 1003016-EN-03...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Connecting the base unit and expansion modules Section 6 Commissioning Wiring Interface assignment Connection example Download modified project to the PNOZmulti system Section 7 Operation LED indicators Section 8 Technical Details Section 9 Order reference Product Accessories Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 4: Operating Manual Pnoz Mc12P
Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mc12p. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 5 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mc12p 1003016-EN-03...
-
Page 6: Overview Scope
24 - 127 are used they have different properties (see doc- ument entitled "Communication Interfaces"). Max. 1 PNOZ mc12p can be connected to the base unit Please refer to the document "PNOZmulti System Expansion" for the PNOZmulti base units that can be connected. -
Page 7: Front View
Overview Front view Legend: X1, X2 Ethernet POWERLINK interfaces LED: – LINK ACT1 – LINK ACT2 – – S/E (Status/Error) Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 8: Safety
Group (EPSG). The central controller (Managing Node) reads input information from the slaves and writes output information to the slaves as part of each cycle. As well as the cyc- lical transfer of usable data, the expansion module PNOZ mc12p can also be used for dia- gnostic and commissioning functions. -
Page 9: Safety Regulations
Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 10: Function Description
LINK are selected and configured in the PNOZmulti Configurator. The base unit and the fieldbus module PNOZ mc12p are connected via a jumper. The fieldbus module is also supplied with voltage via this jumper. After the supply voltage is switched on or the control system PNOZmulti is reset, the fieldbus module PNOZ mc12p is configured and started automatically. -
Page 11: Block Diagram
Function description Block diagram Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 12: Installation
Damage due to electrostatic discharge! Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm 22,5 94 (3.70") (0.88") Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 13: Connecting The Base Unit And Expansion Modules
Installation Connecting the base unit and expansion modules You can install a maximum of 1 PNOZ mc12p to the left of the base unit. Connect the base unit and the expansion module as described in the operating instructions for the base units. -
Page 14: Commissioning Wiring
Only connect and disconnect the expansion module when the supply voltage is switched off. Interface assignment RJ45 socket 8-pin Standard TD+ (Transmit+) TD- (Transmit-) RD+ (Receive+) n.c. n.c. RD- (Receive-) n.c. n.c. n.c.: Not connected Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 15: Connection Example
PNOZmulti Configurator. Proceed as described in the operat- ing instructions for the base unit. NOTICE For the commissioning and after every program change, you must check whether the safety devices are functioning correctly. Operating Manual PNOZ mc12p 1003016-EN-03... -
Page 16: Operation
When the supply voltage is switched on, the PNOZmulti safety system copies the configur- ation from the chip card. The LEDs “POWER”, “DIAG”, “FAULT”, “IFAULT” and “OFAULT” will light up on the base unit. The expansion module PNOZ mc12p is configured and started automatically. LED indicators Legend LED on... -
Page 17: Technical Details
Vibration In accordance with the standard EN 60068-2-6 Frequency 10,0 - 150,0 Hz Acceleration Shock stress In accordance with the standard EN 60068-2-27 Acceleration 11 ms Duration Max. operating height above sea level 2000 m Operating Manual PNOZ mc12p 1003016-EN-03... - Page 18 27 mm Material Bottom PPO UL 94 V0 Front ABS UL 94 V0 Dimensions Height 94,0 mm Width 22,5 mm Depth 114,0 mm Weight 115 g Where standards are undated, the 2012-06 latest editions shall apply. Operating Manual PNOZ mc12p 1003016-EN-03...
-
Page 19: Order Reference
Order reference Order reference Product Product type Features Order No. PNOZ mc12p Fieldbus module, Ethernet POWERLINK 773 719 Accessories Terminator, jumper Product type Features Order no. PNOZmulti bus terminator Terminator 779 110 KOP-XE Jumper 774 639 Operating Manual PNOZ mc12p 1003016-EN-03... - Page 20 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland +41 62 88979-30 Mexico +43 1 7986263-0...
