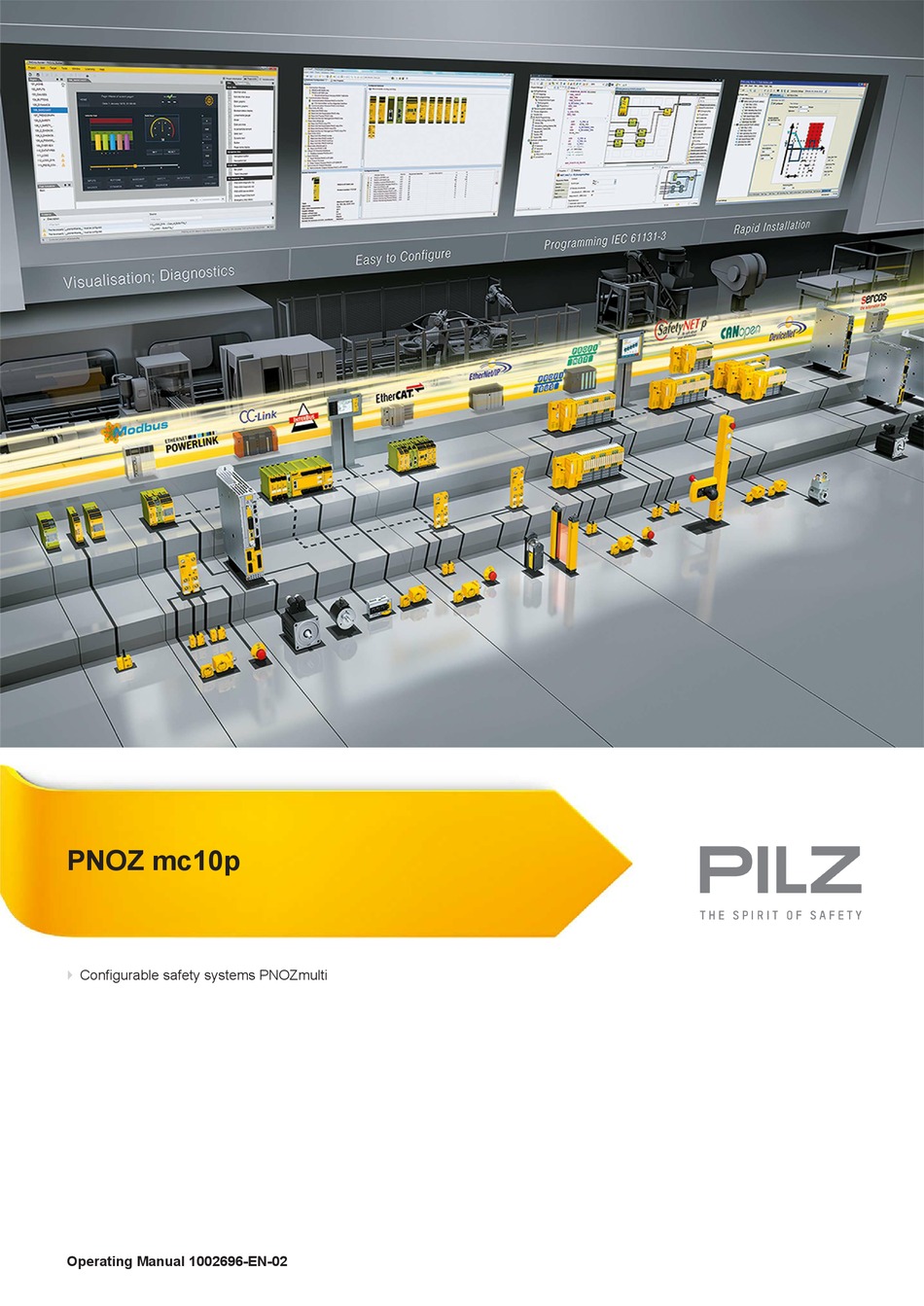

- Page 1 PNOZ mc10p Configurable safety systems PNOZmulti Operating Manual 1002696-EN-02...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Connecting the base unit and expansion modules Section 6 Commissioning General wiring guidelines Interface assignment Download modified project to the PNOZmulti system Connection example Section 7 Operation Messages Section 8 Technical details Section 9 Order reference Operating Manual PNOZ mc10p 1002696-EN-02... -
Page 4: Operating Manual Pnoz Mc10P
Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mc10p. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 5 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mc10p 1002696-EN-02...
-
Page 6: Overview Scope
24 - 127 are used they have different properties (see document entitled "Communication Interfaces"). Max. 1 PNOZ mc10p can be connected to the base unit Please refer to the document "PNOZmulti System Expansion" for the PNOZmulti base units that can be connected. - Page 7 Overview Legend X1, X2: sercos III interfaces LED: – LINK ACT1 – LINK ACT2 – – Operating Manual PNOZ mc10p 1002696-EN-02...
-
Page 8: Safety
Sercos III is designed for fast data exchange in the field of Motion Control. The expansion module PNOZ mc10p is a passive sercos III subscriber (Slave). The base functions of com- munication with sercos III correspond to the guidelines of the sercos International (SI) user group. -
Page 9: Safety Regulations
Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mc10p 1002696-EN-02... -
Page 10: Function Description
PNOZmulti Configurator. The base unit and the fieldbus module PNOZ mc10p are connected via a jumper. The fieldbus module is also supplied with voltage via this jumper. After the supply voltage is switched on or the control system PNOZmulti is reset, the fieldbus module PNOZ mc10p is configured and started automatic- ally. -
Page 11: Block Diagram
Byte 1: Bits 0 … 7 Byte 2: Bits 0 … 7 The number of virtual inputs and outputs can be extended to 128 (see document "Commu- nication Interfaces" in the section entitled "Fieldbus modules") Block diagram Operating Manual PNOZ mc10p 1002696-EN-02... -
Page 12: Installation
Damage due to electrostatic discharge! Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm 22,5 94 (3.70") (0.88") Operating Manual PNOZ mc10p 1002696-EN-02... -
Page 13: Connecting The Base Unit And Expansion Modules
Installation Connecting the base unit and expansion modules You can install a maximum of 1 PNOZ mc10p to the left of the base unit. Connect the base unit and the expansion module as described in the operating instructions for the base units. -
Page 14: Commissioning
Only connect and disconnect the expansion module when the supply voltage is switched off. Interface assignment RJ45 socket 8-pin Standard TD+ (Transmit+) TD- (Transmit-) RD+ (Receive+) n.c. n.c. RD- (Receive-) n.c. n.c. n.c.: Not connected Operating Manual PNOZ mc10p 1002696-EN-02... -
Page 15: Download Modified Project To The Pnozmulti System
For the commissioning and after every program change, you must check whether the safety devices are functioning correctly. Connection example sercos III Master sercos III sercos III sercos III Slave 1 Slave 2 Slave 3 Operating Manual PNOZ mc10p 1002696-EN-02... -
Page 16: Operation
The LEDs “POWER”, “DIAG”, “FAULT”, “IFAULT” and “OFAULT” will light up on the base unit. The expansion module PNOZ mc10p is configured and started automatically. The LED "S3" displays the status of PNOZ mc10p at sercos III. Messages... - Page 17 (S-DEV.Bit15) is act- ive in the Device status, min. 2 s. sercos III communication faulty or disturbed (see SCP Status Codes Class Error) orange Identification (triggered by C_DEV. Bit 15 in Device Control or SIP identification request) Operating Manual PNOZ mc10p 1002696-EN-02...
-
Page 18: Technical Details
Vibration In accordance with the standard EN 60068-2-6 Frequency 10,0 - 150,0 Hz Acceleration Shock stress In accordance with the standard EN 60068-2-27 Acceleration Duration 11 ms Max. operating height above sea level 2000 m Operating Manual PNOZ mc10p 1002696-EN-02... - Page 19 27 mm Material Bottom PPO UL 94 V0 Front ABS UL 94 V0 Dimensions Height 94,0 mm Width 22,5 mm Depth 114,0 mm Weight 125 g Where standards are undated, the 2012-04 latest editions shall apply. Operating Manual PNOZ mc10p 1002696-EN-02...
-
Page 20: Order Reference
Order reference Order reference Order reference Product type Features Order no. PNOZ mc10p Fieldbus module, sercos III 773 715 Terminator, jumper Product type Features Order no. PNOZmulti bus terminator Terminator 779 110 KOP-XE Jumper 774 639 Operating Manual PNOZ mc10p 1002696-EN-02... - Page 21 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland +41 62 88979-30 Mexico +43 1 7986263-0...
