PNOZ mc5.1p
}
Configurable safety systems PNOZmulti
Operating Manual 21248-EN-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNOZ mc5.1p and is the answer not in the manual?

Questions and answers

Summary of Contents for Pilz PNOZ mc5.1p

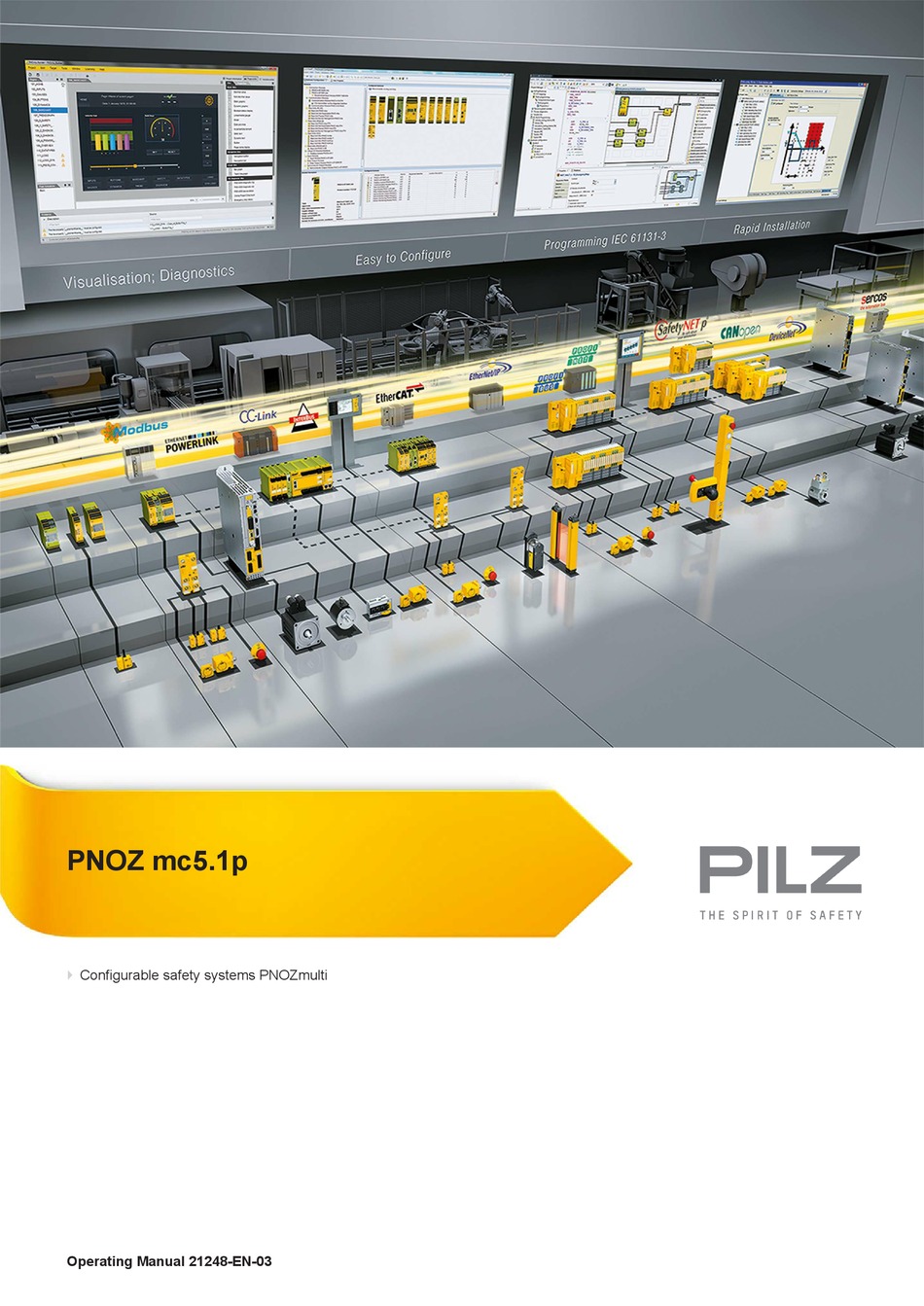

  • Page 1 PNOZ mc5.1p Configurable safety systems PNOZmulti Operating Manual 21248-EN-03...
  • Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
  • Page 3: Table Of Contents

    Commissioning Preparing for commissioning Preparing for operation INTERBUS interface Setting the transmission rate Connecting the supply voltage Download modified project to the PNOZmulti safety system Connection example Section 7 Operation Messages Section 8 Technical Details Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 4 Contents Section 9 Order reference Product Accessories Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 5: Introduction

    Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mc5.1p. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
  • Page 6 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 7: Overview

    Transmission rate, selectable between 500 kBit/s and 2 MBit/s Status indicators for communication with INTERBUS and for errors F-SMA connection technology Max. 1 PNOZ mc5.1p can be connected to the base unit In the PNOZmulti Configurator, 24 inputs (standard) and 24 outputs (standard) can be configured for communication via a fieldbus.
  • Page 8: Front View

    Overview Front view Legend IBS IN Remote bus IN Transmitter Receiver IBS OUT Remote bus OUT Transmitter Receiver LEDs: CR/CC, BA, RD, TR, FO1, FO2 Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 9: Safety

    Safety Intended use The fieldbus module PNOZ mc5.1p is an expansion module of the configurable control sys- tem PNOZmulti. It is used for communication between the configurable control system PNOZmulti and INTERBUS LWL. INTERBUS LWL is designed for fast data exchange at field level.
  • Page 10: Safety Regulations

    Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 11: Function Description

    PNOZmulti Configurator. The base unit and PNOZ fieldbus module PNOZ mc5.1p are con- nected via a jumper. The fieldbus module is also supplied with voltage PNOZ mc5.1p via this jumper. After the supply voltage is switched on or the safety system PNOZmulti is re- set, the fieldbus module PNOZ mc5.1p is configured and started automatically.
  • Page 12: Block Diagram

    Function description Block diagram IBS IN IBS OUT Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 13: Installation

    Damage due to electrostatic discharge! Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm 22,5 94 (3.70") (0.88") Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 14: Connecting The Base Unit And Expansion Modules

    Installation Connecting the base unit and expansion modules You can install a maximum of 1 PNOZ mc5.1p to the left of the base unit. Connect the base unit and the expansion module as described in the operating instructions for the base units.
  • Page 15: Commissioning

    Only connect and disconnect the expansion module when the supply voltage is switched off. The fieldbus module PNOZ mc5.1p features F-SMA connection technology for fibre-optic cables. The visible light of the FO sender LED presents no danger to human skin or eyes.
  • Page 16: Interbus Interface

    It is possible to define which inputs and outputs on the safety system will communicate with INTERBUS FO. The PNOZ mc5.1p features RX and TX F-SMA screw connections for IBS IN and RX and TX for IBS OUT for connecting to the INTERBUS FO.
  • Page 17: Download Modified Project To The Pnozmulti Safety System

    The sender and receiver of the incoming and outgoing remote buses are configured in a crossover formation. Cover unused connections with a protective cap. PNOZ mc5.1p INTERBUS INTERBUS INTERBUS INTERBUS Master Slave 1 Slave 3 Slave n INTERBUS Slave 2 Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 18: Operation

    When the supply voltage is switched on, the PNOZmulti safety system copies the configur- ation from the chip card. The LEDs “POWER”, “DIAG”, “FAULT”, “IFAULT” and “OFAULT” will light up on the base unit. The expansion module PNOZ mc5.1p is configured and started automatically. Messages Legend LED on...
  • Page 19: Technical Details

    Acceleration Shock stress In accordance with the standard EN 60068-2-27 Acceleration Duration 11 ms Max. operating height above sea level 2000 m Airgap creepage In accordance with the standard EN 61131-2 Overvoltage category Pollution degree Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 20 27 mm Material Bottom PPO UL 94 V0 Front ABS UL 94 V0 Dimensions Height 94,0 mm Width 22,5 mm Depth 121,0 mm Weight 145 g Where standards are undated, the 2007-05 latest editions shall apply. Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 21: Order Reference

    Order reference Order reference Product Product type Features Order No. PNOZ mc5.1p Fieldbus module, INTERBUS FO 773 728 Accessories Jumper Product type Features Order No. KOP-XE Jumper 774 639 Operating Manual PNOZ mc5.1p 21248-EN-03...
  • Page 22 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
