Jumper Settings

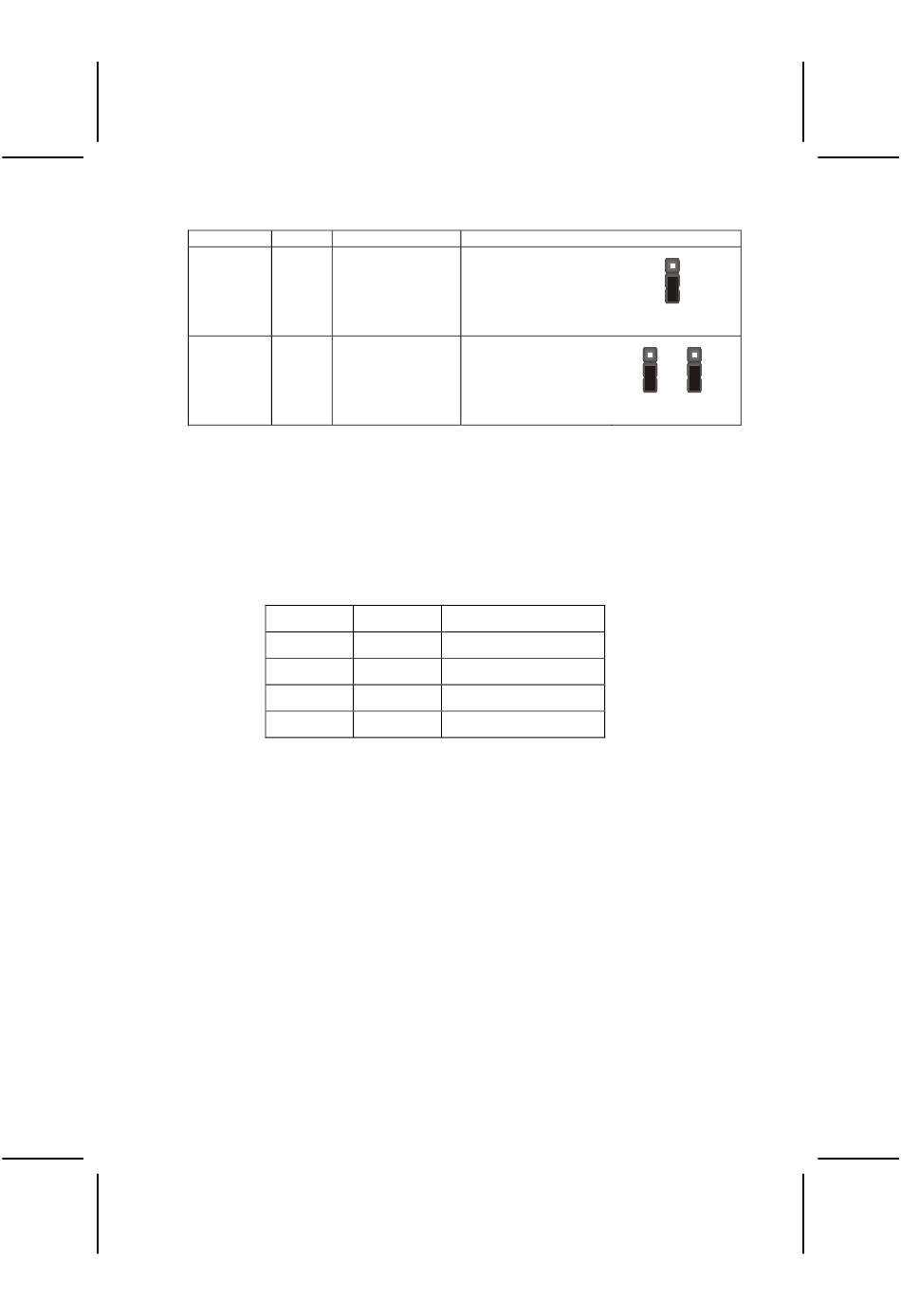

Jumper Type
JP1 3-pin Clear CMOS
JP2 & JP3 3-pin CPU Frequency
select jumper
JP1 – Clear CMOS Jumper
Use this jumper to clear the contents of the CMOS memory. You may need to
clear the CMOS memory if the settings in the Setup Utility are incorrect and
prevent your motherboard from operating. To clear the CMOS memory, dis-
connect all the power cables from the motherboard and then move the jumper
cap into the CLEAR setting for a few seconds.
JP2 & JP3 – CPU Frequency Select Jumper
This jumper enables you to set the CPU frequency.
JP2
Short 1-2
Short 2-3
Short 2-3
Short 1-2
Description
1-2: Normal
2-3: Clear CMOS
See table on following
page for settings.
JP3 CPU Frequency
Short 1-2 100MHz
Short 1-2 133MHz
Short 2-3 166 MHz
Short 2-3 200 MHz
18
Setting (default)
1
JP1
1 1
JP2 JP3
