5.

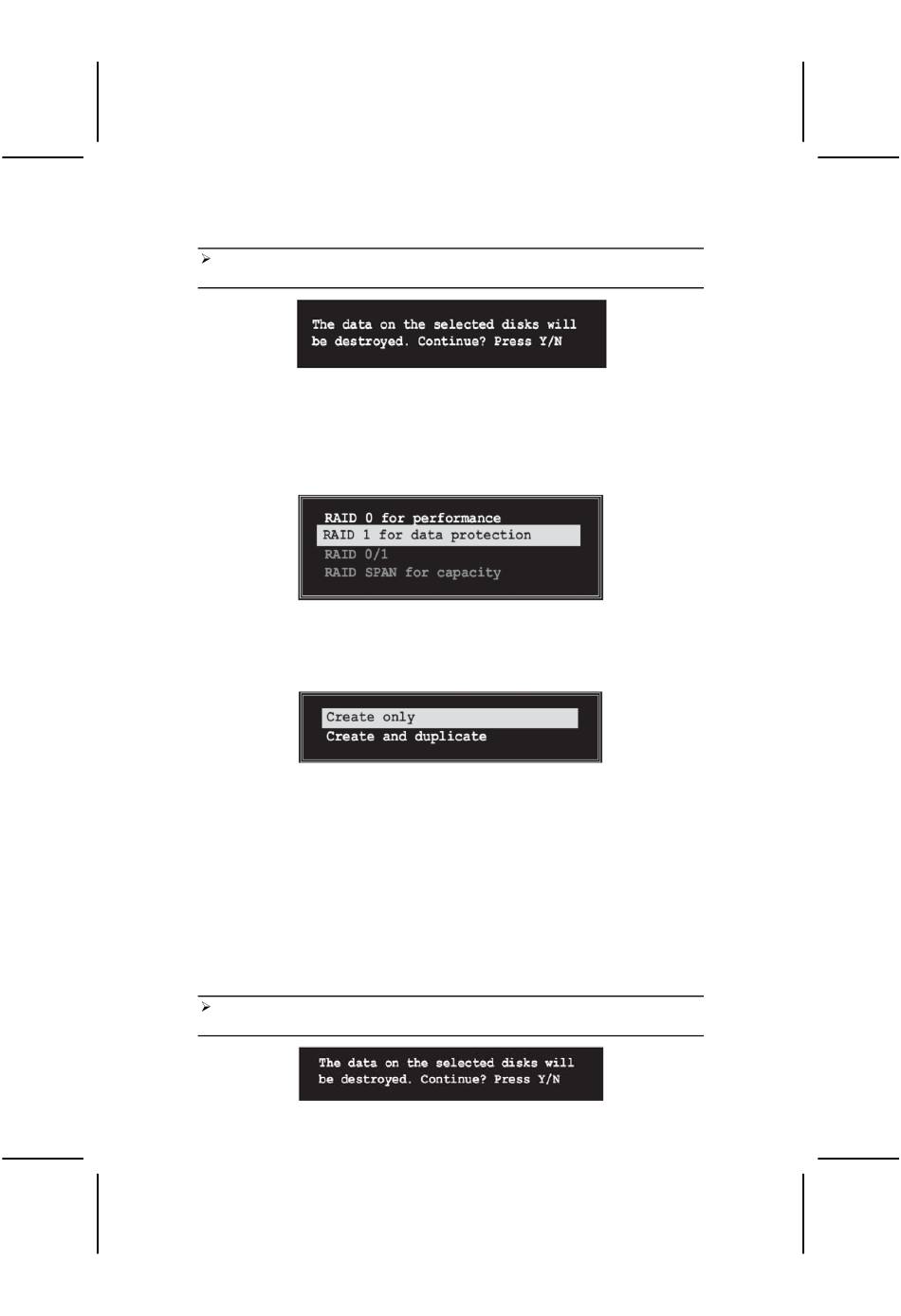

Select Start Create Process and press <Enter> to setup hard disk for
RAID system. The following confirmation appears:
The same confirmation message appears when the Auto Setup for Perform-
ance option is selected.
Press "Y" to confirm or "N" to return to the configuration options.
RAID 1 for data protection
1.
Select the second option item Array Mode, then press the <Enter>
key. The RAID system setting pop-up menu appears.
2.
Select RAID 1 for data protection from the menu and press <Enter>.
Select next task from pop-up menu. The task Create only creates the
mirrored set without creating a backup. Create and duplicate creates
both mirrored set and backup.
3.
Select task and press <Enter>. The screen returns to Create Array
menu items. From this point, you may choose to auto-configure the
RAID array by selecting Auto Setup for Data Security or manually
configure the RAID array for mirrored sets. If you want to manually
configure the RAID array continue with next step, otherwise, proceed
to step #5.
4.
Select Select Disk Drives, then press <Enter>. Use arrow keys to se-
lect disk drive/s, then press <Enter> to mark selected drive. (An
asterisk is placed before a selected drve.)
5.
Select Start Create Process and press <Enter> to setup hard disk for
RAID system. The following confirmation message appears:
The same confirmation message appears when the Auto Setup for Perform-
ance option is selected.
70
