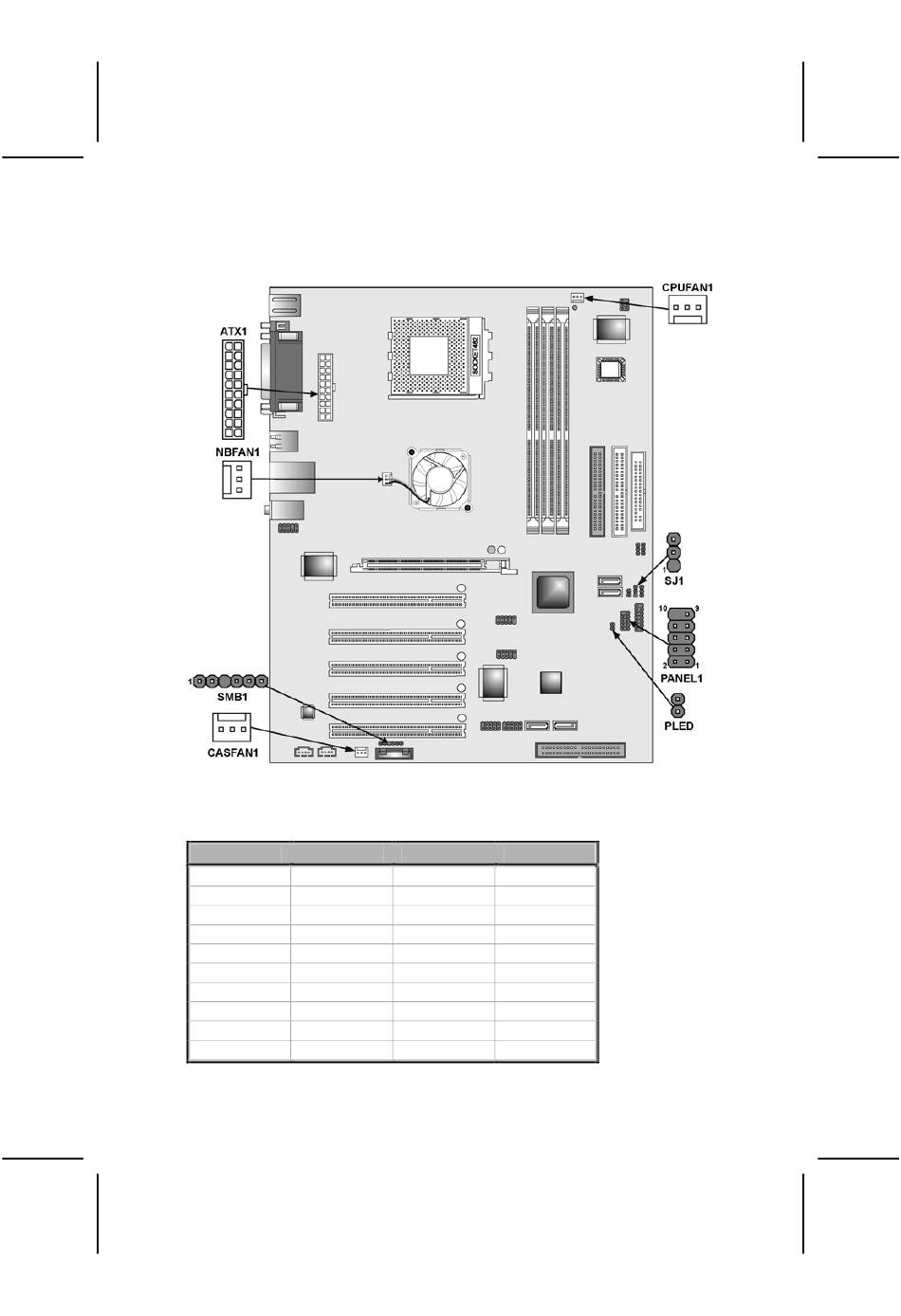

Connecting Case Components

After you have installed the motherboard into a case, you can begin connect-
ing the motherboard components. Refer to the following:
ATX1: ATX 20-pin Power Connector
Connect the standard power supply connector to ATX1.
Pin Signal Name
1 +3.3V
2 +3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PWRGD
9 +5VSB
10 +12V
Pin Signal Name
11 +3.3V
12 -12V
13 Ground
14 PS ON#
15 Ground
16 Ground
17 Ground
18 +5V
19 +5V
20 +5V
19
