- Page 1 Full P67 Rugged Display R15L100-67C3HB G-Win Series User Manual Document Version 1.0 Document Part Number: 9152150I1007...
-
Page 2: Table Of Contents
15" G-Win Rugged Display User Manual Contents Preface ..............................3 About This User Manual ......................... 7 Chapter 1: Introduction .......................... 8 1.1 Introduction ..........................9 1.3 Package Contents ........................9 1.4 Description of Parts ....................... 10 1.5 Physical Buttons and LED Indicators..................11 Chapter 2: Hardware Installation ...................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 15" G-Win Rugged Display User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
- Page 6 15" G-Win Rugged Display User Manual Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including ...
-
Page 7: About This User Manual
About This User Manual About This User Manual This User Manual provides information about using the Winmate® 15-inch G-Win Rugged Display. This User Manual applies to model number R15L100-67C3HB. The documentation set for the 15-inch G-Win Rugged Display R15L100-67C3HB provides information for specific user needs, and includes: ... -
Page 8: Chapter 1: Introduction
15" G-Win Rugged Display User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the Display in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 9: Introduction

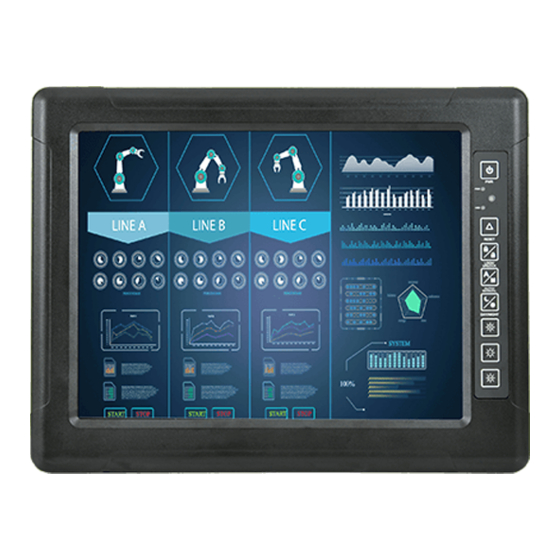

Chapter 1: Introduction 1.1 Introduction Congratulations on purchasing 15-inch G-Win Rugged Display R15L100-67C3HB. Winmate IP67 series display is designed in a very robust and waterproof (IP67/NEMA 6) aluminum housing. Withstanding even the highest demands of all-day field use, and protected against shock and vibration. The robust design fits the demands for every harsh environment applications such as logistics, transportation/ fleet management, heavy vehicles, utility and also outdoor usage. -
Page 10: Description Of Parts
15" G-Win Rugged Display User Manual 1.4 Description of Parts This section describes appearance, connectors’ layout and mechanical dimensions of display. Notice that this is a simplified drawing and some components are not marked in detail. Please contact our sales representative if you need further product information. -
Page 11: Physical Buttons And Led Indicators
Chapter 1: Introduction 1.5 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the front side of the Display. Physical Buttons Icon Button Function Power Turn On or turn Off the Display. Menu Opens main menu. Tap the button once to automatically adjust brightness mode. -
Page 12: Chapter 2: Hardware Installation
15" G-Win Rugged Display User Manual Chapter 2: Hardware Installation This chapter provides hardware installation instructions, mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. -
Page 13: Cleaning The Monitor
Chapter 2: Hardware Installation 2.1 Cleaning the Monitor Before cleaning: Make sure the device is turned off. Disconnect the power cable from any AC outlet. When cleaning: Never spray or pour any liquid directly on the screen or case. ... -
Page 14: Connecting To Other Devices
15" G-Win Rugged Display User Manual 2.3 Connecting to Other Devices This Display comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. To ensure the waterproof function can work properly, make sure that the protective caps and have been securely tightened whenever the connectors are not used. -
Page 15: Connector Description
Chapter 2: Hardware Installation 2.4 Connector Description The display features M21 type connectors with protective caps and has full IP67 rating. 2.4.1 Power Input Connector Display has M21 type 3 pin male power input connector which accepts 9-36 V DC power input. Use waterproof power cable to connect the Display to the source of power. -
Page 16: Rs-232/ Usb Connector For Touch
15" G-Win Rugged Display User Manual 2.4.2 RS-232/ USB Connector for Touch Display has M21 type 10 pin male RS-232 or USB connector for touch based on your order. Use waterproof serial/ USB cable to connect the touch. RS-232 Cable USB Cable... -
Page 17: Vga Connector
Chapter 2: Hardware Installation 2.4.3 VGA Connector Display has M21 type 10 pin male VGA connector for touch. Use waterproof serial cable to connect the Display to external computer. VGA Cable... -
Page 18: Dvi Connector
15" G-Win Rugged Display User Manual 2.4.4 DVI Connector The Display has M21 type15 pin video connector. Use waterproof DVI cable to connect the Display to the source of video. Notice that DVI is an optional connector. DVI Cable... -
Page 19: Video Connector
Chapter 2: Hardware Installation 2.4.5 Video Connector The Display has M21 type10 pin video connector. Use waterproof Video cable to connect the Display to the source of video. Notice that Video is an optional connector. Video Cable... -
Page 20: Chapter 3: Mounting
15" G-Win Rugged Display User Manual Chapter 3: Mounting This chapter describes how to mount the device. -
Page 21: Vesa Mount
This device supports VESA Mount (100 x 100 mm). Mounting Instruction: Use Philips M6 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mount accessories are not supplied by Winmate. -
Page 22: Dash/ Yoke Mount
15" G-Win Rugged Display User Manual 3.2 Dash/ Yoke Mount You can purchase mounting bracket from Winmate as an optional accessory. Part Number: 99KK15A00001 Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw hole for each other. - Page 23 Chapter 3: Mounting 4. Loosen the hand-screw adjustment tool, then you can adjust product angle on the stand. Then screw the product tightly again to secure the stand position. Desk Stand Dimensions:...
-
Page 24: Chapter 4: Operating The Device
15" G-Win Rugged Display User Manual Chapter 4: Operating the Device This chapter tells you how to operate the display. -
Page 25: Turning On/ Off The Display
Chapter 4: Operating the Device 4.1 Turning On/ Off the Display To turn on the display: 1. Remove the protective cap of the power connector. 2. Connect power cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection. -
Page 26: Appendix
15" G-Win Rugged Display User Manual Appendix This section contains additional information about the Display. -
Page 27: Product Specifications
Appendix Product Specifications Model Name R15L100-67C3HB 15” Size Resolution 1024 x 768 Brightness 1000 nits Contrast Ratio 700:1 Display Viewing Angle -88~88 (H) ; -88~88 (V) Active Area 304.1 (H) x 228.1 (V) Max Colors 16.2M (8 bit) Touch Optional: 5 Wire Resistive Touch Power 1 x Power (M21, 3 pin) 1 x VGA (M21, 10 pin) - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
