Mocka Mischa Bookcase Assembly Instructions Manual

Mischa Bookcase
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
dowel screw bolt
x16
x42 x44
K
I J
slide rail
small bolt wedge
x4 x16 x12
Q R
leg Allen key long bolt
bracket x4
x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D E F
small slide rail
locking
screw x40 x4
nut x44
M
L
screw long handle
x12 scerw x16 bolt x8
S T U
screw long dowel
x4 x8 x1

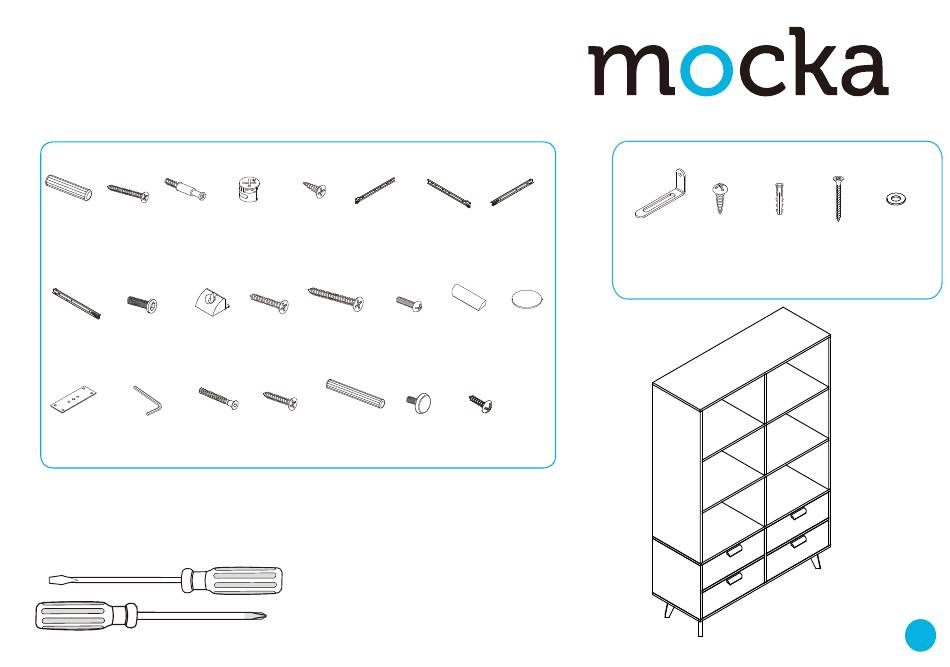

Hardware Supplied
Phillips & Flathead screwdrivers
required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G H
slide rail slide rail
x4 x4
N P
O
felt
handle
x4 pad x4
P1 P2
height screw
adjuster x5
x1
V W X
bracket screw wall
x2 x2 anchor
x2
Wall Strap
Y Z
wall washer
screw x2
x2
1
