Rear Mounting Position (Alternate) - Maximum Controls MAX 1500 PRO Installation Manual

1B

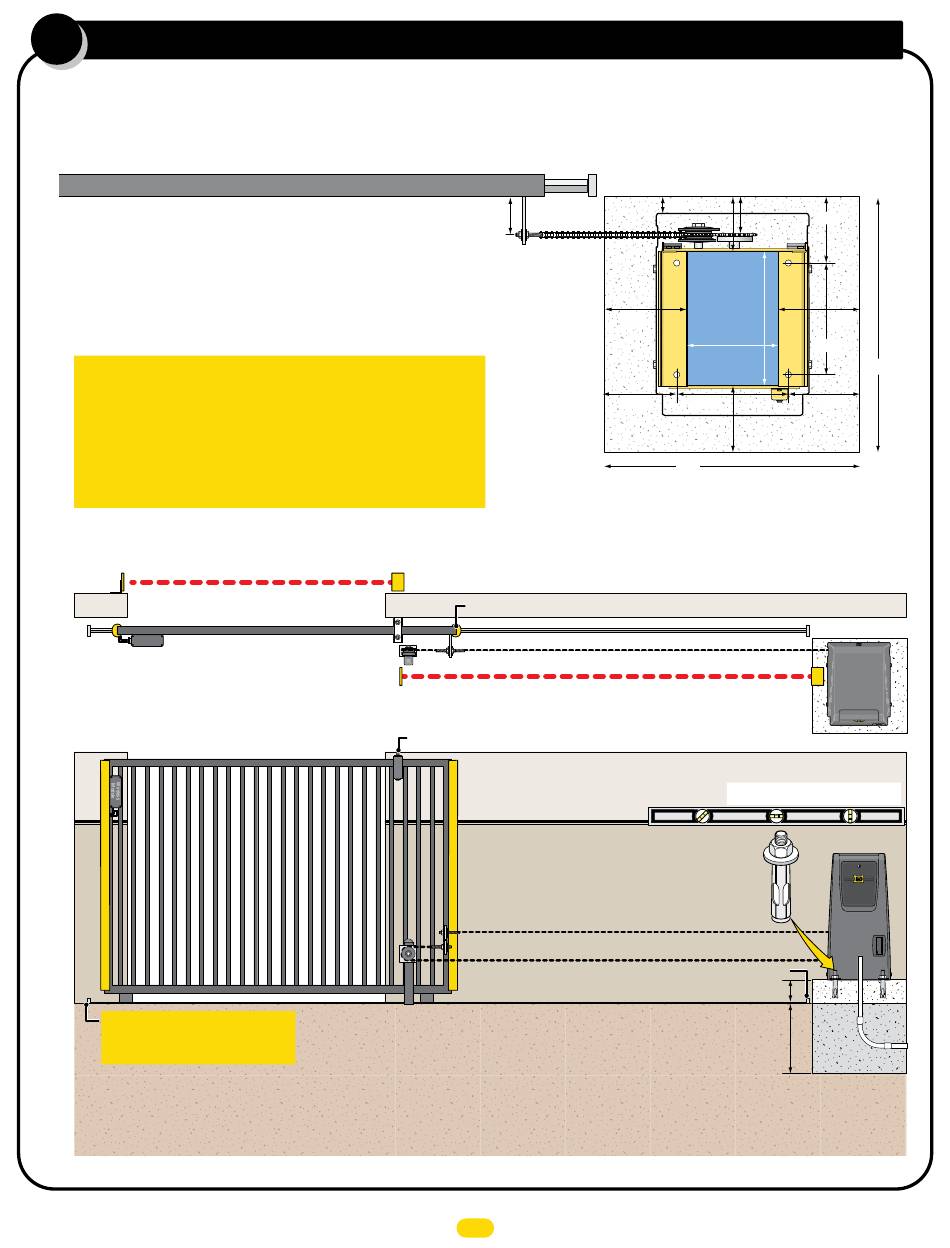

rear mounting position (alternate)

The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.
The chain is not visible when looking from outside of the property.
Conduit Guidelines and Suggestions
REQUIRED - AC input power wire.
•
REQUIRED - Entrapment protection OPENING and CLOSING photocell and/or sensing edges.
•
In-ground loop wires.
•
UL 325 2018 Standard
Safety sensors (Photocell or contact EDGE) must be
installed in BOTH opening and closing direction of gate
movement where entrapment or pinch point exist. TWO
safety sensor min. (N.C. or 10K type) MUST be installed or
operator will NOT function. All sensors must be UL325,
2018 compliant. See pages 7-8.
Outside Property
CLOSING Photocell Beam
Wireless
Gate in Closed Position
Module
CLOSING Sensing
Edge with Wireless
Module
Inside Property
CLOSING
Sensing
Edge with
Wireless
Module
Physical stops MUST
IMPORTANT:
be installed on BOTH ends of rail to
keep gate from traveling off of rail.
V-Rail
2" Gate Frame
4"
Operator Position on Concrete Pad
OPENING Sensing Edge with Wireless Module
OPENING Photocell Beam
Guide rollers MUST be Installed to keep gate upright.
OPENING Sensing Edge
with Wireless Module
See next page for chain information.
6" above ground to avoid any flooding of the operator.
Concrete Depth Note: The heavier the gate, the deeper the concrete
pad should be. At least two feet recommended for heavier gate.
UL 325 2018 Standard - MAX 1500 PRO/2200 PRO/F18 PRO Matrix III Install Version 7d
3
Physical Stop
1.5"
5" 4"
12.75"
Conduit
7.5"
Area
8.625"
6.75"
10.5"
Cover
6.5"
24"
Operator in Rear Position
Illustrations not to scale
Photcell to OPEN ONLY NC Input
Operator MUST be level.
Secure gate operator to
concrete pad with four
1/2
(4) 1/2" x 3" (min)
sleeve anchors.
Physical Stop
Check local building
codes in your area for
depth of concrete
before installation.
6.2"
7.5"
10.5"
24"
6.75"
Concrete Pad
Conduit
Run
Input Power
Concrete Pad
