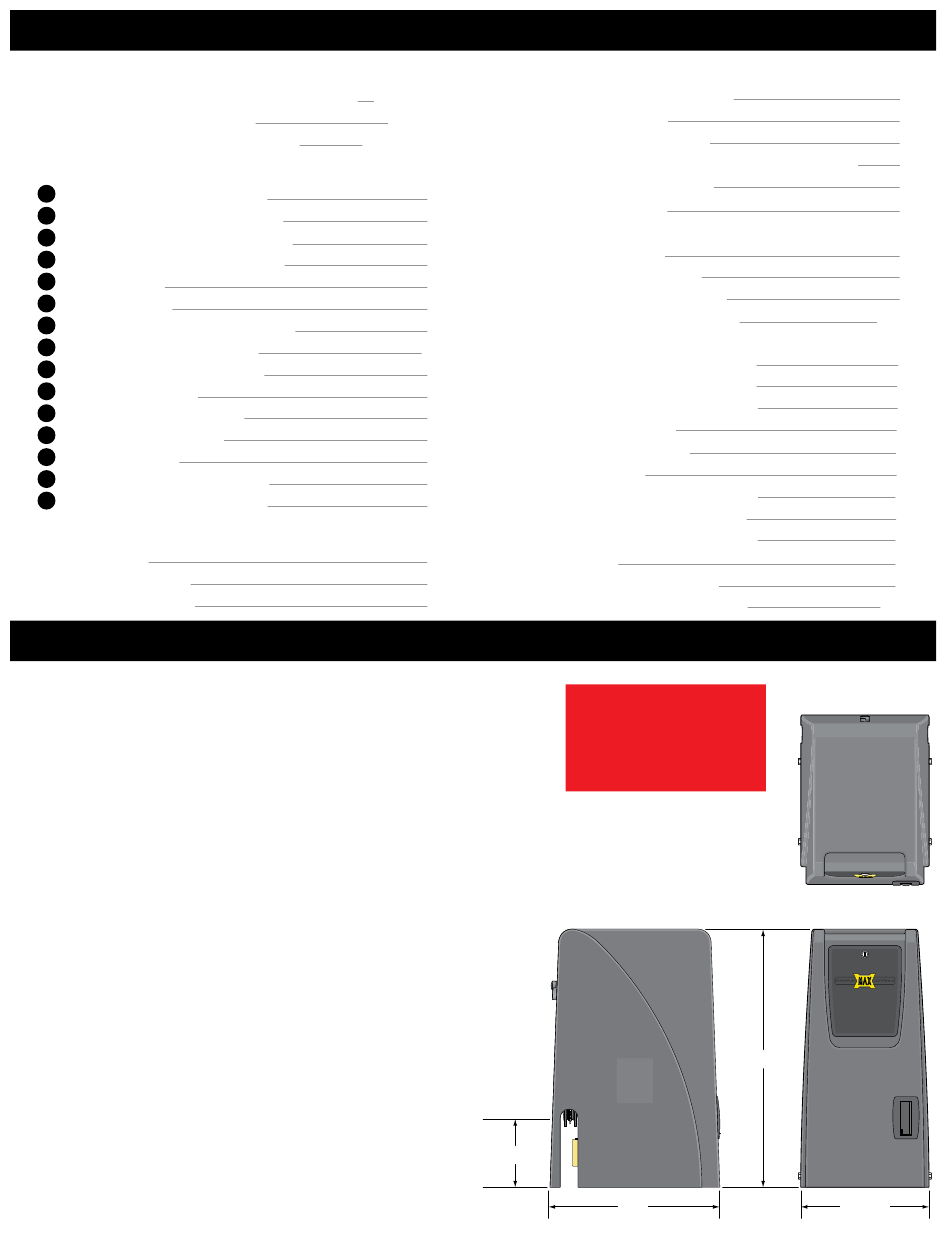

Table Of Contents - Maximum Controls MAX 1500 PRO Installation Manual

Gate Safety
UL 325 Compliant Installation Requirements
UL 325 Model Classifications
Intended Use of Slide Gate Operator
Step-By-Step Installation
Operator Placement (Standard)
1A
Connect Chain to Gate (Standard)
1A
Rear Mounting Position (Alternate)
1B
Connect Chain to Gate (Rear Pos)
1B
AC Input Power
2
Ground Operator
3
Opening Direction/ID Plug/Operator
4
Entrapment Protection Wiring
5
Program Virtual Limit Sensors
6
Learn Gate Positions
7
Adjust ERD Reverse Sensor
8
Loops & Loop Detectors
9
Matrix III Settings
10
Wiring Opening Device Options
11
Learn Unlearned Sensor Inputs
12
Additional Features
Programming
DIP-Switch Settings
Gate Shut-Off Switch
- MAX 1500 PRO/2200 PRO - Class I, II, III, IV.
UL 325 Class of Operation
- Vehicular Slide Gate
Gate Type
- MAX 1500 PRO 25ft; MAX 2200 PRO & MAX F18 PRO 50ft.
Max Gate Length
Max Gate Weight:
• MAX 1500 PRO - 1500 lbs Level Gate
• MAX 2200 PRO - 2200 lbs Level Gate
• MAX F18 PRO - 1600 lbs Level Gate
- Selectable speed control: (MAX 1500 PRO/2200 PRO - Up to 12 inch/sec)
Opening Time
- Continuous
Cycles per Hour AC Power
(2- 7 Amp/Hr Batteries fully charged):
Battery Back-Up Cycles
• Approximately 100 cycles
NOTE: The number of gate cycles using ONLY battery back-up power will vary
depending on the weight of the gate, the gate length, the operating condition
of the gate, temperature and the amount of charge the batteries have at the
beginning of the battery power only operation.
- Switchable: 115VAC / 6 Amp, 1 phase
Input AC Power/Amps
Motor:
• MAX 1500 PRO - 1/2 HP 24VDC Brushless (6 million cycles)
• MAX 2200 PRO/F18 PRO - 1 HP 24VDC Brushless (6 million cycles)
- #40
Chain Size
-4°F to 158°F (-20°C to 70°C)
Operating Temperature:
Entrapment Protection:
- UL 325 Type A Inherent (ERD sensor)
- Inputs for NORMALLY CLOSED (N.C.) and 10K Type
UL 325 Type B1 (photocell)
and Type B2 (sensing edge)

Table of Contents

Safety-1-3
Safety-5a-5b
specifications
MAX F18 PRO - Class III, IV ONLY.
(MAX F18 PRO - Up to 18 inch/sec)
or 230VAC / 2 Amp, 1 phase
Additional Features cont'd
Page
Electronic Gate OPEN / CLOSE
Gate Tamper Feature
Safety-4
Partial Open Programming
Dropping the Chain - Gate Tamper is Armed (ON)
Dual Gate Operators Wiring
1
Gate Disable Feature
2
Troubleshooting
3
USB Black Box Port
4
Test Entrapment Sensors
5
Gate Cycling Troubleshooting
6
Matrix III LED Troubleshooting
6
Commonly Used Safety Sensors
7-8
Omron E3K-R10K4 UL325 2018
9
Omron E3K-R10K4 UL325 2016
10
Omron E3K-R10K4 UL325 2018
10
EMX WEL-200 Wiring
11
WEL-200 Programming
11
EMX-RET Wiring
12
EMX IRB-MON Single Gate Wiring
12
EMX IRB-MON Dual Gate Wiring
Miller RBAND Monitored Wireless
13
Wiring Overview
13
Optional Magnet Limit Sensors
14 Solar Pack Quick Installation Guide
TWO Entrapment protection
sensors MUST be installed,
ONE in EACH direction of
gate travel or operator will
NOT function.
7 1/2"
UL 325 2018 Standard - MAX 1500 PRO/2200 PRO/F18 PRO Matrix III Install Version 7d
7
26"
19"
Page
14
15
16
16
17
18
19
19
20
21-22
23
24
25
26
27
28
29
30
31
32
33
34-37
14 1/2"
