1A

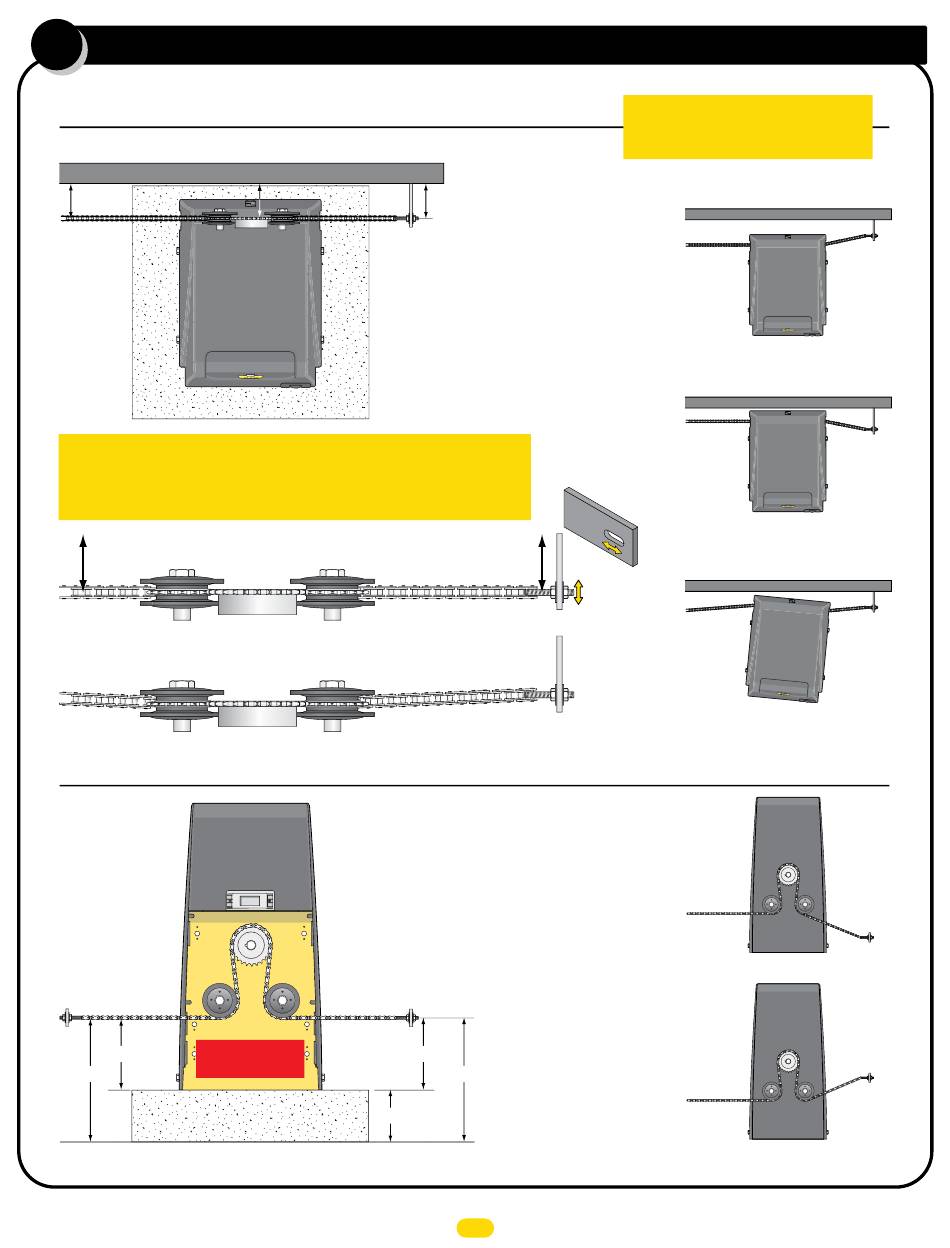

connect chain to gate (standard)
Top View of Operator
NOTE: 25 ft of #40 nickel plated chain included.
Minimum distance between the drive gear and gate is 4".
4" Min
Operator and chain MUST be parallel to gate or the idler
IMPORTANT:
wheels could fail. Use the "Fine Tune" adjustment on the gate bracket
connection bolt and make sure the chain runs through the idler wheels
without binding on the side chain guides.
4" Min
Back View of Operator
Chain
Bracket
Factory installed
7.5"
13.5"
Operator in Front Position (Standard)
Drive
Gear
Bracket
YES
YES
YES
YES
Side Chain Guide
Side Chain Guide
Idler Wheel
NO
NO
YES
YES
Chain brackets MUST
remain same height as
idler wheels.
Bracket
Idler Wheels
position
Concrete Pad
6"
4" Min
Chain
G a
4" Min
Chain
NOTE: The chain should
sag no more than one (1)
inch per 10 feet of travel.
Do not over tighten the
chain.
7.5"
13.5"
UL 325 2018 Standard - MAX 1500 PRO/2200 PRO/F18 PRO Matrix III Install Version 7d
2
Physical stops MUST be
IMPORTANT:
installed on BOTH ends of gate rail to
keep gate from traveling off of rail.
Operator is too far from gate.
Chain is NOT parallel to gate.
t e B
r a c
k e t
Operator is too close to gate.
Chain is NOT parallel to gate.
Fine Tune
Adjustment
Operator is NOT parallel to gate.
Chain is NOT parallel to gate.
DO NOT mount chain bracket too low on gate.
DO NOT mount chain
bracket too high on gate.
NO
NO
NO
NO
NO
NO
NO
NO
Chain
Bracket
NO
NO
Chain
Bracket
