QUICK START GUIDE
FEATURES:
• 1/2.7" 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP
(2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
• 2.8~12mm Motorized Varifocal Lens
• 2 Matrix IRs with up to 165' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line
Crossing
• H.265, H.264 Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• 1 Channel Audio In*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Box Mounts (VT-TJB07, VT-TJB08) Available
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal
laws regarding audio surveillance.

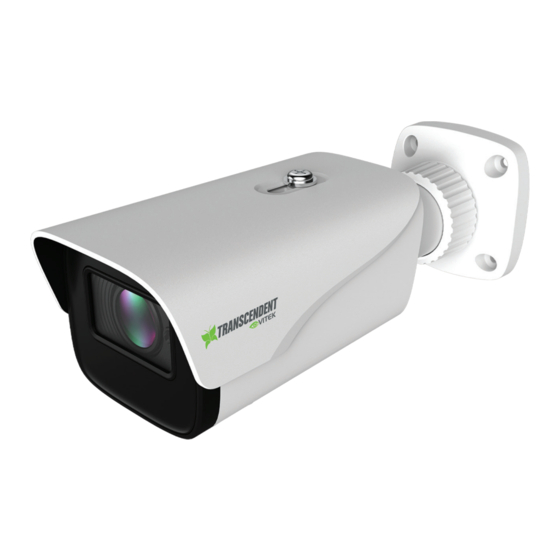

VTC-TNB8RME
Indoor/Outdoor WDR IP
Motorized Bullet Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
8 MegaPixel [4K]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TNB8RME
Summary of Contents for Vitek VTC-TNB8RME
- Page 1 VTC-TNB8RME Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor WDR IP Motorized Bullet Camera QUICK START GUIDE FEATURES: • 1/2.7” 8.0 Megapixel [4K] CMOS Image Sensor • Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240 •...
- Page 2 Components and Accessories Camera 4 tapping screws PA 4×2 Quick start guide × 4 Screwdriver Plastic plug Drill template Fixed Ring Power connector* Mounting Base Micro SD card slot Network connector* Reset Audio Input Sunshield First connect the weather resistant Cap to an ethernet patch cable, then connect the cameras ethernet adaptor.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 1. Attach the drill template to 1. Attach the drill template to the place where you want to the place where you want to install the camera, then drill install the camera, then drill 3 screw holes and 1 cable 3 screw holes and 1 cable hole (if routing the cables hole (if routing the cables...
- Page 5 LAN Configuration LAN Configuration Switch Switch Network Cable Network Cable Network Cable Network Cable MENU MENU IP Camera IP Camera Computer Computer Router Router The camera can be accessed on the local network either using the The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.
- Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X browser to connect IP-CAM .
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm. The IE browser will download Active X control. 3.
- Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
