Getting to know the ip8300

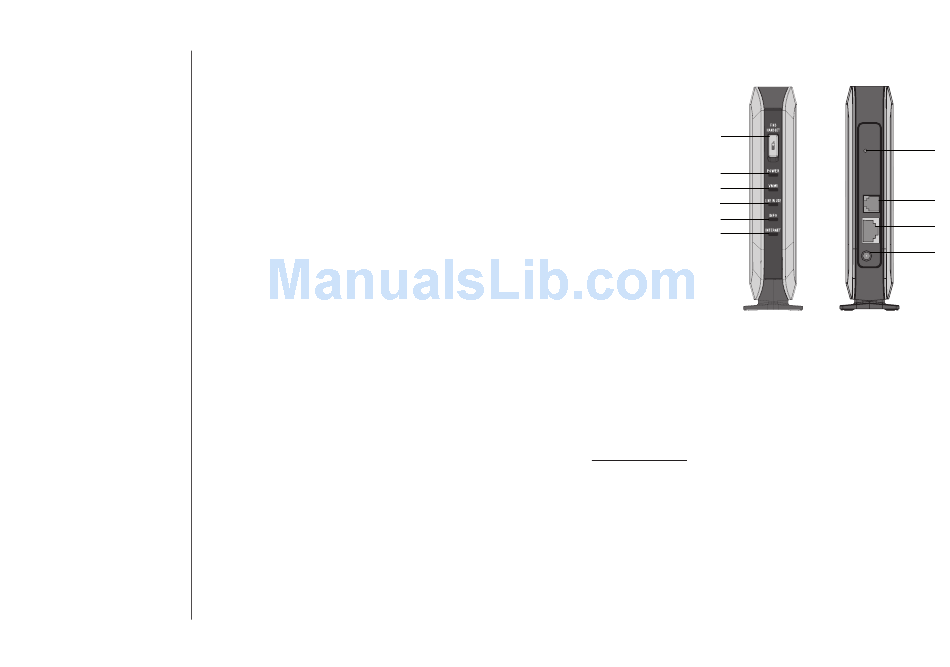

Telephone base layout

1. FIND HANDSET
2. POWER
3. VMWI
4. LINE IN USE
9
If you misplace a handset,
press this button to make the
handset ring. To stop the ringing,
press OFF on the handset, or
press FIND HANDSET on the
telephone base again.
A steady red light indicates the
base is powered on.
A blinking orange light indicates
that there are new voicemail
messages. If the light is off, there
are no new voicemail messages.
A blinking orange light indicates
that there is an incoming call. A
steady orange light indicates that
the telephone line is in use. If the
light is off, the telephone line is
not in use.
www.vtechphones.com
5. INFO
A blinking orange light indicates that
the telephone has an IP address from
the broadband router, but cannot
communicate with the Internet. A
steady orange light indicates that
the base is communicating with the
Internet and is ready to be used. If
the light is off, the base has failed
to obtain an IP address from the
router.
6. INTERNET
A steady or flickering orange light
indicates the base is properly
connected to the router.
7. RESET
Press the reset button while the
telephone base is powered on to
reboot the system. Press and hold
the reset button for 10 seconds
while the telephone base is powered
on to reset the system PIN to the
default (0000), clear the call history,
and perform a software reboot.
1
2
3
4
5
6
8. TEL LINE JACK
C o n n e c t s t o y o u r h o m e
telephone line for making
and receiving calls.
9. ETHERNET
Connects to your broadband
router to access the Internet.
10. POWER PORT
Connects to the power adapter
which plugs into an electrical
outlet to provide power to the
base.
7
8
9
10
