4.3. Expansion Connections
iBoot-G2+ has two Expansion Ports, Exp1 and Exp2 for connection to iBoot-Exp, or for use as General
Purpose Inputs and Outputs (GPIO). Mode settings on the iBoot-G2+ determine how the expansion ports
function.
Connections to the iBoot-Exp are made using screw terminal blocks. The screw terminal blocks are on
removable connectors for easy cable fabrication.
Make sure screw terminals are tightened securely and that there are no loose strands of cable, or excessive
stripped wires.

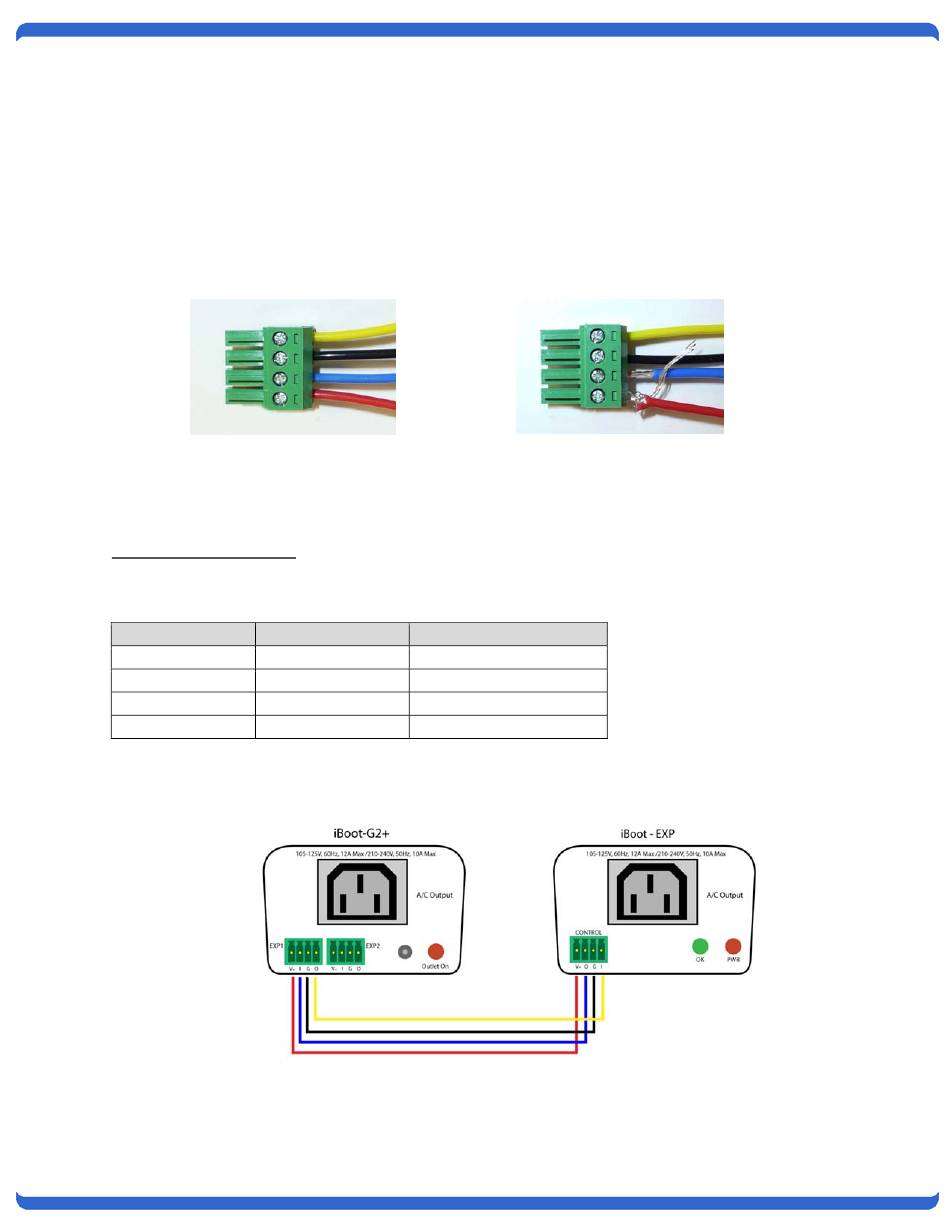

Proper Screw Terminal
Connecting to iBoot-Exp
Terminal blocks are connected pin-to-pin with the iBoot-Exp as shown:
Connect:
Function
Power
Feedback
Ground
Command
Expansion units (iBoot-Exp) are shipped with a cable for easy connection to the iBoot-G2+ . Maximum cable
length is 1000 ft (305 m) using 22 AWG wire.
V100915E
Connections
iBoot-G2+ iBoot-Exp
V+ Power Out V+
I Input O
G Ground G
O Output I
iBoot-G2+ to iBoot-EXP Connections
iBoot-G2+
Poor Screw Terminal
Connections.
Note Loose Wires and
Excessive Stripping
Power In
Output
Ground
Input
