Connect the Pneumatic Power Supply

The pneumatic power supply for the printhead mechanics has to be made available a minimum continuous pressure of
4 ... 6 bars in front of the pressure regulator. The maximum pressure in front of the pressure regulator is 7 bars and 4 bars after
the pressure regulator.
NOTICE!
A pneumatic power supply of 4 bars is recommended.
Please observe the following notes:
•
The compressed-air has to be dry and oil free.
•
The supplied pressure regulator with manometer is to connect with a plastic tube Ø 8 mm via a plugging bolting to the
pneumatic power supply. It is necessary to make a connection between the pressure regulator and the print mechanics via
a plastic tube Ø 8 mm.
•
Position the pressure regulator as near as possible to the print mechanics.
•
The pressure regulator is only to operate in the direction that is indicated on its underside. The direction shows the way of
the streaming air.
•
It is not allowed to bend the plastic tubes.
•
Shortening of the plastic tubes has to be made with a clean right-angled cut without squashing the tube. If necessary use
special tools (available in pneumatic requirements).
•
Please observe a possible short length of the 8 mm plastic tubes.

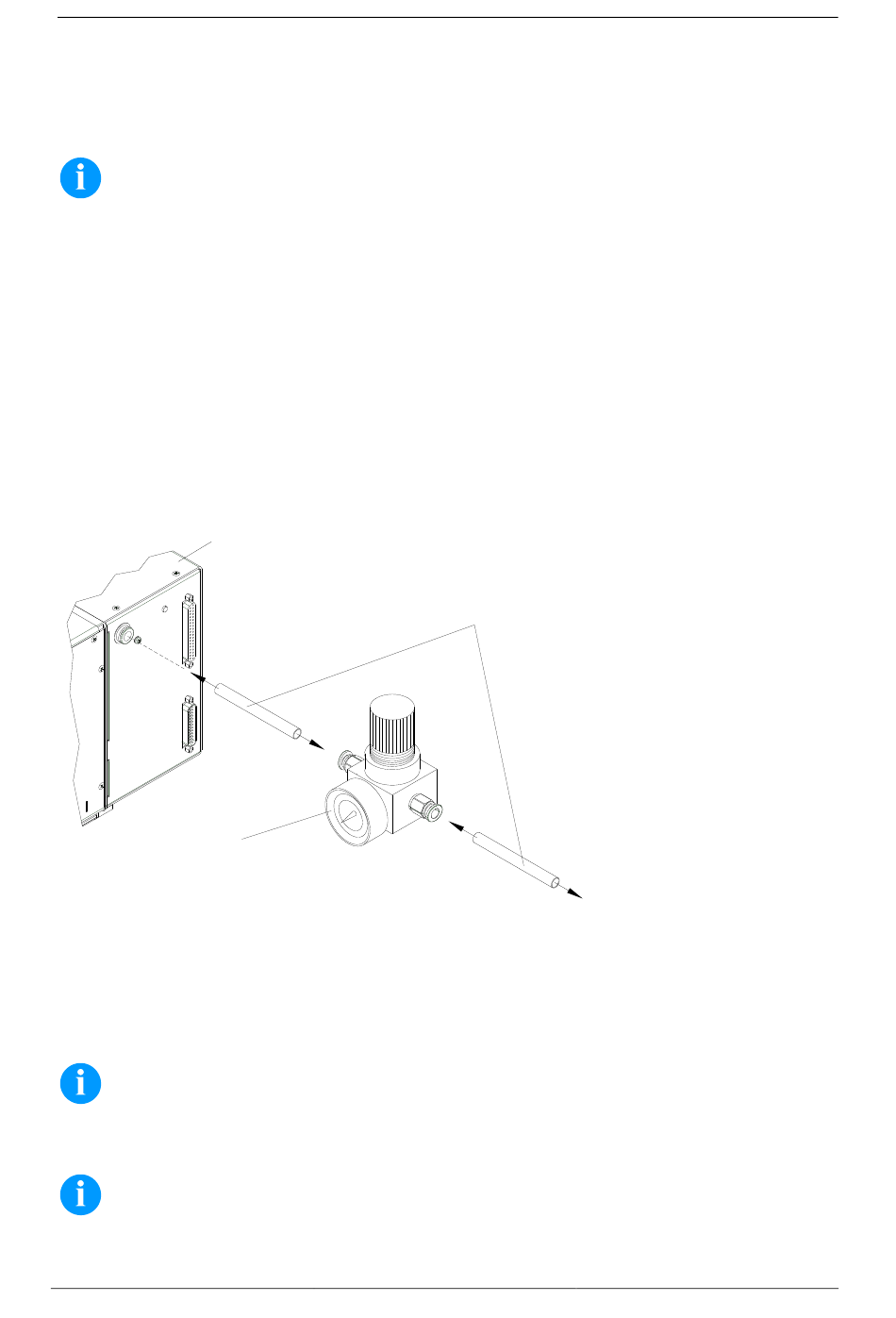

Druckmechanik
Print mechanics
Druckregler mit Manometer
Pressure regulator with manometer

Install the protective cover for control unit IP65

NOTICE!
By mounting the optional protective cover, the protection class IP 65 according to DIN EN 60529 is
achieved.
NOTICE!
The instructions for mounting the protective cover can be found on our website www.carl-valentin.de.
Pneumatikschlauch
Pneumatic tube 8x1
Druckluftversorgung
Pneumatic power supply
min. 4 bar, max. 7 bar
