Tools Needed: Electric Drill, 1/8" Drill Bit, Pencil, 7/16" Open End Wrench, Phillips Screwdriver, Tape Measure,
Ladder, and Level.
Parts Supplied: Solar Motorized EasyShade Assembly (not shown below), Solar Panel with Internal Battery,
Mounting Brackets, #8 x 1- ½" Round-Head Screws, 1/8" Allen Wrench (for the Mounting Bracket Set Screws),
Two (2) Cable Guides, Two (2) Cable Guide Brackets, Two (2) Cable Guide Stops , 5/64" Allen Wrench (for Cable
Guide Stop Set Screws), #8 x 1- ½" Flat-Head Screws, One (1) 4mm Allen Wrench and Allen set screw (for the
Solar Panel Housing) and One (1) Multi-Channel Remote Transmitter with Wall Mounting Post.
Allen Wrenches,
5/64", 1/8" & 4mm,
1 each.
Flat Head Screw
Qty 2 for Each
Bracket
Round Head Screw
4' - 9': Qty 4
10' - 12': Qty 6
Cable Guide Bracket
Qty 2
Cable Guide Stop
with Set Screw
Qty 2
Allen Set Screw for
Solar Panel, Qty 1
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY! PLEASE READ
THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO COMPLETE THIS INSTALLATION
Note: Prior to installing your Solar Powered Motorized EasyShade, please review Figure 1 (Solar Powered
Motorized EasyShade Schematic View) then inspect to ensure that there are no obstructions on your wall
surface, such as light fixtures or door handles that would interfere with or block the Fabric Panel as it is
extended. For proper operation you must ensure that the Aluminum Housing and Cable Guide Brackets are
mounted on the same vertical plane or surface.
The SunSetter Solar Powered Motorized EasyShade can be installed with the Mounting Brackets on a wall
(Vertical Surface, see Figure 4) or on the underside of a structure (Horizontal Surface, see Figure 5). Each of
the Brackets should be installed no more than 10" from the end of the Aluminum Housing. For the 10' to 12'
models, the third Mounting Bracket should be installed at the mid point between the two End Brackets.
The Aluminum Housing requires 31/2" of clear, unobstructed space along the mounting surface of the wall or
soffit / ceiling.
Vertical space between the Aluminum housing and the lower location of the Cable Guide Bracket must be clear
of obstructions to allow the Fabric Panel to freely extend.
*Helper Needed*
EasyShade Mounting Bracket
4' - 9': Qty 2
10' - 12': Qty 3
3 ft cord
not shown

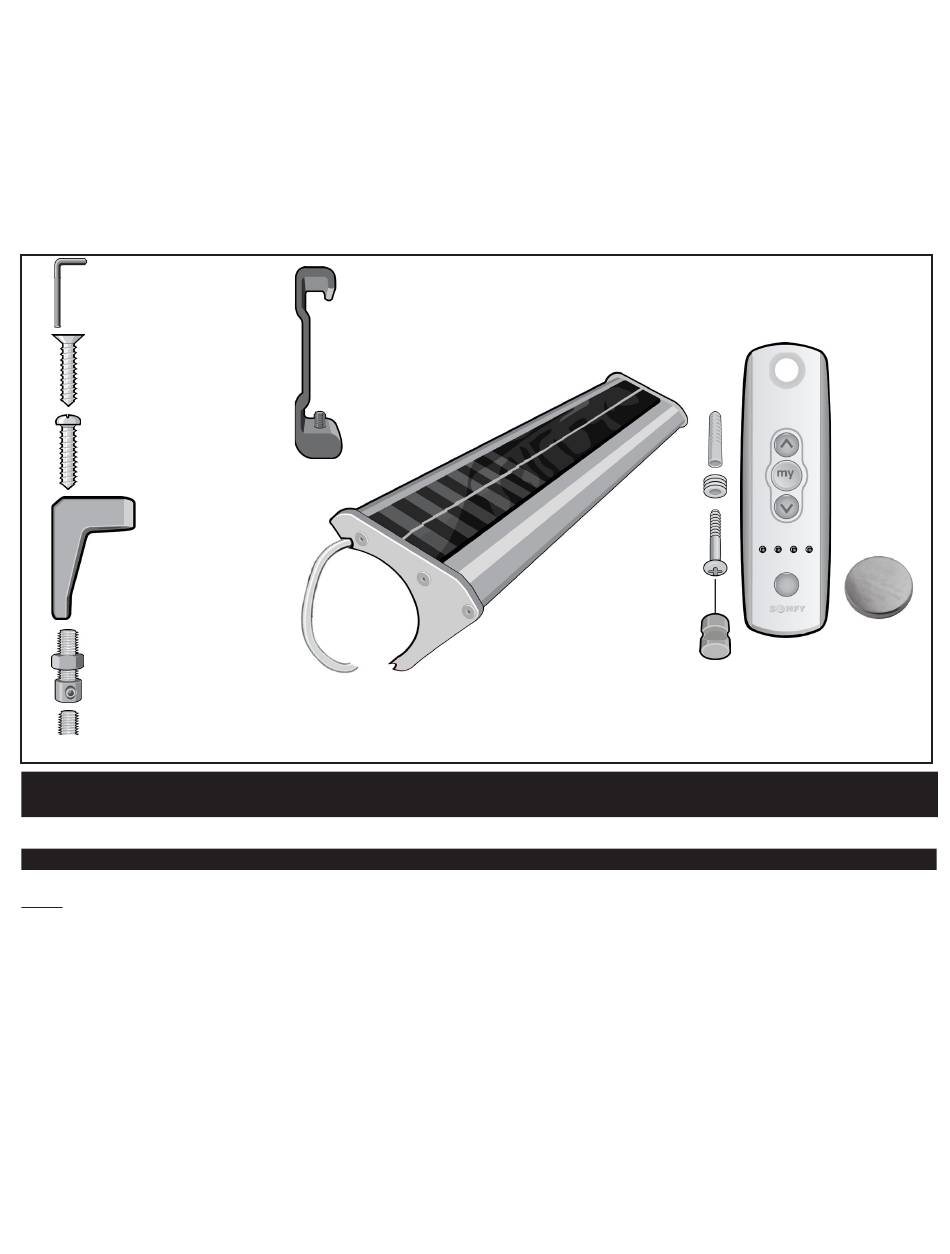

Figure 2 - Parts Supplied

PRE-INSTALLATION NOTE

2
Solar Panel with
Internal Battery
Qty 1
Wall Mount Post Kit
for Remote Transmitter
Qty 1
Multi-Channel
Remote Transmitter
Qty 1
Spare
CR-2430
Battery for
Remote
Transmitter
