Tools Needed: 7/16" Wrench, 9/16" Wrench, Step Ladder, Sawhorses or chairs.
Parts Supplied: Sunea Replacement Motor, (4) Plastic Safety Sleeves, 3 mm Allen Wrench.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY!! PLEASE READ
THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO COMPLETE THIS PROCEDURE.
Note: If you cannot close your Awning using the Crank Wand, complete the following procedure (Steps 1
through 5), then continue with Step 8. If you can close your Awning using the Crank Wand, continue with
Step 6.
WARNING: MAKE SURE THAT NO ONE STANDS IN FRONT OF THE AWNING DURING THIS PROCEDURE, IN
CASE THE AWNING SPRINGS OPEN.
1. Position a step ladder at the Motor end of the Awning (Note: outside the Awning, not under the Awning)
and align with the Elbow of the Left Arm Assembly. See Figure 1.

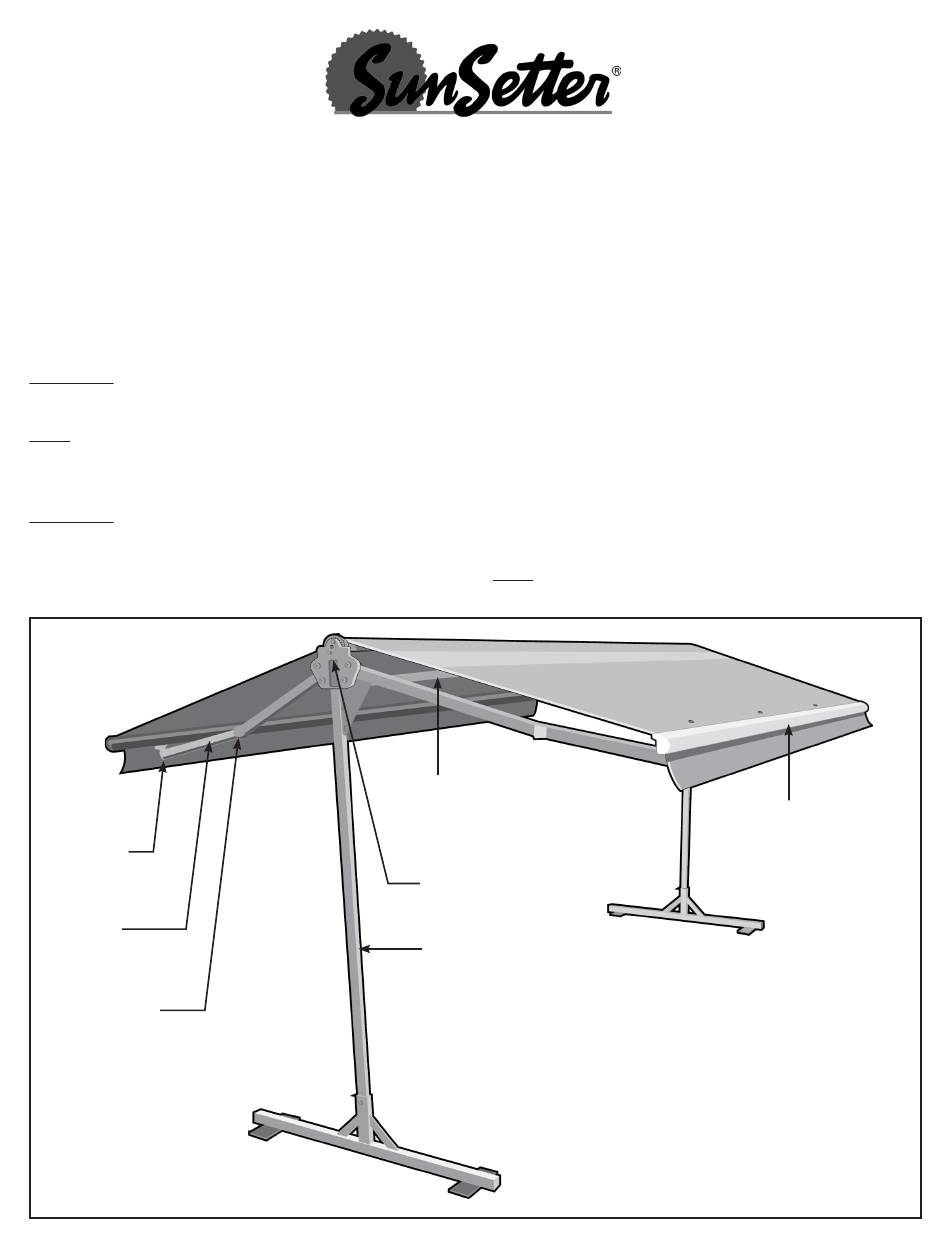

Figure 1
Front Bar
Connector
Arm (Left)
Assembly
Elbow of Left
Arm Assembly
(Re: Step 1)
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148
RETRACTABLE AWNINGS
For Technical Support visit us at www.sunsetter.com/ownerscorner
or Call Toll Free 800-670-7071 • Fax 877-224-4944
Motorized Oasis Awning
Sunea Motor Replacement Instructions
*Helpers Needed*
Horizontal
Square Bar
Top Bracket
with Motor
Square Bar
Upright
Front Bar

Advertisement

loading

Related Manuals for SunSetter Oasis

Summary of Contents for SunSetter Oasis

  • Page 1 Figure 1 Horizontal Square Bar Front Bar Front Bar Connector Top Bracket with Motor Arm (Left) Square Bar Assembly Upright Elbow of Left Arm Assembly (Re: Step 1) ©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148...
  • Page 2 2. Unplug the power cord from your electrical outlet, and if installed remove the Cord Cover from the Square Bar Upright. 3. Starting with the Left Arm Assembly, push in on the Elbow to start the Arm to close and grasp the outside edge of the Front Bar and pull it in toward the End Bracket.
  • Page 3 12. If your Fabric is completely rolled up, use the 17. While your helpers support both ends of the Crank Wand to unroll about 3 inches of Fabric. Roller Bar, remove the two ¼-20 Hex Bolts and Remove the Crank Wand. Washers that connect the Motor to the Top Bracket.
  • Page 4 20. Insert the new Motor into the Roller Bar, aligning 25. Use the Manual Crank Wand to slowly roll the the largest Slot in the Black Tube Drivers with the Fabric onto the Roller Bar. Roller Bar Slot. See Figure 9. 26.
  • Page 5 WARNING: THIS PROCEDURE MUST BE FOLLOWED THOROUGHLY AND COMPLETELY. WARNING: ALL STEPS MUST BE FOLLOWED EXACTLY AND COMPLETELY. Front View 1. Select the proper channel on the Remote to control your Oasis 2. Press and Hold the CLOSE and OPEN buttons together, release when the Awning jogs (a jog is a short back and forth movement of the motor).
  • Page 6 Awning moves a little bit, or jogs back and forth, then release the “my” button. 5. Check the new Closed limit. SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148 January 15, 2015 Oasis_Motor_Replacement_Sunea...
