SunSetter EASYSHADE Installation Instructions

Tools Needed: Phillips Screwdriver, 7/16" Open End Wrench, 1/8" Allen Wrench, and a 5/64" Allen Wrench
Parts Supplied: Two (2) Spacers
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY!
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE PERFORMING THIS PROCEDURE.
1. Close your EasyShade completely.
2. Unplug the power cord from the outlet or Solar
Panel/Battery Assembly.
3. Remove the Cable Guide Stops from the bottom of
the Vinyl Coated cable on each side of the EasyShade
using a 5/64" Allen Wrench. See Figure 1.

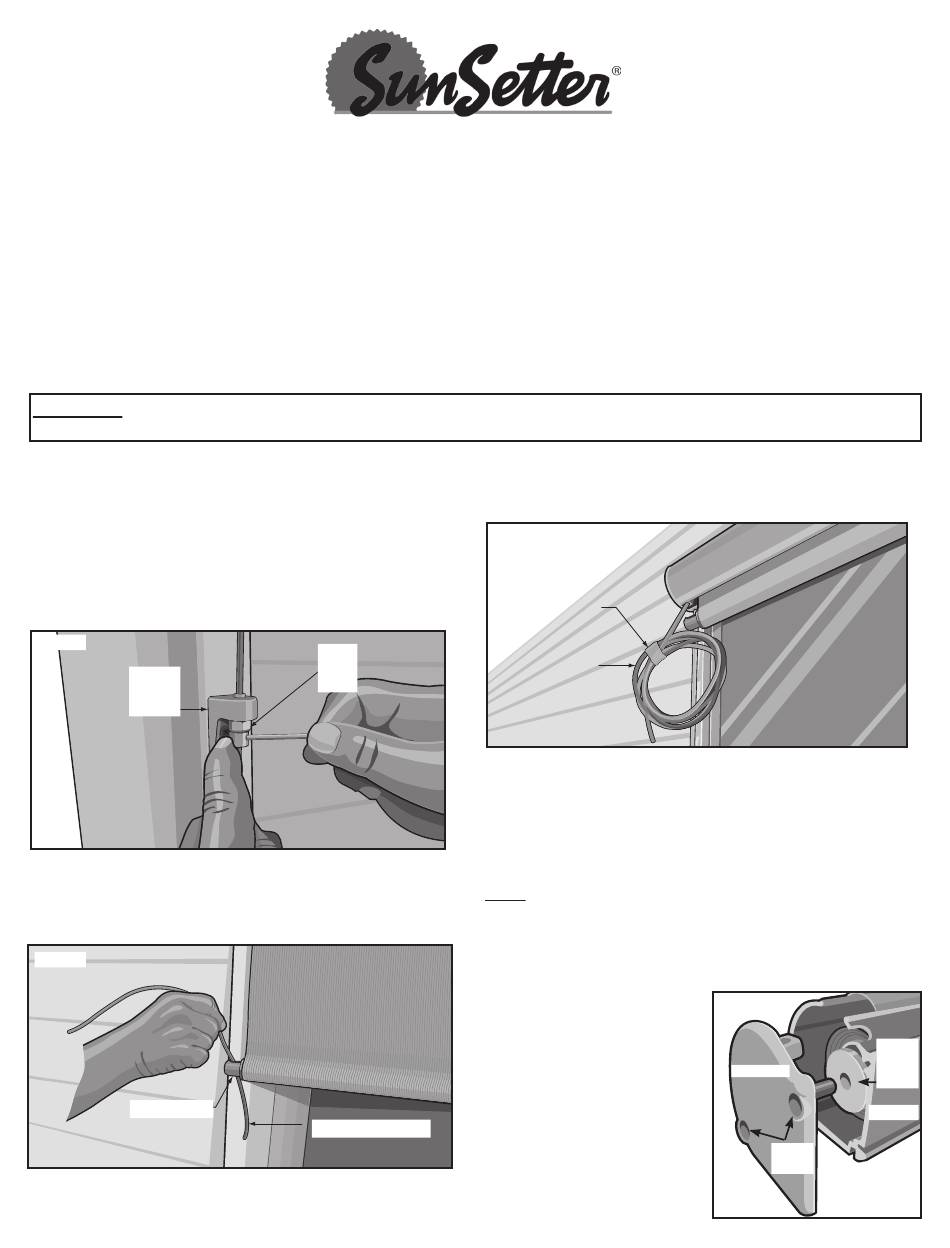

Figure 1
Cable
Guide
Bracket
4. Pull the Vinyl Coated Cable out of the guide holes
in each end of the EasyShade drop down panel.
See Figure 2.
Figure 2
Guide Hole
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148
For Technical Support visit us at ownerscorner.sunsetter.com
or Call Toll Free 800-670-7071 • Fax 877-224-4944
Motorized and Solar Powered EasyShade®
Spacer Installation Instructions
* Helper Needed *
Cable
Guide
Stop
Vinyl Coated Cable
EASYSHADE
®
5. Coil the Vinyl Coated cable and secure with a piece
of masking tape. See Figure 3.
Figure 3
Masking Tape
Vinyl Coated
Cable
6. While your helper supports the EasyShade, use
the 1/8" Allen Wrench to loosen the set screws on
the Mounting Brackets. With the aid of your helper
remove the EasyShade from the Brackets and place it
carefully in your work area.
Note: Protect the finish of your EasyShade by using a
clean table or other work area.
7. On the end of the Housing opposite the Motor,
remove the two Phillips Head Screws that secure the
End Plate to the Housing.
Remove the End Plate and
the White Nylon Insert
from the Roller Bar and
place aside for use in
reassembly. See Figure 4.
Figure 4
White
Nylon
End Plate
Insert
Housing
Two
Screws
