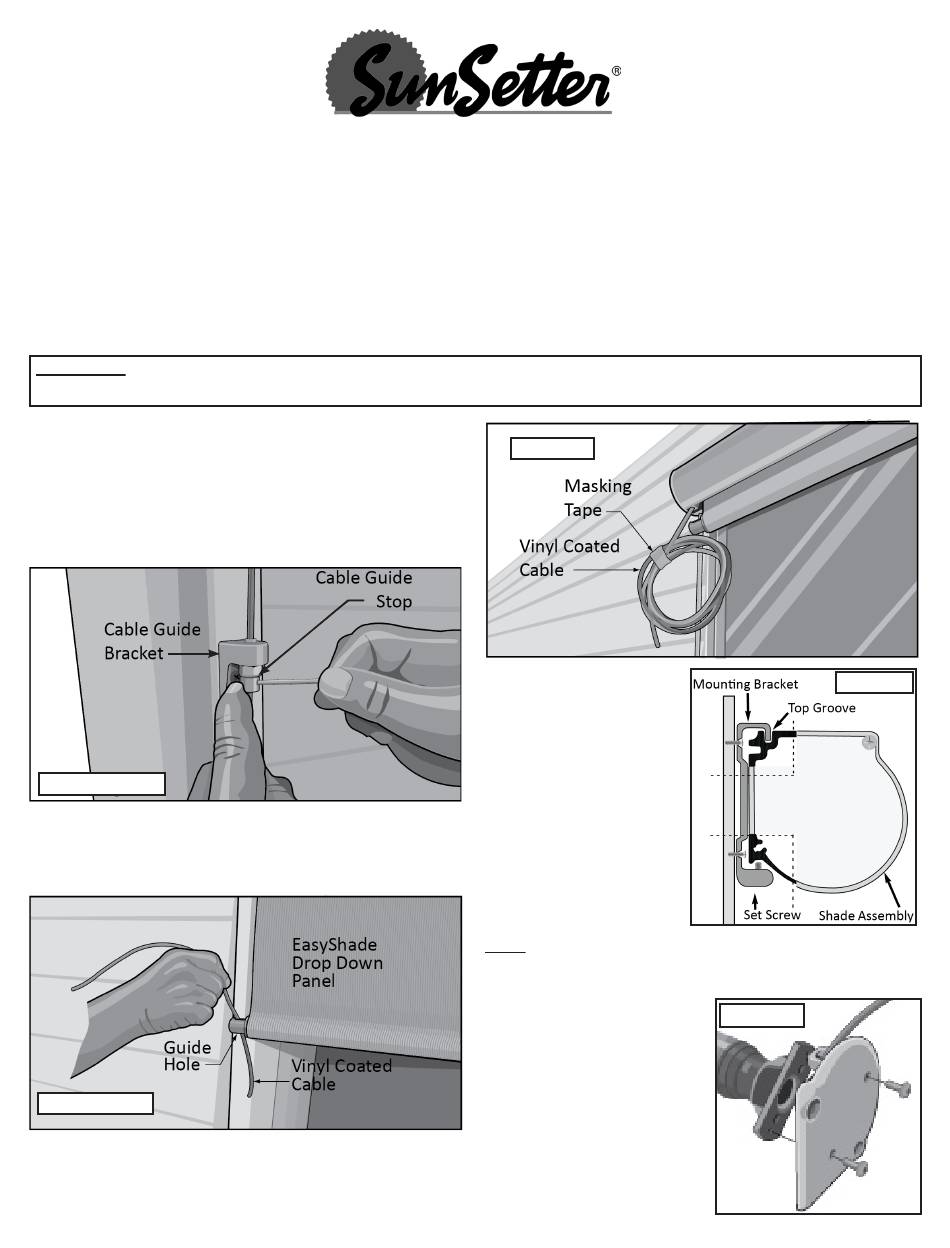

SunSetter EasyShade Replacement

Tools Needed: Phillips Screwdriver, 5/64" Allen Wrench, 3 mm Allen Wrench
Parts Supplied: Replacement End Plate (motor side)
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY! PLEASE READ
THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO COMPLETE THIS PROCEDURE.
1. Close up your EasyShade completely.
2. Unplug the power cord from the outlet.
3. Remove each Cable Guide Stop from the bottom
of each Vinyl Coated Cable on each side of the
EasyShade, using a 5/64" Allen wrench. See Figure 1.
Figure 1
4. Pull the Vinyl Coated Cable out of the Guide Hole
in each end of the EasyShade Drop Down Panel. See
Figure 2.
Figure 2
5. Coil the Vinyl Coated Cable and secure with a piece
of masking tape. See Figure 3.
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148
RETRACTABLE AWNINGS
For Technical Support visit us at www.sunsetter.com/ownerscorner
or Call Toll Free 800-670-7071 • Fax 877-224-4944
Motorized EasyShade
End Plate (Motor Side) Replacement
* Helper Needed *
Figure 3
6. While your helper
supports the EasyShade,
loosen the Set Screws on
the Mounting Brackets
(see Figure 4). With
the aid of your helper,
remove the EasyShade
from the Mounting
Brackets and place it
carefully in your work
area.
Note: Before performing Step 7, take a moment to
observe the orientation of the Housing End Plate.
7. On the Motor end of
the EasyShade Housing,
use a 3 mm Allen wrench
to remove the two screws
that secure the Housing
End Plate to the Motor.
See Figure 5.
Figure 4
Figure 5
Housing
End Plate
