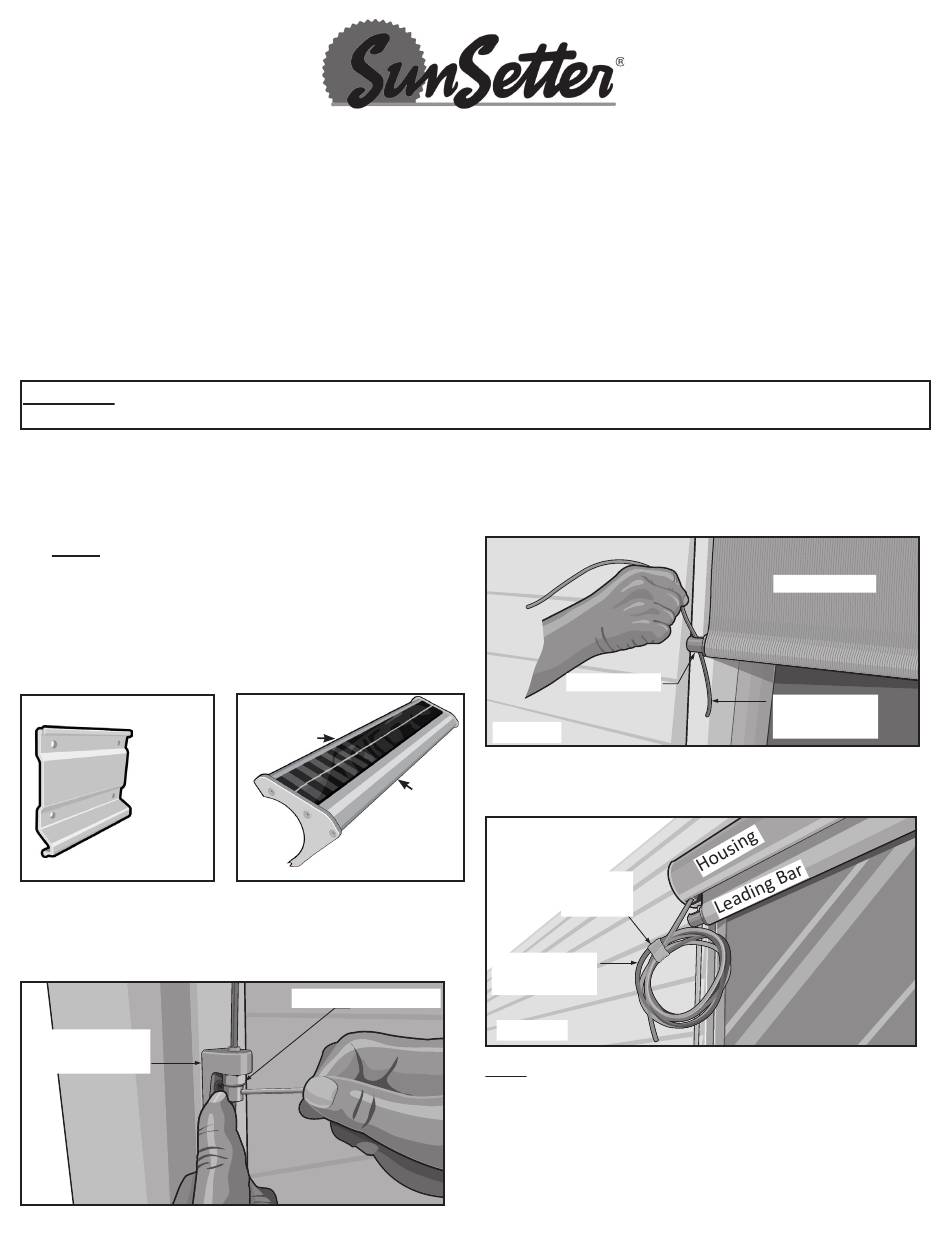

SunSetter EASYSHADE Assembly Instructions

Tools Needed: Phillips Screwdriver, 3mm Allen Wrench, 4mm Allen Wrench and a 5/64" Allen Wrench.
Parts Supplied: Replacement motor
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY!
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE PERFORMING THIS PROCEDURE.
1. Close your EasyShade completely, if possible.
2. Disconnect the Power Cord from the Solar Panel.
Note: If a Remote Wall Bracket (see
Figure 1) is used to mount the Solar Panel
direct to the wall (see Figure 2) instead
of mounting directly on the EasyShade
Housing, skip ahead to Appendix A.
Figure 1
Remote Wall Bracket
3. Remove the Cable Guide Stops from the bottom
of the Vinyl Coated cables, on each side of the
EasyShade using a 5/64" Allen wrench. See Figure 2.
Cable Guide
Bracket
Figure 2
For Technical Support visit us at ownerscorner.sunsetter.com
or Call Toll Free 800-670-7071 • Fax 877-224-4944
Solar Panel Assembly
Replacement Instructions
* Helper Needed *
Figure 2
Solar Panel
Allen Head
Set Screw
is located
below here.
Cable Guide Stop
©SunSetter Products, 184 Charles Street, Malden, MA 02148
EASYSHADE
®
4. Pull the Vinyl Coated Cable out of the Guide Holes
in each end of the EasyShade drop down panel.
See Figure 3.
Guide Hole
Figure 3
5. Coil the Vinyl Coated cable and secure with a
piece of masking tape. See Figure 4.
Masking
Tape
Vinyl Coated
Cable
Figure 4
Note: Step 6 requires access to the Mounting
Brackets for removal of the Housing from the house.
If the Fabric Panel can not be retracted out of the
way, have a helper assist you in rolling the Fabric
Panel around the bottom Leading Bar until the rolled
up Fabric and Leading Bar meet the Housing, then
secure it safely in place.
Fabric Panel
Vinyl Coated
Cable
