Description:
WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS
CG

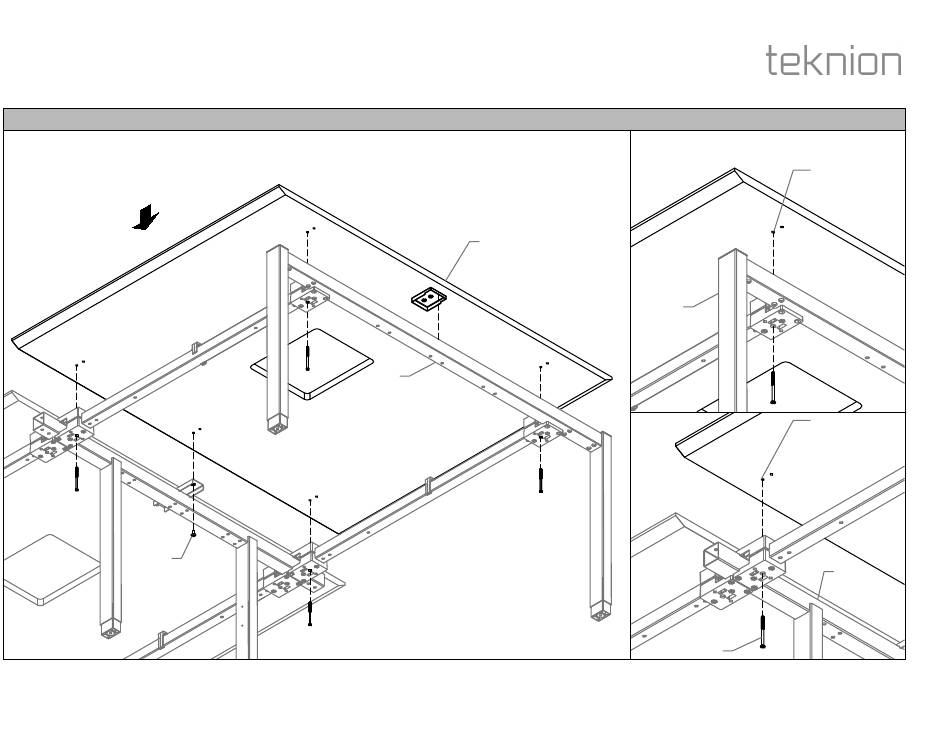

STEP 14: Lower Finish Worksurface onto Finish Frame. Make sure Spacer rests on Gable.
STEP 14: Lower Finish Worksurface onto Finish Frame. Make sure Spacer rests on Gable.
LOWER FINISH WORKSURFACE TO FINISH FRAME
CA1
CJ1
(Finish Worksurface)
Underside View
Date:
Jan 2018
Page No:
INT_504a
Pilot hole to
be used for End
Gable Connection
CA1
Pilot hole to
be used for Mid
Gable Connection
Mid
Gable
CD
17 of 19
