Teknion Beginning Work Table Installation Manual page 6

interpret
Installation Guides
Section: TABLES
Description: WORK TABLE BEGINNING. MIDDLE, FINISH WITH STRAIGHT AND ANGLED LEGS

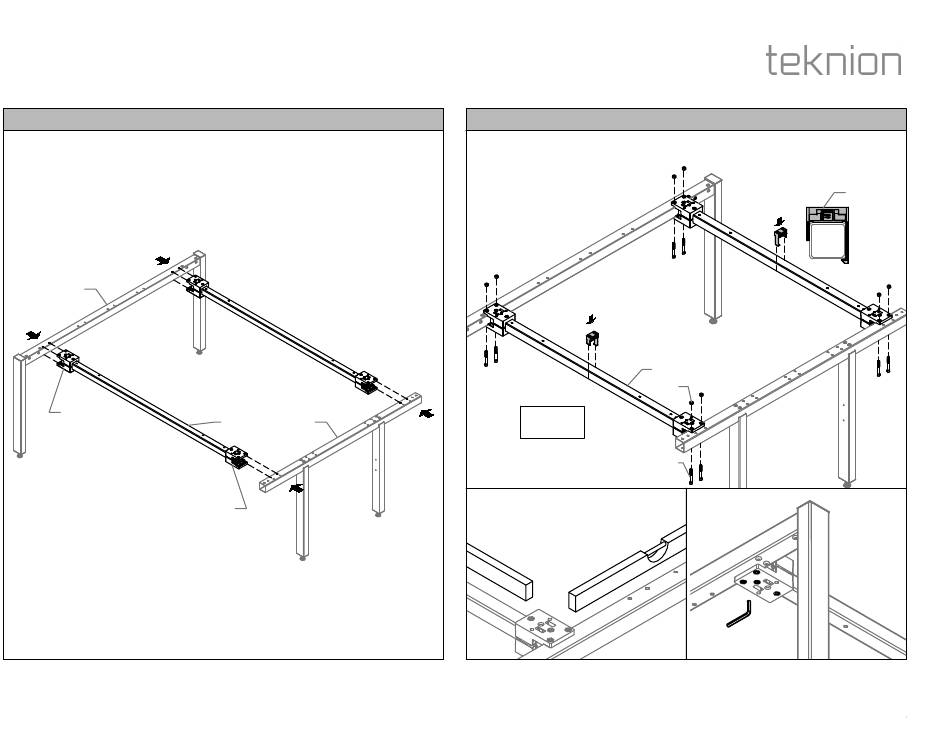

CONNECT GABLE AND BEAMS
AA1
End Gable
Connection
STEP 2: Bring End Gable, Mid Gable and Transverse Beam Assembly together. Line up the set
of holes on the top of Gable Cross Beams with Clamp Brackets holes.
AD1 AC1
Mid Gable
Connection
SECURE WITH FASTENERS
DO NOT
TIGHTEN
STEP 3: Fasten together using Socket Cap Screw and Nuts. Level and square the whole
assembly. Tighten Screws and Nuts.
Date: Jan 2018
INT_504a
AD1
AD3
AD2
Page No: 6 of 19
AF
(Side View)
