Summary of Contents for Rice Lake MSI-8000

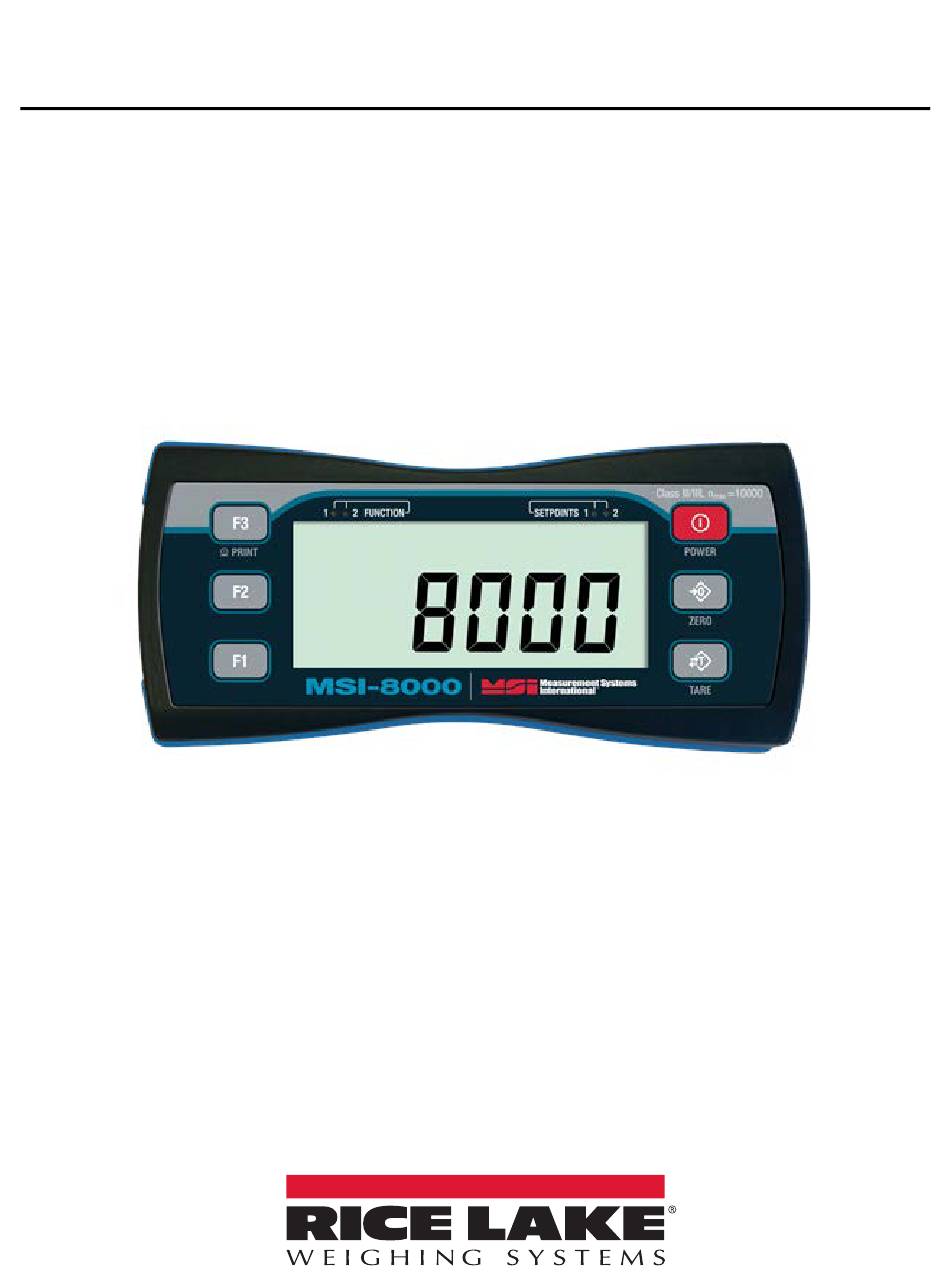

- Page 1 MSI-8000 RF Remote Display Operation Manual August 11, 2020 PN 133063 Rev F...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Table Of Contents
Reset the Load Cell Calibration ............... . 19 Technical training seminars are available through Rice Lake Weighing Systems. - Page 4 8.0 Specifications ............... . . 34 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.
-
Page 5: Introduction
MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh or MSI-7300 Dyna-Link 2. It is fully sealed for outdoor use in most ambient conditions and enhances the safety and usability of Rice Lake’s Dyna-Link and crane scale systems. The MSI-8000 RF Remote Display uses a rechargeable Lithium Polymer battery, providing up to 24 hours (typical) of continuous use between charges. -
Page 6: Features
150964 Cable Assembly Serial cable terminated with female DB-9 connector 151095 Audible Alarm Contact factory for further information 182223 12 V Car Charger Adapter for MSI-8000 RF Remote Display Battery charger for use in a 12 V vehicle – RS-232 serial-output cable With D-9 connector 13' (4 m) –... -
Page 7: Front Panel
Introduction Front Panel The MSI-8000 RF Remote Display front panel, keys and annunciators are described below Figure 1-1. Front Panel Key Functions Item No. Description The F1 key; Programmable to user selectable functions 9); Default = Off; (Section 4.3 on page Functions as the Enter/Select key in the setup menus The F2 key;... -
Page 8: Installation
The MSI-8000 RF Remote Display is often shipped pre-configured with a compatible sensor unit such as an Dyna-Link 2 or one of the MSI crane scales. If the MSI-8000 RF Remote Display is purchased separately, or is to be used with a different system, the RF transceivers will have to be paired (Section 4.4 on page... -
Page 9: Battery Longevity
Battery Longevity The Lithium Polymer Single Cell Battery used in the MSI-8000 RF Remote Display has a rated number of charges of ≥ 300 before capacity starts to degrade. The charging life can be greatly increased by charging the battery more often, and not let it reach the battery cutoff voltage of 3.0 V. -
Page 10: Operation
MSI-8000 RF Remote Display Operation This section provides an overview of the MSI-8000 RF Remote Display operation instructions. Power Press to power the indicator On/Off. POWER Ensure the recommended power supply is secured prior to device operation (Section 2.3 on page... -
Page 11: Zero And Tare In Multiple Load Cell Systems
Net and a Gross weight. If is pressed when displaying any of the summed modes, all devices that TARE add to the current display are tared and placed in Net mode. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Setup
MSI-8000 RF Remote Display Setup This section provides an overview of the MSI-8000 RF Remote Display setup instructions. Setup Navigation To navigate the menus during setup, follow the information below: • Press to enter or select a parameter • Press to scroll through the parameters •... -
Page 13: Function Keys
There are two programmable function keys on the MSI-8000 RF Remote Display, • Function key setup is independent of the connected scale function keys • are standard on the MSI-8000 RF Remote Display and do not need to be programmed PRINT TARE •... -
Page 14: Net/Gross
MSI-8000 RF Remote Display 4.3.3 Net/Gross Program an (Section 4.3 on page F-key NetGross Press to toggle between gross and net (gross minus tare). only functions if a tare has been Fx-NetGross Fx-NetGross established. The operator can switch back to gross from net without clearing the tare value. Only clearing or setting a new tare will change the tare value held before switching into Gross Mode. -
Page 15: Print
The Print function is set to to Print. , so there is no need to program PRINT Pushing on the scale will cause the comm port on the MSI-8000 RF Remote Display to output the selected data string (Section 6.2.1 on page 20). If an is programmed as Print and if Print Setup is configured as continuous, then is used for Start Print/Stop Print. -
Page 16: Setpoints
MSI-8000 RF Remote Display Setpoints The MSI-8000 RF Remote Display supports eight setpoints. Common uses of setpoints are for warnings or process control. The front panel comes standard with two LED outputs for when setpoints 1 and 2 are triggered. -
Page 17: Battery Life
This disables the display in order to reduce power consumption and increase battery life. After several seconds, the MSI-8000 RF Remote Display wakes up to check for any changes in tension. If there is a change in tension, the unit stays awake. -
Page 18: Remote Display Scale Setup
The MSI-8000 RF Remote Display can be used to operate several MSI crane scales (MSI-4260, MSI-3460 and MSI-7300). Some functions can also be set using the MSI-8000 RF Remote Display. The information in this section pertains to the setup of the scale being used with the remote. -
Page 19: Total Mode
ZERO Reset Total Load To reset the total load to zero, press again and while the total load is being displayed, quickly press Fx-Total ZERO © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Calibration
If the linked scale/Dyna-Link is sealed for NTEP approval, the seal will need to be broken and the calibration switch Note on the linked scale/Dyna-Link will need to be pressed for the MSI-8000 RF Remote Display to perform the calibration. Initial Calibration Initial calibration is used to setup units, capacity and resolution (d) required for the load cell. -
Page 21: Routine Calibration
18. Press to exit Calibration. displays momentarily, then the unit returns to Weigh mode. ZERO 19. Repeat this procedure to calibrate all load cells connected to the MSI-8000 RF Remote Display. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: C-Cal Calibration
C-Cal is generated. The C-Cal number must be known prior to starting this procedure. Rice Lake prints this number on the serial number label of new scales. C-Cal reduces slightly the accuracy of the system and is intended for non-critical use only. For highest accuracy, calibrate with precision test weights. -
Page 23: Standard Settings
5. Proceed with the Initial Calibration (Section 5.2 on page 16). Pressing to reset all indicator settings to the original factory settings. IMPORTANT Press to cancel reset and return to the previous menu. Note POWER © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 24: Communications
• MSI-8000 based RF systems are peer to peer; For multiple scale connections, the MSI-8000 acts as the network coordinator The MSI-8000 RF Remote Display uses three numbers to establish a piconet. A piconet is a network that is created using a wireless Bluetooth connection. - Page 25 18. Once the desired output displays, press to save. displays. 19. Press three times to exit, displays briefly, then the unit returns to Weigh mode. ZERO © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 26 MSI-8000 RF Remote Display 6.2.1.2 Standard Print Strings Commands that can be used to format gross, net and print strings are shown below. Command Description <T> Load data <U> Units <M> Load mode (lb/kg) <CRLF> Carriage return line feed <SP>...
-
Page 27: Rf Setup
Table 6-7. RF Setup Parameters Transmission strength should be set to the lowest setting possible to achieve the transmission required. Note Both scale/Dyna-Link and MSI-8000 RF Remote Display should be set at the same transmission strength setting. Setting RF Power Level... -
Page 28: Setup Multiple Sensor Network
Setup Multiple Sensor Network The MSI-8000 RF Remote Display can monitor up to four load sensors. The sensors can be read individually, in pairs or summed. Dyna-Link 2 is shown for illustration purposes only. The Challenger 3 or Port-A-Weigh can also be used. - Page 29 6. When correct number of scales/Dyna-Link 2 attached (2-4) displays, press . This number does not include the MSI-8000 RF Remote Display or any modems. displays. 7. Press . The Load Totaling setting displays. 8. Press to scroll through numbers and to save the selected numbers.
-
Page 30: Scan List Id
Figure 6-2. Standard Adapter Cable (PN 148624) Connector – M12 industrial IP67 rated. An adapter cable (PN 150964) is required to connect the MSI-8000 RF Remote Display to a computer. This adapter cable converts the 8000 connector to a standard D9 serial connector. The 503489 cable can be converted to DTE by using a Null Modem adapter. - Page 31 Male Picofast 4-P Cordset 14359 Male D9 or Pico Half of 14052 Conn PN 11058 Backshell 12044 Shield Drain Soldered to Shell Figure 6-6. DTE Configuration for Direct Connection to a DCE Printer © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 32: Relays
NOTE: Normally open relays (1 Form A) can be made to function as normally closed (1 Form B) by programming the setpoint as a less than type. If the MSI-8000 RF Remote Display is turned off or loses power, the relays will open. -
Page 33: Radio Compliance
All radio options meet FCC and international radio compliance per the certification information listed in this section. These modules may have additional international certifications that are not listed in this section. Please contact Rice Lake Weighing Systems if you require operation in a jurisdiction that is not listed. -
Page 34: Troubleshooting
MSI-8000 RF Remote Display Troubleshooting This section provides an overview of the MSI-8000 RF Remote Display troubleshooting and maintenance instructions. Problem Possible Cause Solution Discharged battery Recharge the battery The display is blank when the power Defective battery Replace the battery (factory replacement only) -
Page 35: Error Codes
Troubleshooting Error Codes The MSI-8000 RF Remote Display ScaleCore processor detects errors and generates error codes to aid in troubleshooting. Error Code Definition Comment LC Disabled A Load cell was not enabled The system is in calibration mode; In Cal ... -
Page 36: Mechanical Dimensions
The latest firmware code is available from the MSI Service Department and can be emailed on request. The firmware version displays when the MSI-8000 RF Remote Display is turned on in form “01-04” (version may vary). MSI-8000 RF Remote Display firmware updates do not require a recalibration of the connected scale. -
Page 37: Reset The Remote Control
5. Change the terminal serial port to 38400 BAUD. Hit the ‘r’ key to refresh the display. The following menu should appear: MSI-8000 RF Remote Display SCALECORE2 BOOT LOADER Ver. 00-05 (c) 2012-05-02 10:55 (u) Download and program application code (bootloader version may vary) -
Page 38: Specifications
IP65 with charger port plug installed Calibration No Calibration parameters are stored in the MSI-8000 RF Remote Display; It can be used to calibrate an RF connected scale Auto-Off Mode Prolongs battery life by turning the power off after 15, 30, 45 or 60 minutes (operator determined) of no weight activity Units kg, lb, tons (US short ton), metric tons, kilonewtons (other units available with custom calibrations);... - Page 40 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
