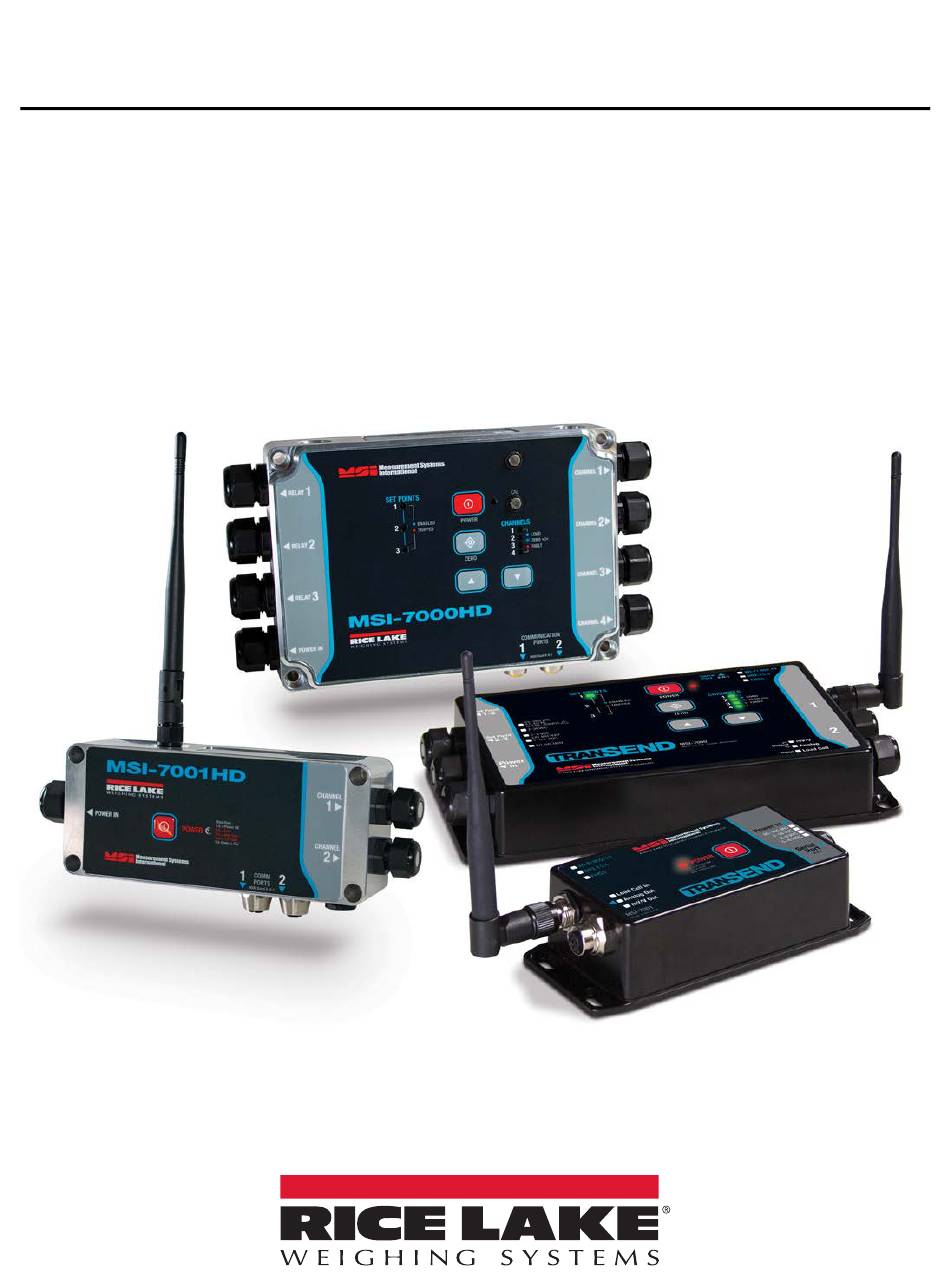

MSI TranSend 7000 Series
Single and Multiple Channel Transmitters and Receivers
Technical Manual
November 21, 2018
PN 167375 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSI TranSend 7000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rice Lake MSI TranSend 7000 Series

Summary of Contents for Rice Lake MSI TranSend 7000 Series

  • Page 1 MSI TranSend 7000 Series Single and Multiple Channel Transmitters and Receivers Technical Manual November 21, 2018 PN 167375 Rev D...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    Monitors ................. . . 30 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 4 Specifications ..................44 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.

  • Page 5: Introduction

    Overview The MSI TranSend 7000 Series offers a wireless option in systems where it would be difficult to have a load cell cable. Replacing the cable with an RF link, the output will be calibrated to match the device that the cable was connected to. A single MSI TranSend 7000 Series transmitter or receiver can be used to communicate with a ScaleCore-based remote display or indicator.

  • Page 6: Standard Features

    Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals.

  • Page 7: Model Configurations

    Receiver to provide an analog output signal: 4-20 mA, 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC; no relays; RF 802.15.4, 2.4 GHz, 85-265 VAC power input Table 1-1. Available Model Configurations © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 8 Two-channel transmitter, no relays, Wi-Fi, 7-36 VDC power input 178020 Two-channel transmitter, no relays, Wi-Fi, 9-36 VDC isolated power input Table 1-1. Available Model Configurations (Continued) NTEP options are available. Contact Rice Lake Weighing Systems for more information. Note www.RiceLake.com Visit our website...

  • Page 9: Options

    Right angle connector, analog output, 6-8 mM OD 184002 7000HD half-plate mounted, FHSS, DC (battery) powered; Only compatible with 7000HD models Consult GoDex Dt4X direct thermal printer Table 1-2. Available Options © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 10: Msi-7000 Front Panel

    MSI TranSend 7000 Series MSI-7000 Front Panel Serial Wi-Fi 802.11 Port 802.15.4 FHSS Set Point Set Point Power Output Input Figure 1-1. MSI-7000 Front Panel Item No. Description Power Input – Located on the side of the unit Setpoint 1-3 Connections – Located on the side of the unit Type of Power Source –...

  • Page 11: Msi-7001 Front Panel

    Power Input – Located on the side of the unit; Type is checked Serial Port – Located on the side of unit; Pre-set at 9600 baud and 8-N-1 Table 1-4. MSI-7001 Front Panel Controls © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 12: Msi-7000Hd Front Panel

    MSI TranSend 7000 Series MSI-7000HD Front Panel CHANNEL CHANNEL RELAY RELAY CHANNEL CHANNEL POWER IN Figure 1-3. MSI-7000HD Front Panel Item No. Description Setpoint 1-3 Connections – Located on the side of the unit Power Input – Located on the side of the unit Setpoint LEDs Green –...

  • Page 13: Msi-7001Hd Front Panel

    Communication Ports – Comm Port 1 is pre-set at 9600 baud and 8-N-1; Comm Port 2 is pre-set at 38400 baud and 8-N-1 Load Cell Connectors - Located on the side of the unit. Table 1-6. MSI-7001HD Front Panel Controls © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 14: Installation

    Unpacking and Assembly Immediately after unpacking, visually inspect the contents to ensure all components are included and undamaged. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Connect Load Cell Cables 2.2.1 MSI-7001 TranSend If using the optional pre-wired cable, refer to the load cell wiring guide table for connecting the cable to the load cell.

  • Page 15: Msi-7000 Transend And Msi-7000Hd

    – Signal 2 Load Cell 2 + Signal 2 – Excitation Shared + Excitation – Signal 1 Load Cell 1 + Signal 1 Shield Figure 2-3. MSI-7001HD Load Cell to Terminal Block Connection © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 16: Connect Power

    MSI TranSend 7000 Series Connect Power 2.3.1 MSI-7001 TranSend 1. Connect the power source to the MSI-7001 TranSend. 7001 Power Input Wiring, 7-36VDC Version 7001 Power Input Wiring, 5-6VDC Version +VIN 6VDC Battery Connector Power Input Cable 120VAC Power Power Input Cable Adapter Connector Figure 2-4.

  • Page 17: Plc Wiring Diagrams

    External Loop 20mA Output Max R 24mA Output Max R wiring wiring Voltage Input shunt shunt None 625Ω 520Ω 750Ω 625Ω 1.05kΩ 875Ω 1.35kΩ 1.125kΩ 1.65kΩ 1.375kΩ Table 2-3. Current Compliance Table © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 18: Relays

    MSI TranSend 7000 Series Relays The MSI-7000 TranSend can be equipped with three Form C Coil relays for process control or safety related systems. The MSI- 7000HD comes standard with three relays. Relays are installed and wired out to 3 pins on a M12 connector.

  • Page 19: Mounting The Enclosure

    Mounting the Enclosure The MSI TranSend 7000 Series transmitters and receivers can be mounted either vertically or horizontally to a flat surface. If mounted inside an enclosure or I-beam, use the correct antenna for the environment and distance. Please call Rice Lake Weighing Systems, if assistance is needed to select an antenna, or reference the antenna selection guide in the appendix.
  • Page 20 MSI TranSend 7000 Series 5.89" 149.50 mm 5.34" 135.64 mm Center Distance 1.79" 45.49 mm 2.579" 1.24" 65.51 mm 31.50 mm 0.276" Bottom Ø 0.177" (4.50 mm) 7.01 mm Top Ø 0.382" (9.70 mm) 1.58" 39.88 mm Figure 2-7. Mounting Dimensions – MSI-7000 TranSend www.RiceLake.com...
  • Page 21 191.24 mm Center Distance 5.60" 142.24 mm 5.029" Bottom Ø 0.266" 127.74 mm (6.76 mm) Center Distance Top Ø 0.438" (11.13 mm) 1.50" 38.10 mm Figure 2-8. Mounting Dimensions – MSI-7000HD © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 22 MSI TranSend 7000 Series 6.763" 171.78 mm 6.248" 158.70 mm Center Distance 2.85" 72.39 mm Bottom Ø 0.201" 2.335" (5.11 mm) 59.31 mm Top Ø 0.375" Center Distance (9.53 mm) 1.688" 42.88 mm Figure 2-9. Mounting Dimensions – MSI-7001HD www.RiceLake.com...

  • Page 23: Scalecore Connect

    3.1.2 Install Program To install: 1. Open the Rice Lake website and navigate to the and scroll to the ScaleCore Connect file. MSI software page 2. Download the ScaleCore Connect software to the computer. 3. Extract the zip file to generate the ScaleCore Connect folder.

  • Page 24: Connect Product To Computer

    MSI TranSend 7000 Series 3.1.3 Connect Product to Computer ScaleCore Connect supports interfacing to MSI ScaleCore products from serial (RS-232). The connection depends on the available interfaces of the particular ScaleCore product being used. Please refer to the specific device manual for more details on the interface capabilities.

  • Page 25: Configuration

    Device ID – power source of current product User Defined Model Only 6V Battery and 110V AC (AC and 7-36V) are valid option for the MSI TranSend 7000 series products. Note Figure 3-6. User Defined Model Selections – enter a name for the product User Model Name –...
  • Page 26 MSI TranSend 7000 Series DAC Configuration ScaleCore Connect provides controls for DAC (Digital to Analog) output functions in ScaleCore (mV) products. Controls include calibration and manual control. Figure 3-7. DAC Configuration 1. Select , then Configuration 2. Enter the information for the current product as follows: –...
  • Page 27 Disconnect the battery when not in use. 3. Press to save. New settings will not take affect until power is cycled on the product. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 28 MSI TranSend 7000 Series Meter Features Figure 3-12. Meter Settings 1. Select , then Configuration Meter Features 2. Enter the following parameters: – select a number from 1-5 Focus Load Cell ID – select a number from 1-4 Max Number Load Cell –...

  • Page 29: Load Cells

    – select a number from -100 to 90 Under Load Threshold 3. Press to save. Zero Standard Figure 3-17. Load Cell Zero Settings 1. Select , then Load Cells Zero, Standard © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 30 MSI TranSend 7000 Series 2. Enter the following parameters for the current product: – select Industry, NTEP, OIML or One Unit Standard Mode – select Disabled or Enabled – select Disabled or Enabled Motion Detection – select Disabled or Enabled Zero On Power Up –...
  • Page 31 Maintenance Section 3.3.6 on page 36 for the advanced setup of the maintenance settings. Do not change these settings without consulting Rice Lake Weighing Systems or a local dealer. Note Figure 3-21. Maintenance Settings Calibration Records 1. Select...

  • Page 32: Calibration

    MSI TranSend 7000 Series 3.2.5 Calibration A visual interface for performing the available types of load cell calibration to ensure the ScaleCore product is accurate. The available methods of calibration are: • – enter scale unit, capacity and countby Full Cal Load Cell •...
  • Page 33 Constant Re-Calibration 1. Select , then Calibration Re-C-Cal Load Cell 2. Press 3. Ensure there is no weight on the load cell, then press 4. Enter the constant calibration number, then press © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 34: Inputs / Outputs

    Stream Print String Section 3.3.7 on page 37 for the advanced setup of the stream print string settings. Do not change these settings without consulting Rice Lake Weighing Systems or a local dealer. Note 3.2.7 Monitors Select the view to be used for viewing the data from the product.

  • Page 35: Advanced Setup

    This section is a guide for the advanced setup of the product being read by the ScaleCore Connect program. The following setup instructions are for dealers or service technicians only. Please contact Rice Lake Weigh Systems or a local dealer for assistance before proceeding.

  • Page 36: Administration Menu

    MSI TranSend 7000 Series 3.3.2 Administration Menu Administration allows the setup of User Privileges. Selections are Normal User Mode and Administrator Mode. The current password must be available to complete this setup. Figure 3-27. Administration Menu Selection 1. Select , then .
  • Page 37 – indicates end of a character or of the whole transmission Stop Bits Selections: 1 stop bit (default), 2 stop bits 4. Press to save and return to Communication Setup. 5. Press to return to main page. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 38: Program

    MSI TranSend 7000 Series 3.3.4 Program Program is used to program the application code, acquire a profile from a connected device or clone a profile from another connected product. Figure 3-32. Program Menu Program App Code Figure 3-33. Program App Code 1.
  • Page 39 For example, a user can acquire a profile from Device A and saved it as Profile_A. Then select this Profile_A and Note clone it to Device B. Device B will now behave like Device A. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 40: Device Profiles

    MSI TranSend 7000 Series 3.3.5 Device Profiles A device profile contains the entire settings of a device, such as load cell calibration, communication settings, setpoints, relay, print string, etc. 3.3.6 Maintenance Figure 3-36. Maintenance Settings 1. Select , then Load Cells Maintenance 2.

  • Page 41: Stream Print String

    Stream Type – select interval value from 0-255; example, 20 means 20x50milliSec = 1 second Interval in 50mSec – select the mode for the listener Control Output Mode 4. Press to save. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 42 MSI TranSend 7000 Series Print String The edit print string, allows the mode, interval and composite for a listener to be configured. The mode can be configured to print on command, on stable load, continuous, or it can be disabled. The print composite allows the combination of the configured print formatters to produce a great deal of information in a single print.

  • Page 43: Msi Mv Scale Calibration

    MSI mV Scale Calibration MSI mV Scale Calibration Use the following instructions to calibrate an MSI TranSend 7000 Series receiver unit. The MSI mV Scale Calibration software can be downloaded from the Rice Lake Weighing Systems website. 1. Power on the transmitter and receiver units.
  • Page 44 MSI TranSend 7000 Series 7. Check the Advanced Mode dialogue box to change the upper and lower range percent detected by the SendIt system, if necessary. Figure 4-3. Advanced Mode 8. Press 9. Enter the total scale capacity. Figure 4-4. Scale Capacity 10.
  • Page 45 14. Enter the appropriate weight value in the weight dialogue box. 15. Press . Calibration Complete displays. Figure 4-7. Calibration Complete 16. Press to return to the calibration start display. 17. Calibrate the indicator, see the indicator manual for instructions. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 46: Appendix

    MSI TranSend 7000 Series Appendix Antenna Options To meet FCC licensing rules, only antennas supplied or recommended by Rice Lake Weighing Systems should be used. Note Antenna placement is critical for problem free use of the system. • Select a relatively clear transmission path between the devices. Radio signals travel primarily by line of sight (LOS), obstructions between stations may degrade the system performance.
  • Page 47 For maximum range, an optional 14dBi Gain Yagi Antenna is available. Please contact Rice Lake Weighing Systems for details. Corner Reflector Antenna Corner Reflector antennas are often the best choice for a wall mounted antenna. Rice Lake Weighing Systems offers a 14dBi and a 9dBi Corner Reflector. 14dBi Corner Reflector...

  • Page 48: Specifications

    Circuit Protection: RFI, EMI, ESD protection Warranty: One-year limited warranty Certifications and Approvals NTEP options are available. Contact Rice Lake Weighing Systems for more information. CoC Number: 15-109 Accuracy Class III / III Ln : 10 000 www.RiceLake.com Visit our website...
  • Page 50 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
